ADCAMAT PUMPS AND PUMP TRAPS

packaged equipment

POPS

The ADCAMAT POP (Pressure Operated Pump), fabricated in carbon steel (stainless steel on request), is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

Sub Models

POPS | DN 25 - 80
POPS | DN 25 – 80

MATERIAL

Carbon steel

SIZES

DN 25 ; DN 40 ; DN 50 ; DN 80 x 50

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp

MAX. MOTIVE PRESSURE

10 bar

FLOW RATE CAPACITY

6080 kg/h

POPS | DN 100
POPS | DN 100

MATERIAL

Carbon steel

SIZES

DN 100 x 100

CONNECTIONS

Flanged EN PN16
Threaded ISO 7 Rp

MAX. MOTIVE PRESSURE

10 bar

FLOW RATE CAPACITY

29800 kg/h

packaged equipment

POPS-K

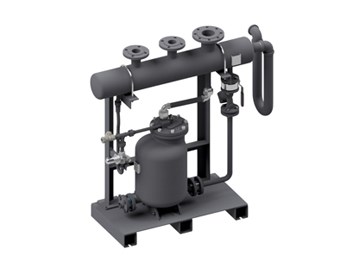

The POPS-K packaged pump units can be used to lift or displace hot condensate and other liquids even in hazardous areas.

Sub Models

POPS-K - Simplex

POPS-K – Simplex

A POPS-K packaged unit is comprised by an ADCAMat pump, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection. Packaged units save time, work and site costs. In addition, they ensure that the installation of the pump is correct in every detail.

POPS-K - Duplex

POPS-K – Duplex

A POPS-KD (Duplex) packaged unit is comprised by two ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection

POPS-K - Triplex

POPS-K – Triplex

A POPS-KT (Triplex) packaged unit is comprised by three ADCAMat pumps in parallel, a vented receiver and all auxiliary items, compactly mounted on a metal frame, piped and ready for connection.

pop-lc

POP-LC

The ADCAMAT POP-LC (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and other liquids to a higher elevation or pressure. The pump starts when there is something to pump and stops when there isn’t. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or gas and can be used for lifting any kind of non-corrosive liquids.

MATERIAL: Carbon and stainless steel

SIZES: DN 25 LC, DN 40 LC, DN 40 x 25 LC

CONNECTIONS: Flanged EN PN16
Threaded ISO 7 Rp
Others on request

MAX. MOTIVE PRESSURE: 10 bar

ppt14

PPT14

The ADCAMat PPT14 automatic pump trap is especially recommended where stall condition may occur due to poor steam trap condensate discharge capacity, caused by temporary insufficient pressure drop. The equipment combines the features of a float steam trap and a pressure operated pump, in one single unit.

MATERIAL: Carbon and stainless steel

SIZES:

11/2” x 1” and 2” x 11/2”
DN 40 x 25 and DN 50 x 40

CONNECTIONS:

Flanged EN PN 16 and ASME Class 150
Threaded ISO 7 Rp

APST

APST

The ADCAMAT APST (Automatic Pump and Steam Trap) is especially recommended where a stall condition may occur due to poor steam trap condensate discharge, caused by temporary insufficient differential pressure. The equipment has the features of a float steam trap combined with a pressure operated pump in the same unit.

MATERIAL: Carbon and stainless steel

SIZES:

DN 40 x 40 – DN 50 x 50; 11/2 x 11/2”; 2” x 2”

CONNECTIONS:

Flanged EN PN16
Threaded ISO 7 Rp
Others on request

MAX. MOTIVE PRESSURE: 10 bar

FLOW RATE CAPACITY: 3910 kg/h

RATING: PN16


PPA312

The ADCAMAT PPA series is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or gas and can be used for lifting any kind of non-corrosive liquids.

MATERIAL: Carbon steel

SIZES: DN 50 x 50 – DN 80 x 50

CONNECTIONS:

Flanged EN PN16
Flanged ASME Class 150
Special flanges on request

MAX. ALLOWABLE PRESSURE: 16 bar

MAX. MOTIVE PRESSURE: 10 bar

MAX. ALLOWABLE TEMPERATURE: 250 ºC


PPA14

The ADCAMAT PPA (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

MATERIAL: Carbon steel

SIZES: DN 80 x 50

CONNECTIONS:

Flanged EN PN16
Flanged ASME Class 150
Threaded ISO 7 Rp

MAX. MOTIVE PRESSURE: 10 bar

FLOW RATE CAPACITY: 6290 kg/h

adcamat pumps and pump traps

PPO14

The ADCAMAT PPO (Pressure Operated Pump) is recommended in the transfer of high-temperature liquids such as condensate, oils and others, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated by steam, compressed air or other gases, and can be used for lifting any kind of non-corrosive liquids.

MATERIAL: Carbon and stainless steel

SIZES: DN 25, DN 40 and DN 50

CONNECTIONS:

Flanged EN PN16
Threaded ISO 7 Rp

MAX. ALLOWABLE PRESSURE: 16 bar

MAX. MOTIVE PRESSURE: 10 bar

MAX. RELATED TEMPERATURE: 250 ºC

RATING: PN16
