AIR AND GAS FLOAT TRAPS

pipeline ancillaries

SG IRON

FA line of air and gas vents for liquid systems, manufactured in SG iron and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Sub Models

FA25.1
FA25.1

The FA25.1 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

SG iron

SIZES

1” ; DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1/-2 PN 16
Flanged ASME B16.42/B16.5 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FA25.3
FA25.3

The FA25.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

SG iron

SIZES

11/2” to 2”; DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-2 PN 16
Flanged ASME B16.42 Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

pipeline ancillaries
CARBON STEEL

FA line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Sub Models

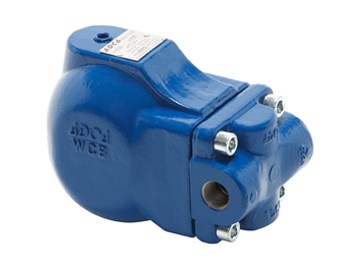

FA20
FA20

The FA20 compressed air float trap series are specially designed for draining water from high pressure compressed air and gas lines. Usual applications include aftercoolers, separators and compressed air and gas mains. An air balance pipe must be fitted, to allow the air trapped in the FA20 body to escape, avoiding obstructing the condensate flow.

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN40 or ASME Class 150 or 300
Special flanges upon request

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

200 ºC

  •
FA35.1
FA35.1

The FA35.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Carbon steel

SIZES

1” ; DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FA35.3
FA35.3

The FA35.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Carbon steel

SIZES

11/2” to 2”; DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

pipeline ancillaries
STAINLESS STEEL

FA line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Sub Models

FA16SS
FA16SS

The FA16SS series are fully automatic ball float traps, extremely compact in dimension and light in weight, specially designed for draining water from compressed air lines. Usual applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

180 ºC

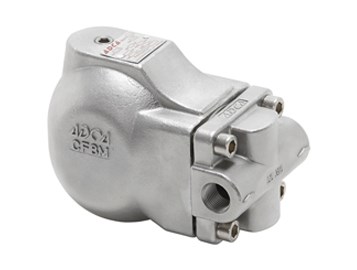

FA21SS
FA21SS

The FA21SS compressed air float trap series are specially designed for draining water from high pressure compressed air and gas lines. Usual applications include aftercoolers, separators and compressed air and gas mains. An air balance pipe must be fitted, to allow the air trapped in the FA21SS body to escape, avoiding obstructing the condensate flow.

MATERIAL

Stainless steel

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN16 or PN40 or ASME Class 150 or 300
Special flanges upon request

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

200 ºC

FA45.1
FA45.1

The FA45.1 is a series of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

1” ; DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FA45.3
FA45.3

The FA45.3 is a range of fully automatic ball float traps specially designed for condensate drainage in compressed air and gas systems. Typical applications include aftercoolers, separators and compressed air mains.

MATERIAL

Stainless steel

SIZES

11/2” to 2”; DN 40 to DN 50

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld ASME B16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

pipeline ancillaries
CAD

The CAD – Compressed Air Automatic Drain Valve consists of a solid-state timer coupled to a solenoid valve. The CAD is specially designed for automatic draining of filters, separators, aftercoolers, dryers, receivers, drip legs and other compressed air system components where condensate and contaminants collect. The draining interval and discharge time can be adjusted according to the requirements.

SIZES: 3/8” and 1/2

CONNECTIONS: Threaded ISO 7 Rp

MAX. OPERATING PRESSURE: 16 bar
(40 or 80 bar on request)

MAX. OPERATING TEMPERATURE: 55 ºC
