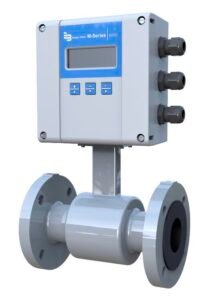

badger meter Electromagnetic Flowmeters M2000

Badger Meter Electromagnetic Flowmeter M2000

In municipal and industrial environments around the world, there is an increasing need to monitor more flow—and often with more speed and accuracy. A growing number of end users rely on electromagnetic flow meter technology to meet these and other crucial application challenges.

Combining a general-purpose detector with an amplifier, the Badger Meter Electromagnetic Flowmeters ModMAG M-Series® M2000 Electromagnetic Flow Meter features an advanced, user-friendly design and is built for field verification testing with the use of a simple, handheld device. The M2000 is manufactured under strict quality standards and employs sophisticated, microprocessor-based signal conversion with accuracies of ±0.2 percent. The wide selection of liner and electrode materials helps ensure maximum compatibility and minimum maintenance over a long operating period.

Size
1/4…54 in.

Temperature Range
Up to 302 °F

Flow Range
0.01…272,255 gpm
0.10…39.4 ft/sec

Accuracy
±0.2 %

Industries
  • Building Automation / HVAC
  • Facility or Property Management
  • Irrigation
  • Oil & Gas
  • Process or Industrial
  • Water & Wastewater Treatment
  • Water Distribution

FEATURES

  • Rating: general purpose detection
  • Power supply: 10…36V DC, 85…265V AC
  • Rotating cover
  • AMR/AMI- and SCADA-ready outputs

Extra Large ModMAG M-Series Meters

This picture shows two large ModMAG M-Series® meters, 54 and 60 inches in diameter were designed for a project in which the California Department of Water Resources (DWR) would increase their water distribution capacity and reliability, allowing them to meet expanding fresh water demands in several southern California counties. This picture was taken at a test facility where the meters met accuracy standards set by the California DWR at flow ranges ranging from 4500 to 80,000 gallons per minute.

Man standing next to large ModMAG M-Series meter



ModMAG M-Series Extended Lay Lengths

This picture shows an example of a ModMAG M-Series® meter with an exceptionally long lay length. There were two meters installed at this site with lay lengths of 55 inches and 61 inches. The meters were measuring potable water at the Ries Water Supply Company in Wört, Southern Germany. The extended lay lengths required for this installation provided Badger Meter an opportunity to offer this customer a solution where other meter suppliers could not.

Installation of ModMAG M-Series meter

M-Series Field Verification Device

M-Series Field Verification Device

Designed for use with the M2000 and M5000 mag meters, this handheld device allows you to perform a series of field verification and analytical performance tests on site, in less than 20 minutes.

  • Determines if the meter amplifier is within one percent of the original factory calibration
  • Verifies the functionality of all meter inputs and outputs
  • Measures electrode resistance and integrity
  • Measures coil resistance and integrity
  • Measures coil insulation resistance
  • Measures current and frequency output
  • Evaluates the signal processing functionality
  • Provides pass/fail results to aid in troubleshooting

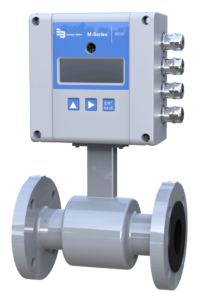

Badger Meter Electromagnetic Flowmeter M5000

Whether it’s improving accuracy or decreasing system maintenance, instrumentation manufacturers continue to seek new technologies to advance the design of electromagnetic flow meters.

For general-purpose detection in a standalone package, the Badger Meter Electromagnetic Flowmeter ModMAG M-Series® M5000 Electromagnetic Flow Meter is the ideal solution for remote applications. The meter provides accurate measurements designed for potable water apps. The M5000 features a user-friendly design and is conveniently powered by a battery. It delivers up to 10 years of reliable performance and is built for field verification testing with the use of a simple, handheld device.

Size
1/2…24 in.

Temperature Range
Up to 302 °F

Flow Range
0.08…44,816 gpm
0.1…32.8 ft/sec

Accuracy
±0.50 %

Industries
Building Automation / HVAC
Facility or Property Management
Process or Industrial
Water Distribution

FEATURES

  • Rating: general purpose
  • Power supply: operational
  • NSF approved models

Extra Large ModMAG M-Series Meters

This picture shows two large ModMAG M-Series® meters, 54 and 60 inches in diameter were designed for a project in which the California Department of Water Resources (DWR) would increase their water distribution capacity and reliability, allowing them to meet expanding fresh water demands in several southern California counties. This picture was taken at a test facility where the meters met accuracy standards set by the California DWR at flow ranges ranging from 4500 to 80,000 gallons per minute.

Man standing next to large ModMAG M-Series meter



ModMAG M-Series Extended Lay Lengths

This picture shows an example of a ModMAG M-Series® meter with an exceptionally long lay length. There were two meters installed at this site with lay lengths of 55 inches and 61 inches. The meters were measuring potable water at the Ries Water Supply Company in Wört, Southern Germany. The extended lay lengths required for this installation provided Badger Meter an opportunity to offer this customer a solution where other meter suppliers could not.

Installation of ModMAG M-Series meter

M-Series Field Verification Device

M-Series Field Verification Device

Designed for use with the M2000 and M5000 mag meters, this handheld device allows you to perform a series of field verification and analytical performance tests on site, in less than 20 minutes.

  • Determines if the meter amplifier is within one percent of the original factory calibration
  • Verifies the functionality of all meter inputs and outputs
  • Measures electrode resistance and integrity
  • Measures coil resistance and integrity
  • Measures coil insulation resistance
  • Measures current and frequency output
  • Evaluates the signal processing functionality
  • Provides pass/fail results to aid in troubleshooting

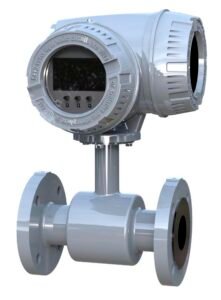

M3000 Electromagnetic Flow Meter

Badger Meter Electromagnetic Flowmeter M3000

End users are faced with critical questions when choosing a flow meter for liquid measurement applications. In many cases, electromagnetic flow meters are the best choice. Inherently linear by design, these meters utilize magnetic fields to accurately measure flow in all kinds of conductive fluids.

The innovative design of the ModMAG M-Series® M3000 Electromagnetic Flow Meter represents the next generation of mag meter technology. Intended for a variety of industrial and municipal applications, the M3000 is virtually unaffected by density, temperature, pressure, and viscosity changes, and provides an accurate and reliable long-term metering solution. This meter is approved for Class 1, Division 2 environments.

Size
1/4…24 in.

Temperature Range
Up to 248 °F

Flow Range
0.01…53,779 gpm
0.10…39.4 ft/sec

Pressure Range
Up to 150 PSI

Accuracy
±0.25 %

FEATURES

  • Rating: hazardous locations
  • FM approved for Class 1, Division 2 environments
  • Power supply: 85…265V AC / 24V DC
  • CSA certified
Application Examples

Food and Beverage
Pharmaceutical
Reclaimed Water

Industries
Facility or Property Management
Oil & Gas
Petrochemical, Refining & Chemical Metering
Process or Industrial
Water & Wastewater Treatment
Water Distribution

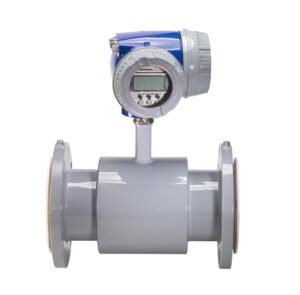

Badger Meter Electromagnetic Flowmeter M4000

Electromagnetic flow meters are recognized as the leading choice for recording the volume flow of electrically conductive liquids in a wide range of industries, including chemical, pharmaceutical, and water/wastewater.

The ModMAG M-Series® M4000 Electromagnetic Flow Meter is the right choice of mag meter—regardless of the industry or application. Virtually unaffected by density, temperature, pressure, and viscosity changes, the M4000 provides an accurate and reliable long-term metering solution. It features an intrinsically safe design approved for Class 1, Division 1 environments. The meter incorporates the latest developments in microprocessor signal conditioning and provides an accuracy of ± 0.25%.

Size
1/4…12 in.

Temperature Range
Up to 248 °F

Flow Range
0.01…13,445 gpm

Pressure Range
Up to 150 PSI

Accuracy
±0.25 %

FEATURES

  • Rating: hazardous locations
  • FM approved for Class 1, Division 1 environments
  • NSF approved models
  • CSA certified
Application Examples

Food and Beverage
Pharmaceutical
Reclaimed Water

Industries
Facility or Property Management
Petrochemical, Refining & Chemical Metering
Process or Industrial
Water & Wastewater Treatment
Water Distribution

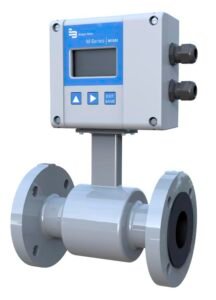

badger meter M1000 Electromagnetic Flow Meter

Badger Meter Electromagnetic Flowmeter M1000

Industrial organizations require flow measurement devices that are able to meet the demanding requirements for accurate metering of process fluids, but are equally at home in less challenging applications. Electromagnetic flow meters are beneficial in that they can measure fluids bi-directionally, are effective for varying flow rates and are immune to changes in process variables.

The ModMAG M-Series® M1000 Electromagnetic Flow Meter has been specifically designed for industrial water/wastewater, machinery plants, vehicles, and batching process applications. The meter combines a general-purpose detector with an amplifier representing the latest innovation in mag meter signal processing. It features a user-friendly, streamlined design with rugged electronics for truck-mounted installations.

Size
1/4…8 in.

Temperature Range
Up to 302 °F

Flow Range
0.01…6278 gpm
0.1…39.4 ft/sec

Pressure Range
Up to 232 PSI

Accuracy
±0.3 %

FEATURES

  • Rating: general purpose detection
  • Power supply: 92…275V AC, 9…36V DC
  • NSF approved models available
Application Examples

​Batching Process
Machinery Plants
Truck Mounted

Industries
Concrete Production
Process or Industrial
Water & Wastewater Treatment

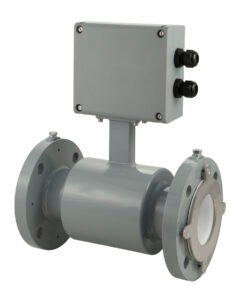

Badger Meter Electromagnetic Flowmeter M7600

Electromagnetic flow meters are among today’s most popular meter designs. They are obstructionless, cost-effective for a variety of fluids, and provide highly accurate volumetric flow measurement.

The ModMAG M-Series® M7600 Electromagnetic Flow Meter combines the most advanced magnetic flow metering technology with a simple, yet robust output for batching systems found in industrial applications. Having a non-obstructive flow-through pipe design allows particulates to pass through the meter body. The M7600 features an intuitive PC interface used for selecting the scale factor, unit of measure and pulses per unit, making it the most straightforward metering system available in the industry.

Size
1/2…4 in.

Temperature Range
Up to 212 °F

Flow Range
0.14…1320 gpm

Pressure Range
Up to 232 PSI

Accuracy
±0.5 %

FEATURES

  • Open cross-section design: no pressure loss, no moving parts, no maintenance required
  • Unaffected by the presence of most suspended solids in the liquid
  • Pulsed DC magnetic field for maximum zero point stability
  • Two standard pulse outputs: solid-state relay and open collector output, compatible with most batch controllers and totalizer displays
  • Programmable scale factor
  • Long life, corrosion-resistant liner (PTFE)
Application Examples

Industrial Batch

Industries
Concrete Production
Process or Industrial
