Badger-Meter Oval Gear Flowmeter

Industrial Oval Gear (IOG)

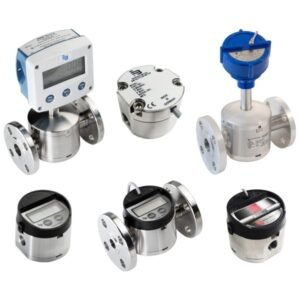

badger-meter - Industrial Oval Gear (IOG) (low-res)

Industrial Oval Gear (IOG) Meter

The Industrial Oval Gear Meter, Model IOG is a modular flow meter design, economical yet highly accurate and rugged. The model IOG is designed for a variety of chemical applications including petroleum based fluids, water solutions and any other liquid compatible with the materials of construction.



  • Size
    1/4…3 in.
  • Temperature Range
    -22…240 °F
  • Flow Range
    0.067…185 gpm
  • Pressure Range
    Up to 3000 PSI



Economical yet highly accurate and rugged.

Whether the liquid being measured is very viscous or highly corrosive, the oval gear meter can handle it.

  • Flexibility of installation options (vertical installation or horizontal installation)
  • Minimum number of wearable parts for long product life and easy field servicing
  • Wide range of instrumentation available for control system interfacing
  • Compact size, high accuracy and repeatability
  • Automotive Fluid Dispensing
  • Municipal Water Treatment & Distribution
  • Oil & Gas
  • Process & General Industry
  • Refining, Chemical & Petrochemical
  • Test Equipment & Services

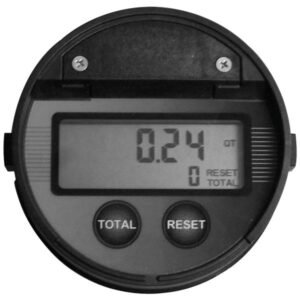

Automotive Oval Gear

Automotive Oval Gear in-line mechanical flow meters use oval gear technology to accurately measure fluid with electronic field serviceable/replaceable registers. The transmitter style register provides a reliable interface to many inventory management systems. These are special meters designed for brake fluid, wiper fluid and antifreeze applications.

Oval Gear Flow Meters

Automotive Oval Gear in-line mechanical flow meters use oval gear technology to accurately measure fluids with electronic field serviceable and replaceable registers.



  • Size
    0.5…1 in.
  • Temperature Range
    -4…140 °F
  • Flow Range
    0.25…8 gpm
  • Pressure Range
    Up to 1500 PSI



Accurate Measurement. Reliable Interface.

Automotive Oval Gear meters have a compact footprint and are specifically designed to measure fluids within brake fluid, wiper fluid and antifreeze applications.

  • Durable Design. Built with a rugged, corrosion-resistant plastic enclosure and humidity- and moisture-resistant transmitter for durability.
  • Application Flexibility. Compatible with most flow controllers and counters with scaling capabilities in applications, including automated motor oil batching, antifreeze dispensing and other systems.
  • Minimal Maintenance. Does not require an external power source and only contains two parts, greatly reducing maintenance costs.
  • Automotive Fluid Dispensing

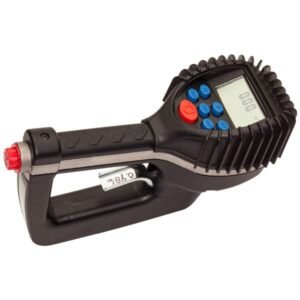

Badger-meter automotive oval gear - Electronic Preset Series (low res)

Electronic Preset Meter

The Automotive Oval Gear Electronic Preset meter offers a superior, rugged, shock-resistant design for demanding environments.



  • Temperature Range
    20…120 °F
  • Flow Range
    0.25…10 gpm
  • Pressure Range
    Up to 1000 PSI
  • Accuracy
    ±0.5% (oils) | ±1.5% (antifreeze)



Superior Design. Rugged Build.

The Automotive Oval Gear Electronic Preset meter is a programmable electronic register that has different options to meet various operational requirements.

  • Ease of Operation. Features a large, easy-to-read LCD display and lightweight build, and provides inventory control for ease of operation.
  • Long Battery Life. Provides a minimum of 20,000 cycles on one battery life. Indicates when the battery is low, has a safety lockout feature and allows users to save settings if power is lost.
  • Application Versatility. Provides measurements of liters, quarts, pints and gallons within brake fluid, wiper fluid and antifreeze applications.
  • Automotive Fluid Dispensing

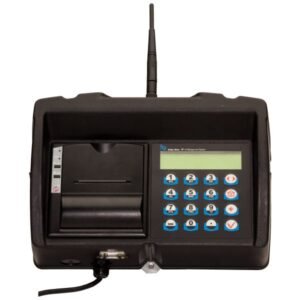

Fluid Management System

The Automotive Oval Gear Fluid Management System is designed to control and monitor the consumption and inventory balances of automotive fluid products.



  • Temperature Range
    20…120 °F
  • Flow Range
    0.25…10 gpm
  • Power Requirements
    120V AC 50/60 Hz



Monitor Consumption. Balance Inventory.

The Automotive Oval Gear Fluid Management System can control up to 30 meters and track 8 different fluids and tanks.

  • Low Installation Cost. Designed to be easily integrated into processes to ensure minimal installation and programming costs.
  • Application Control. Can control up to 30 meters and track 8 different fluids and tanks, sending and receiving data typically up to 300 feet in a service facility installation.
  • Monitor Operations. Control and monitor the consumption and inventory balances of automotive fluid products, including in fleet maintenance shops, industrial assembly, automotive dealerships and other applications.
  • Automotive Fluid Dispensing
