Engineered Packages For Instrument Air And Nitrogen Generation

PACKAGE FOR OIL&GAS ONSHORE

blutek Instrument Air And Nitrogen Generation- oil-free-dry-screw-compressors

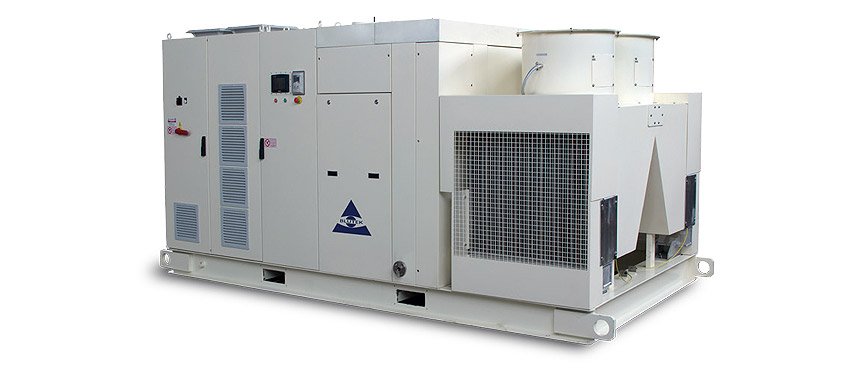

Engineered compressors for onshore

Tailor made compressors for heavy duty onshore applications, designed for the worst environment conditions such as desert or artic areas.

The design includes high quality material for piping, coolers, instrumentation, intake filters, silencers and proper coating and painting systems.

Compressor may be equipped with local control panel for single/multi units management, PLC, HMI, oil circuit process instrumentation with SS tubing and isolating valve.

Range : 22 – 500 kW
Pressure range : 4 – 16 barg
Type: Rotary screw
Lubrication: oil-free dry / oil-injected
Speed: fixed / variable

AVAILABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and Local Standards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED 97/23 CE
    • SHELL DEP
blutek instrument air and nitrogen generation - instrument-air-skids-2014

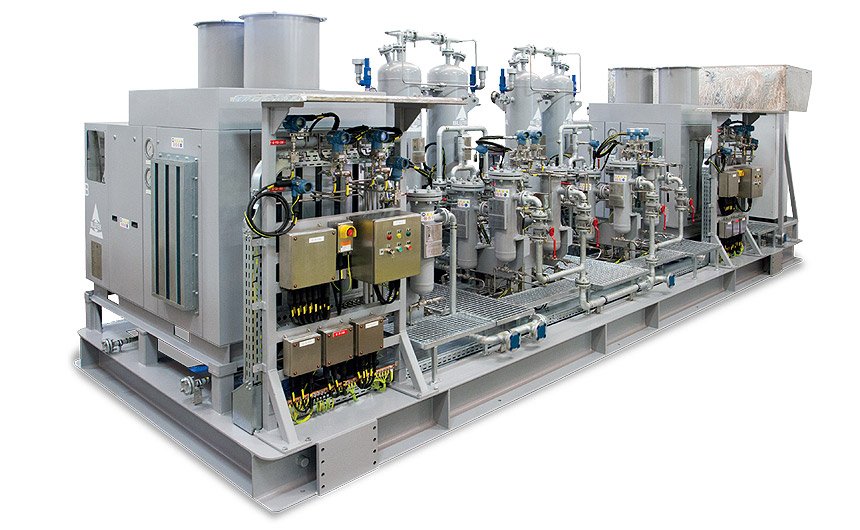

Instrument air skids packages

Totally engineered skid mounted turnkey instrument air package with compressors, dryers, filtration system, air receivers, nitrogen generators, manufactured in compliance with the main International Standards suitable for the application in the worst environment conditions.

Layout: skid with baseframe and 4 points for lifting, containerized execution with air conditioning system or winterization.

ENGINEERED SKID PACKAGES MAY INCLUDE:

  • Screw compressors: lubricated/oil-free dry – water/air cooled – fixed/variable speed, with electric LV-MV motor/diesel engine
  • Dryers: Absorption, heatless/heated/HOC / membrane / refrigerated
  • Nitrogen generators: membrane / PSA
  • Air receivers
  • Dedicated lifting equipment

SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and Local Standards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
blutek instrument air and nitrogen generation- mobile-instrument-air-package

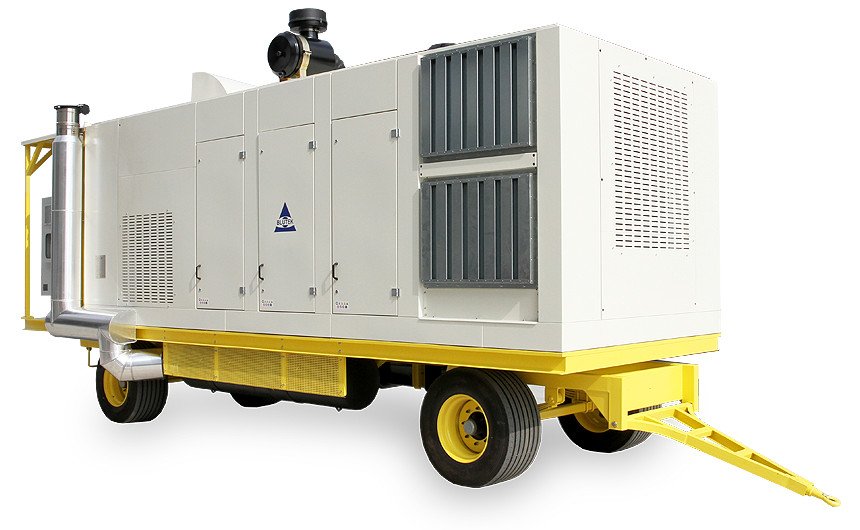

Mobile instrument air package

Tailor made mobile instrument air compressor, ready to use as a black start system, with diesel engine and built-in electrical generator.

Range : 22 – 500 kW
Pressure range : 4 – 16 barg
Type: Rotary screw
Lubrication: oil-injected / oil-free dry


SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and Local Standards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
blutek instrument air and nitrogen generation - dessicant-dryer-skids

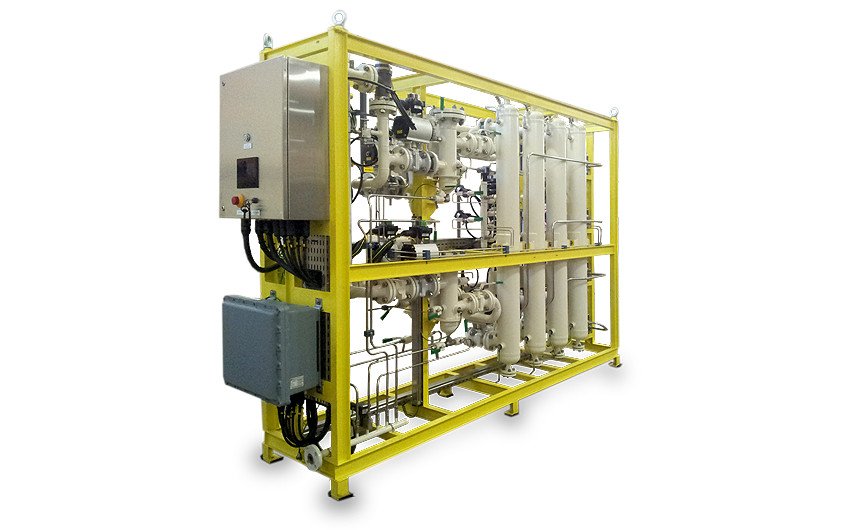

Dessicant dryer skids

Skid mounted dessicant dryer designed and manufactured in compliance with the main International Standards suitable for the application in the worst environment conditions.

The dryer is sized using the max load at the max inlet temperature. All the dryer are filled with a high quality molecular sieve.

Layout: skid with baseframe and 4 points for lifting, containerized execution with air conditioning system or winterization, assembled on truck for mobile application.

Type of dryers: adsorption, heatless / heated, heat of compression (HOC), membrane and refrigerated
Capacity : 10 – 8.000 m3/h
Dew point : -5 at -70 ° ctd


SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and Local Standards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
blutek instrument air and nitrogen generation - nitrogen-generation-skids-2014

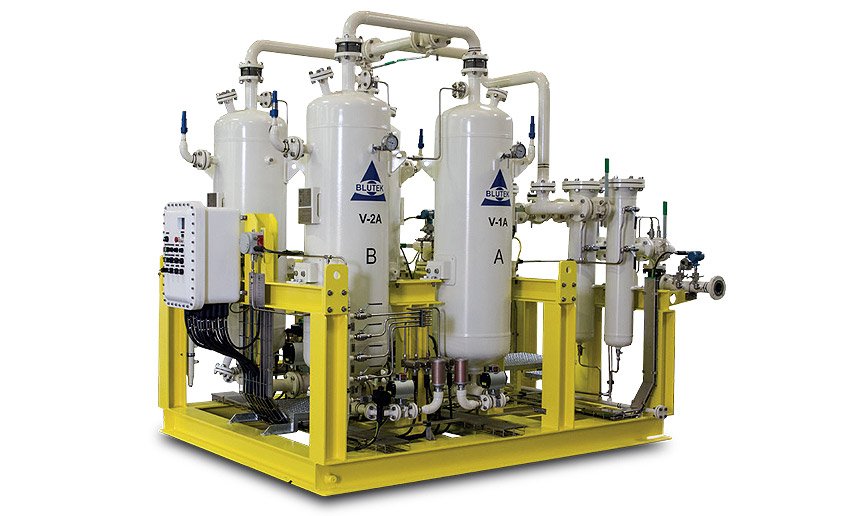

Nitrogen generation skids

Skid mounted nitrogen generation stations designed and manufactured in compliance with the main International Standards suitable for the application in the worst environment conditions.

Layout: skid with baseframe and 4 points for lifting, containerized execution with air conditioning system or winterization, assembled on truck for mobile application.

Type: Membrane / PSA
N2 flow capacity : 10 – 3.000 m3/min
N2 Purity : 95 – 99.9 %


SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and LocalStandards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
blutek black-start-instrument-compressors

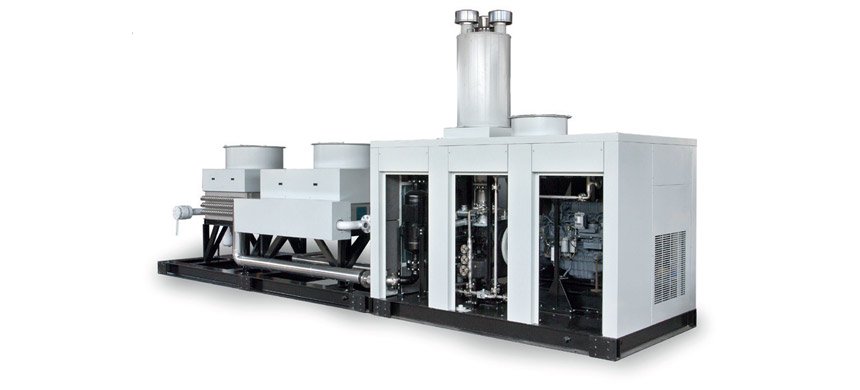

Black start instrument compressors

Tailor made black start compressors with diesel engine. The package is provided with starting air system, hydraulic starting system, diesel day tank.
Compressors are designed for the purpose.

Range : 22 – 500 kW
Pressure range : 4 – 16 barg
Type: rotary screw
Lubrication: oil-injected / oil-free dry


SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and LocalStandards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
