TWO-WAY CONTROL VALVES

Valsteam two-way control valves - pv25-series

PV25

The PV25 control valves are single seated, two-way body constructed with in-line straight connections. The PA pneumatic actuator is rubber diaphragm and multi-springs. Its action can be DA – direct action (air to close) or reverse action (air to open). The PV25 valves have been designed to assure accurate control in any process condition. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other noncorrosive fluids.

Sub Models

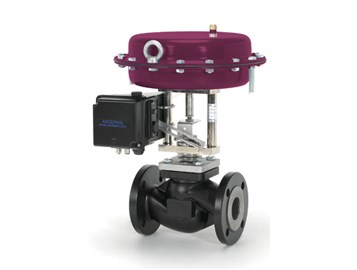

PV25 | EN



PV25 | EN
MATERIAL

SG iron, carbon steel or stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 40

FLOW RATE COEFFICIENTS

Kvs 3,8 to 136,7

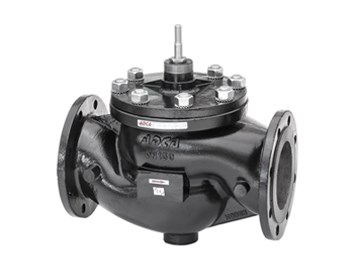

V25 | EN
V25 | EN

MATERIAL

SG iron, carbon steel or stainless steel

SIZES

DN 125 to DN 200

CONNECTIONS

Flanged EN PN 16 or PN 40

FLOW RATE COEFFICIENTS

Kvs 121 to 590

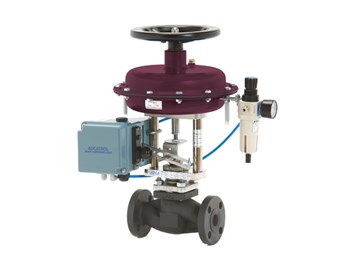

PV25 | ASME
PV25 | ASME

MATERIAL

Carbon steel

SIZES

1/2” to 6”

CONNECTIONS

Flanged ASME Class 150 or 300

FLOW RATE COEFFICIENTS

Kvs 3,8 to 316,1

PV25 | Threaded
PV25 | Threaded

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

FLOW RATE COEFFICIENTS

Kvs 3,8 to 9,4

RATING

PN 40

PV25 | ON - OFF
PV25 | ON – OFF

MATERIAL

SG iron or stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN 16

FLOW RATE COEFFICIENTS

Kvs 3,8 to 136,7

valsteam two-way control valves - ppv25-series

PPV25

The PPV25 on/off valves are single seated, two-way body constructed with in-line straight connections. The PPI pneumatic actuators are of the piston type. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other fluids.

Sub Models

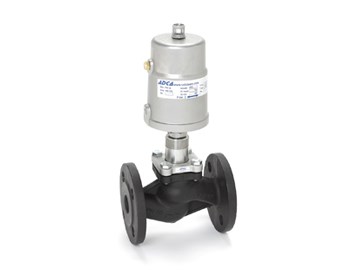

PPV25 Pneumatic on-off valve
PPV25 Pneumatic on-off valve

MATERIAL

SG iron or stainless steel

SIZES

DN 15 to DN 50

CONNECTIONS

Flanged EN PN 16

FLOW RATE COEFFICIENTS

Kvs 5,2 to 43

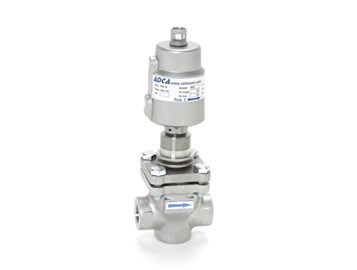

PPV25I Pneumatic on-off valve
PPV25I Pneumatic on-off valve

MATERIAL

Stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

FLOW RATE COEFFICIENTS

Kvs 8 to 25

RATING

PN 25

valsteam two-way control valves - pav21

PAV21 Pneumatic angle type interception valve

The PAV series angle seat interception valves are designed for use with steam, gases and other fluids used in the process industry. They are an efficient solution to fluid interception in applications where flexibility and affordable cost are required.

MATERIAL

Stainless steel

SIZES

1/2” to 2”

CONNECTIONS

Female threaded ISO 7 Rp

FLOW RATE COEFFICIENTS

Kvs 4,8 to 52,6

RATING

PN 16

valsteam two-way control valves - pv40s

PV40

The PV40 control valves are single seated, two-way body constructed with in-line straight connections. The PA pneumatic actuator is rubber diaphragm and multi-springs. Its action can be DA – direct action (air to close) or RA – reverse action (air to open). The PV40 valves have been designed to ensure accurate control in any process condition. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other non-corrosive fluids.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 15 to DN 50

CONNECTIONS

Flanged EN PN 40
Flanged ASME Class 150 or 300

FLOW RATE COEFFICIENTS

Kvs 3,8 to 40,1

valsteam two-way control valves - pwv40i

PWV40I

The PWV40I control valves are single seated, two-way body constructed with in-line straight connections. The PA pneumatic actuator is composed of a rubber diaphragm and multi springs. Its action can be DA – direct action (air to close) or RA – reverse action (air to open). The PWV40I valves have been designed to assure accurate control in any process condition. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other non-corrosive fluids.

MATERIAL

Stainless steel

SIZES

DN 15 to DN 25

CONNECTIONS

Sandwiched between flanges
as per EN 1092-1 PN 16 or PN 40

FLOW RATE COEFFICIENTS

Kvs 1,7 to 5,5
