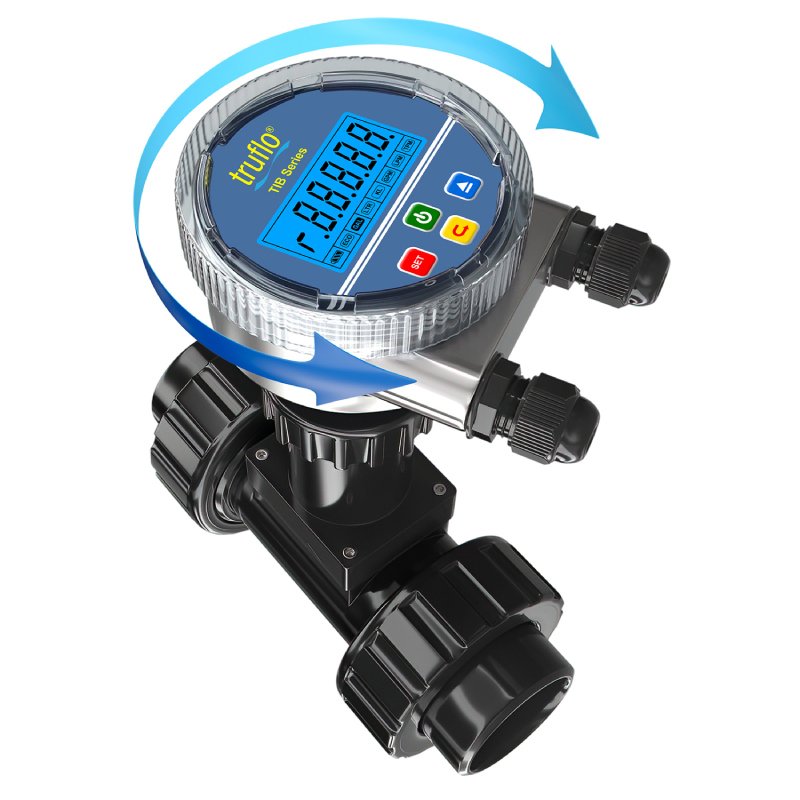

TIB Insertion Paddle Wheel Flow Meter

The TIB Series battery operated paddle wheel flow meter has been designed for tough industrial applications. The TIB series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIB series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIB insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

  • Battery Operated Back-lit LCD Display
  • Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Retrofits into Signet® Fittings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tip-insertion-paddle-wheel-flow-meter

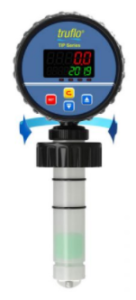

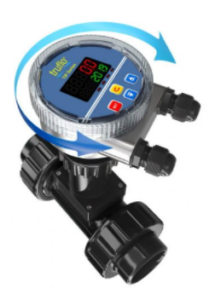

TIP Insertion Paddle Wheel Flow Meter

The TIP Series digital paddle wheel flow meter has been designed for tough industrial applications. The TIP series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a frequency pulse output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIP series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIP insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

  • Pulse Output | RS485 (opt)
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Retrofits into Signet® Fittings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tim-insertion-paddle-wheel-flow-meter

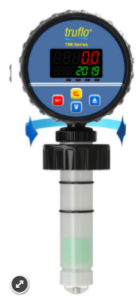

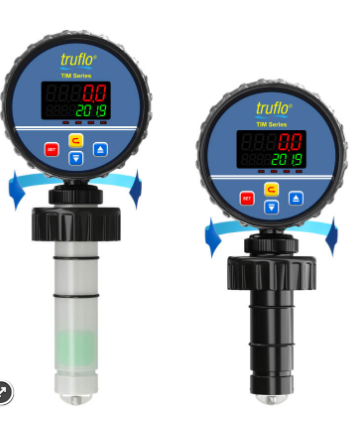

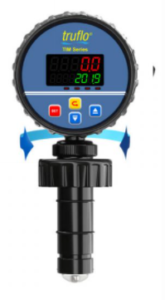

TIM Insertion Paddle Wheel Flow Meter

The TIM Series digital paddle wheel flow meter has been designed for tough industrial applications. The TIM series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insetion flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIM liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIM insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

  • 4-20mA Output
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Retrofits into Signet® Fittings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tiw-insertion-paddle-wheel-flow-meter

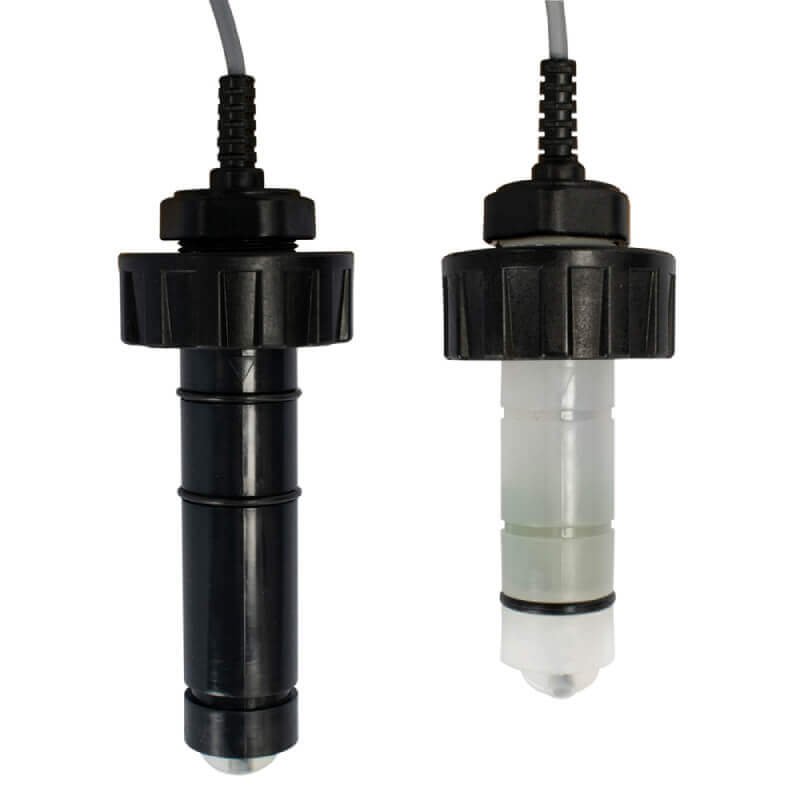

TIW Insertion Paddle Wheel Flow Meter

The TIW Series paddle wheel flow meter has been designed for tough industrial applications. The TIW series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter is a blind unit that provides a frequency pulse output and is available with a Hirschmann DIN quick disconnect or a flying lead. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIW liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIW insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

  • Life-Time Warranty on Paddle Assembly
  • Pulse Output
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • DIN | Flying Lead
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Retrofits into Signet® Fittings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tir-insertion-paddle-wheel-flow-meter

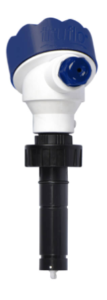

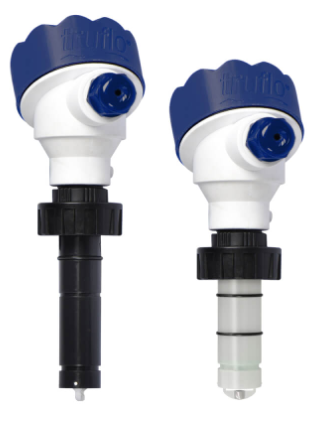

TIR Insertion Paddle Wheel Flow Meter

The TIR Series paddle wheel flow meter has been designed for tough industrial applications. The TIR series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter is a blind unit that provides a 4-20mA output and is internally equipped with a mini LED screen that allows the user to easily set their 4 and 20mA set points through the use of push-buttons. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIR liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TIR insertion paddle wheel flow meter is available in PVC, PP and PVDF. The flow sensors can be installed into pipe sizes ½ – 24” using our line of comprehensive custom fittings. Icon’s complete line of insertion paddle wheel flow meters will also retrofit into any Signet® style fitting.

  • Life-Time Warranty on Paddle Assembly
  • Pulse | 4-20mA
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • Size Range: 1/2 – 24″
  • Retrofits into Signet® Fittings
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
