Magnetic Testing

novotest Steel Structure Analyzer NOVOTEST KRC-M2 (Coercive Force Meter)

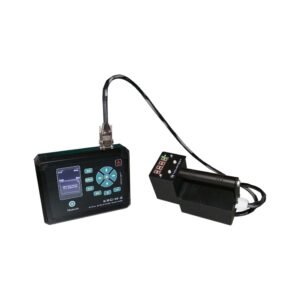

Steel Structure Analyzer NOVOTEST KRC-M2 (Coercive Force Meter)

Steel Structure Analyzer NOVOTEST KRC-M2 is designed for measuring coercive force of metal products in accordance with IEC 60404-7 and is used for non-destructive testing of chemical-thermal, thermal and thermomechanical treatments, evaluation of mechanical properties and residual stresses.

Steel structure analyzer is used for determination of mechanical properties, and measurement the hardness of metal products, as well as measurements of products of ferromagnetic alloys in the presence of correlations between the studied parameters. In addition, the device is used for testing the surface layer of ferromagnetic material for grading the metal in steel grades.

KRC-M2 has an electromagnet transmitter with integrated Hall sensor and removable pole tips.

The operation principle of the device consist of following: initially is performed a magnetization of area of the tested object and after that its subsequent progressive demagnetization by the increasing of the field. Next, it is the fixation of the intensity of magnetic field in accordance with the coercive force of material of tested object and measurement the amplitude of signals from the Hall sensor.

The main area of using the Steel Structure Analyzer NOVOTEST KRC-M2 – is to analyse the stress-strain state and residual life of pipelines, elevators, cranes and lifts, pressure vessels, steel cables of bridges also it used in engineering and metallurgical industries.

  • The probe with optional display and buttons control of the main functions
  • Averaging 99 results, with the possibility to use the predictive average
  • Memory: up to 100,000 measurements with the ability to view them on the screen of the device, or transfer to PC
  • Real-time clock – each measurement is saved with the date and time
  • Ability to enter additional scales and additional materials for calibration
  • Calibration mode of basic and additional scales
  • Adjust the brightness of the display, audio, language selection
  • Ability to save backups calibrations on the internal memory of the device
  • Smart sensors with built-in memory of calibrations
Standard modesMeasurement of coercive force
Current measurement
Code measurement (units)
Additional scale for calibration
 The measuring range of the coercive force, А/сm (А/m) 1-40,0  (100-4000)
 Measurement cycle, seconds, not more 5
 Magnetize pulse
 Additional scale for calibration 7
 PowerLi-Ion battery
 Battery life, h, not less 8
 Dimensions of the electronic unit, mm 270x230x70
 Dimensions of the probe, mm 200x170x70
  • Charger
  • Cable for PC connection
  • Case (bag)
  • Electronic unit
  • Probe
  • Charger
  • Cable for PC connection
  • Software for PC
  • Operating manual
  • Case (bag)
novotest Magnetometer NOVOTEST MF-1M

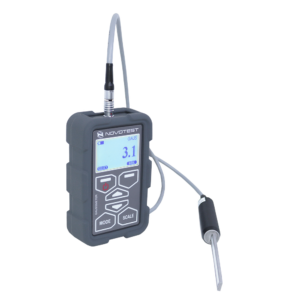

Magnetometer NOVOTEST MF-1M

Magnetometer NOVOTEST MF-1M is designed to control the residual magnetization and study the magnetic heterogeneity of the surface of ferromagnetic products, to control the level of residual magnetization before welding gas and oil pipes, to control the induction of static (DC), alternating (AC) and pulsed magnetic fields generated by various magnetic and electromagnetic devices, such as magnetic particle flaw detectors, magnetic tables and chucks of grinding machines, demagnetizing devices, permanent magnets etc.

Main advantages and functions of Magnetometer NOVOTEST MF-1M:

STATIC (DC) MAGNETIC FIELD

The main purpose of the device is to measure the parameters of a static magnetic field – intensity (induction), as well as its gradient. Using a transverse probe, the user can measure the residual magnetization of the material after magnetic particle inspection, the level of the magnetic component of industrial interference, as well as the magnetic induction of a variety of devices, components and products.

ALTERNATING (AC) AND PULSED MAGNETIC FIELDS

The device allows user to measure the parameters of an alternating magnetic field – values of intensity (induction), as well as the parameters of single pulses of a magnetic field – peak values of intensity (induction).

UNITS OF MEASUREMENT

The magnetometer can display the measured value in units of Ampere/Centimeter (A/cm), Gauss (Gs) and Tesla (mT). That is why sometimes such devices are called Teslameters or Gaussmeter gauges. Also in the device there is a conditional CODE scale, which allows user to assess the change in the magnetic fields of without reference to the scale.

THRESHOLD EXCEEDANCE ALARM FUNCTION

The device has the function of displaying the signal like a graph, which allows the user to monitor the change in the magnetic field strength by scanning the product. Also, in this operating mode, the user can set thresholds for the limiting values of the measured parameters, when the grapf break this threshold the device emits a signal.

VARIOUS PROBES

The device can be equipped with probes for operation in different ranges (± 100G, ± 1000G, ± 3000G), the narrower the range, the higher the measurement accuracy. The instrument is equipped with a transverse probe as standard, but axial probes can be made to order.

DESIGN

The device is sealed and can be used in conditions of high humidity, and the silicone case for the electronic unit makes the device shockproof. Also, the device is not demanding on the temperature of the operating environment, it is possible to use the device in the temperature range from -20 to + 40 ° C.

ARCHIVE OF MEASUREMENTS AND PC SOFTWARE

The device has the ability to create a measurement archive that can be transferred to a PC using special software.

  • Simplicity and convenience of measurements
  • Friendly menu
  • Static (DC), alternating (AC) and pulsed magnetic fields
  • Several units of measure
  • Wide range of measurement
  • Different types of probes
  • Robust and shockproof housing
The measurement range, depend on probe, G± 100; ± 1000; ± 3000
Basic Accuracy ±(1G+5%)
Scales
  • Ampere/Centimeter (A/cm)
  • Gauss (Gs)
  • Tesla (mT)
Response time, no more, s1
Overall dimensions, mm120x75x36
Operating temperature, ° C-20 to +40
Power supply2pcs AA batteries
Weight of electronic unit with batteries, kg, no more0.25
  • Probes (Axial and/or Transverse type)
  • Charger
  • Magnetic test samples
  • Electronic unit
  • Probe
  • Batteries AA type 2 pcs
  • Charger
  • Operating manual
  • Case
Magnetometer NOVOTEST MF-1M set
novotest Magnetic Flaw Detector (Magnetic Yoke) NOVOTEST MPD-DC

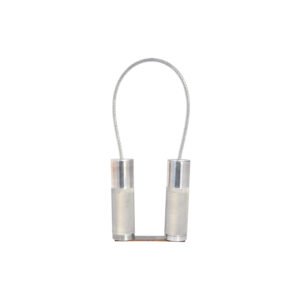

Magnetic Flaw Detector (Magnetic Yoke) NOVOTEST MPD-DC

Magnetic Flaw Detector (Magnetic Yoke) NOVOTEST MPD-DC applies in circumstances where the electric equipment mustn’t be used or prohibited by the rules.

Device is used during magnetic particle inspection (where it is applicable) according to ASTM E 709, ASTM E 1444, ASME Section V Article 7 and MIL-STD-1949.

Magnetic Flaw Detector NOVOTEST MPD-DC is used to detect surface and subsurface cracks of all kinds (flake, lack of fusion welded joints, tears etc.) in structures made of ferromagnetic materials.

The device has two permanent magnets placed in a cylindrical shells, which are connected by a flexible magnetic wire, so it can be used for MPI of remote locations, corner welds and other products of various shapes and sizes.

Magnetic Flaw Detector NOVOTEST MPD-DC can be used in cases if user can not use electromagnets, when supply of power is difficult or restricted by rules of safety (during works at height; working in the field conditions; testing of internal surface of tanks, boilers; etc.) at operating temperature from 30 °C  below zero to 50 °C  above zero and relative humidity up to 95% at 35 °C .

Magnetic field strength at the center of the air gap between the poles200 kA / m
Magnetic field strength in the air in the middle region between the working ends of the magnet, not less65 kA / m
Lift force, not less22 kg (50 pounds)
Interpolar distance350 mm
Weight of the device, not more 0.6 kg
Dimensions – cylindrical – flexible magnetic core40*120*360 mm
  • Magnetic flaw detector separately
  • Magnetic flaw detector; set of materials for magnetic particle inspection; magnifying glass; flashlight.
  • Magnetic flaw detector; set of materials for magnetic particle inspection; magnifying glass; flashlight and control sample for the MPI.
  • Magnetic Flaw Detector
  • Operating manual
  • Bag
Magnetic Test Samples

Magnetic Test Samples

We produce different types of magnetic test saples, such as: bars, plates, disks with different types of cracks.

The test blocks are used for:

  • quality comparison of different magnetic powders (particle solutions);
  • quality assurance of magnetic powders while working with the testing bench;
  • for quality analysis during the magnetic particle testing, also to check the correct dosing of magnetic powder in automatic testing.

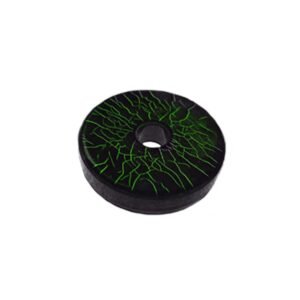

MTU Test Block #3

The MTU test block #3 (is the reference block type 1 according to EN ISO 9934-2) is used to verify the indication sensitivity of magnetic particle crack detection agents.

The test block is a disk with two types (large and small) of natural cracks (in both sides).

The large cracks are sanding cracks and the small cracks are tension cracks.

The test block has been magnetized by use of the hole in the middle of the test block. The analys of the test block is made by comparison of the picture with the results of the test block with fluorescent magnetic powder and ultraviolet lamp.

  • Competitive price
Shapedisc
Materialsteel
Dimensions
  • diameter – 50 mm- thick -11 mm
  • diameter of center hole – 10.5 mm
Preparing of material90MnCrV8; surfaces grinded on 9,7 ± 0,05 mm
Hardening of material
  • 860 °C to 2 hours- dipped in oil
  • hardness – 63 to 70 HRC
Grinding cracks
  • speedness 35 m/s
  • grain 46J7
  • delivery 0,05 mm cross feed 2,0 mm
Corrosion cracksblack heated at 145°C to 150 °C for 1,5 hours
Magnetisationcentral ladder, direct current I = 1 kA (peek)

If user has any requirements for ordering, please contact us.


  • Magnetic Test Block
  • Package
