Doble

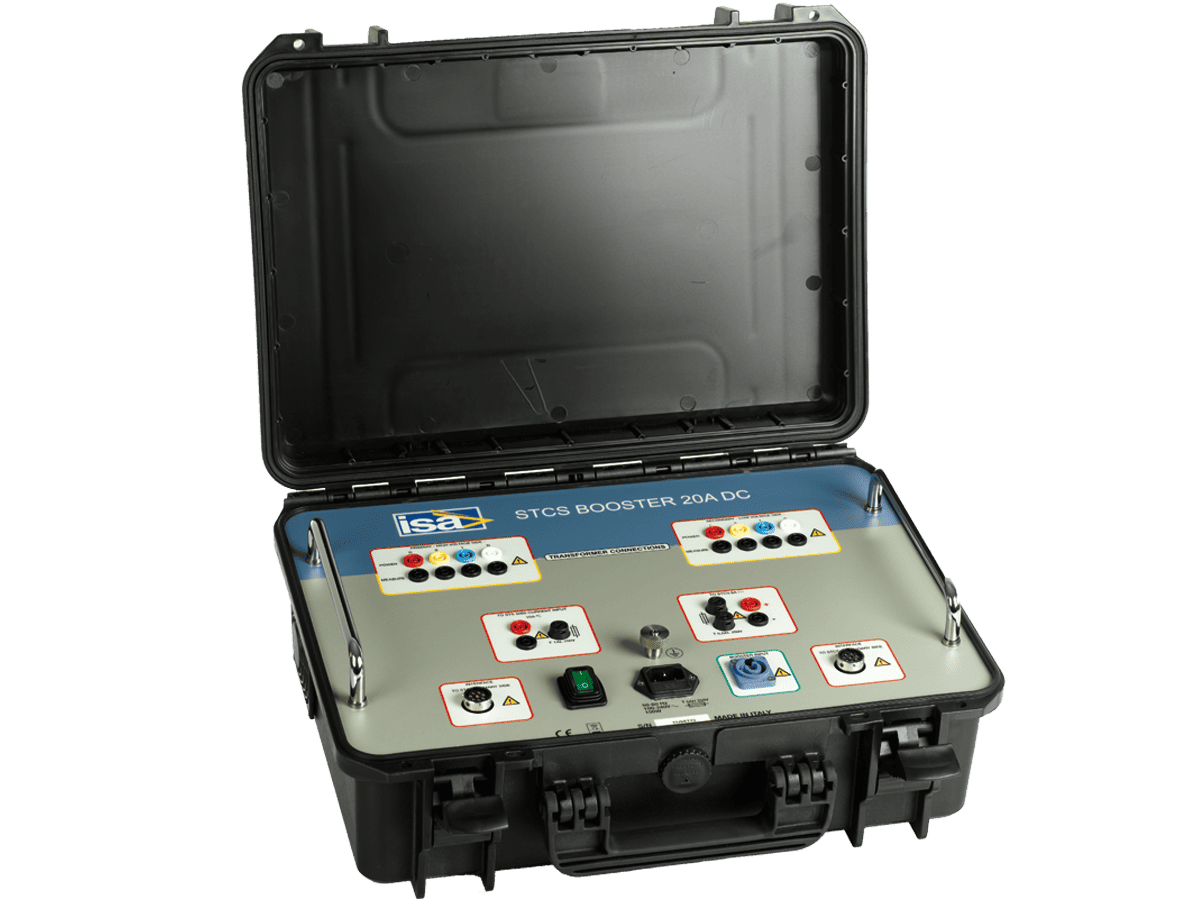

20A DC Booster
The 20A DC STCS booster allows to perform resistance tests on a PT with a current up to 20 A DC. The option is used together with STS 5000 and STS 4000 and must be connected to STCS module.
Details
The 20A DC STCS booster allows to perform resistance tests on a PT with a current up to 20 A DC. The option is used together with STS 5000 and STS 4000 and must be connected to STCS module.
Maximum output current: 20 A DC
Maximum power on output sockets: 400 W
Current output switch: controlled by STCS
Current output amplitude: controlled by STS 5000 or STS 4000
