Doble

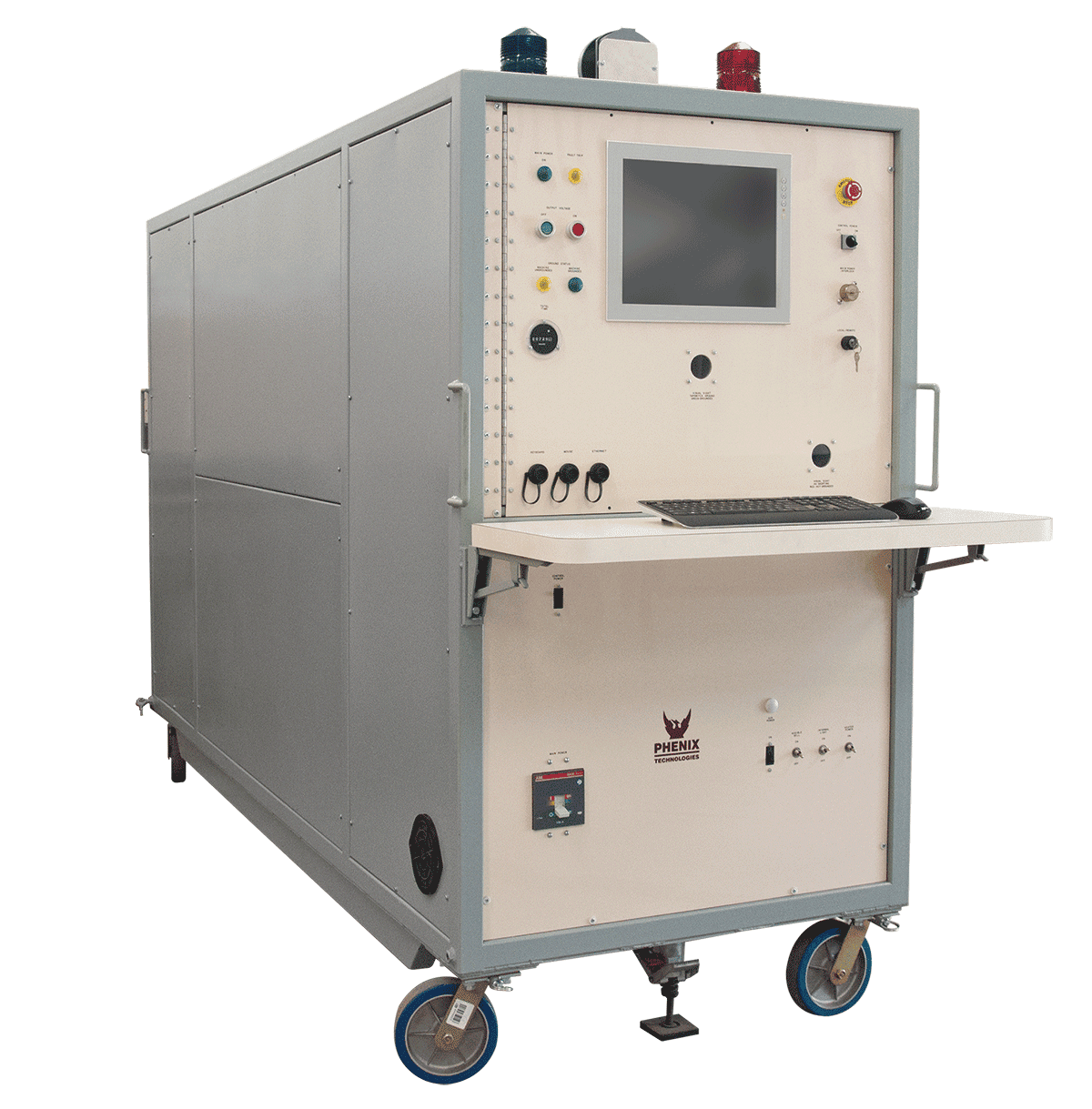

AC VLF Fault Locator/Hipot/Burn Supply
This test set is capable of testing system feeders ranging from 4 kV through 33 kV and up to 25 microfarad cable capacitance load tested at maximum voltage
Details
This test set is capable of testing system feeders ranging from 4 kV through 33 kV and up to 25 microfarad cable capacitance load tested at maximum voltage
DC supplies for fault burning and locating.
Systems for testing up to 138 kV Class are available
Use cosine rectangular VLF waveform
Internal grounding and discharge devices
Automated systems with data acquisition and report generation
Optional high power DC 20 A burn supplies
Up to 7500 Joules of discharge energy
