Bushing Tap Adapter Kit

Bushing Tap Adapter Kit is designed to perform Capacitance and Tan Delta tests on power transformer bushings

The kit can be used with the following ISA Test Set:

• STS 5000

• TD 5000

• STS 4000

• TD 5000

• TDX 5000.

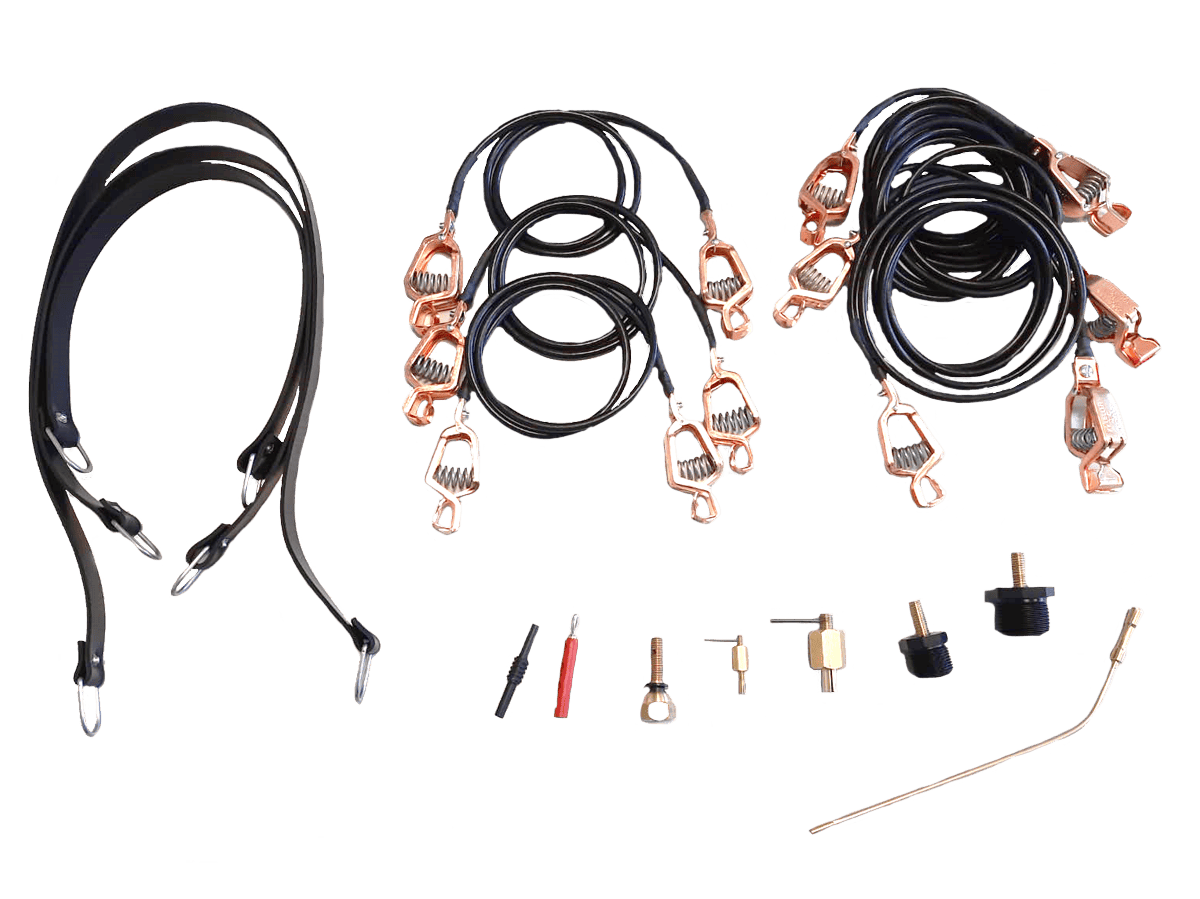

ISA Bushing Tap adapter kit is composed from:

• 1x male to female bushing adapter

• 1x female to female bushing adapter

• 1x 2.5 cm long bushing tap adapter

• 1x bushing adapter probe

• 1x 1.9 cm long bushing tap adapter

• 1x 3 hot collar straps

• 1x set of mini bushing tap adapter

• 1x 3 non insulated 1m long leads

• 1x bushing tap adapter

• 1x 3 non insulated 2m long leads

• 1x thermo hygrometer

Tests performed:

• Capacitance and Tan Delta tests
