Doble

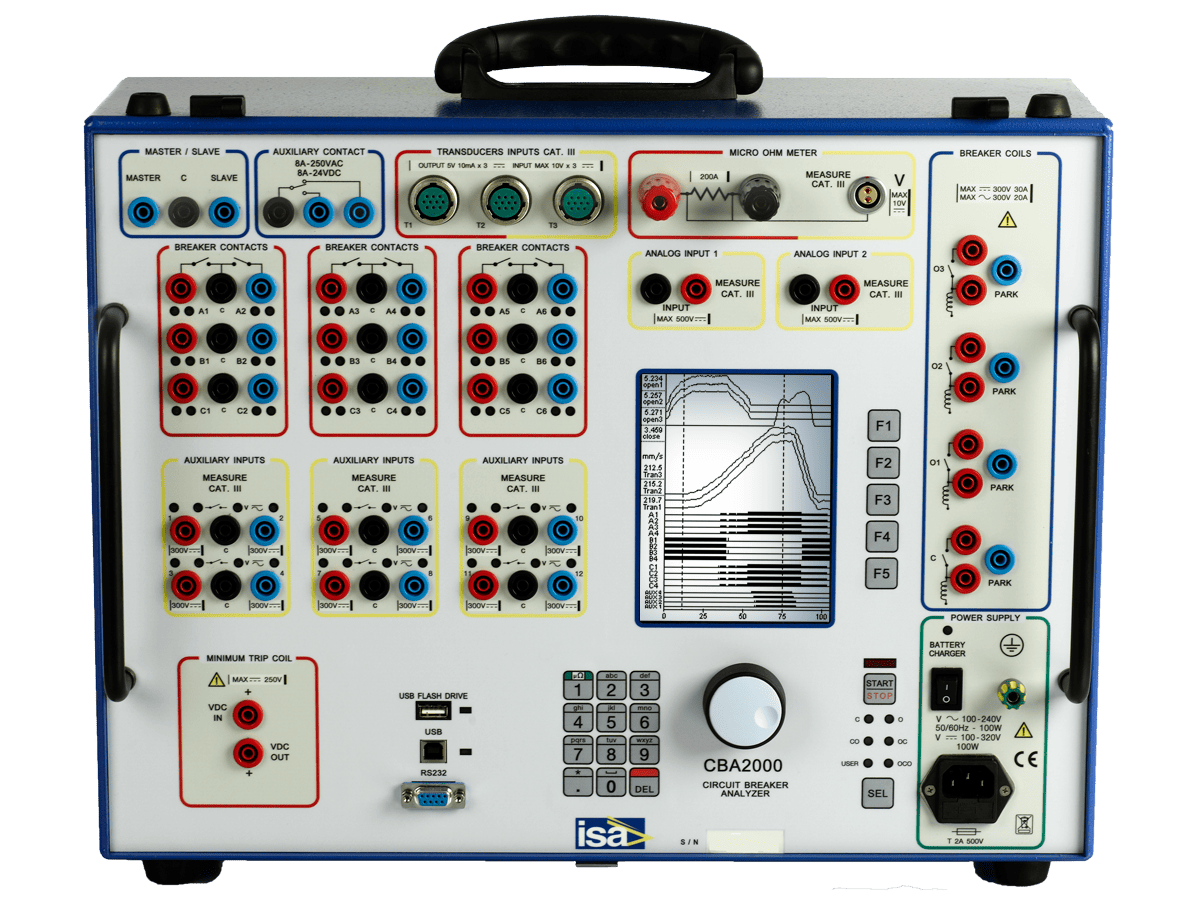

CBA 2000
CBA 2000 diagnostic system is designed to grant the highest accuracy while testing circuit breaker. It can perform static and dynamic contact resistance measurement and it’s a precise timing speed and motion analyzer.
Details
CBA 2000 diagnostic system is designed to grant the highest accuracy while testing circuit breaker. It can perform static and dynamic contact resistance measurement and it’s a precise timing speed and motion analyzer. Circuit breaker timing test set CBA 2000 is the perfect solution when a complete and reliable diagnostics has to be performed on circuit breakers.
Designed for the complete test of all circuit breakers
Built-in 200 A microhmmeter – static and dynamic contact resistance measurement
12 auxiliary timing inputs
Up to 4 trip/close coils control
Up to 18 main and 18 resistive contact inputs
Digital transducer option for motion analysis
Minimum Trip Voltage Test (optional)
Stand alone functionality – no PC connection is required
Analysis and result evaluation directly on the display
Internal memory for up to 500 test results and 64 pre-defined test plans
