Doble

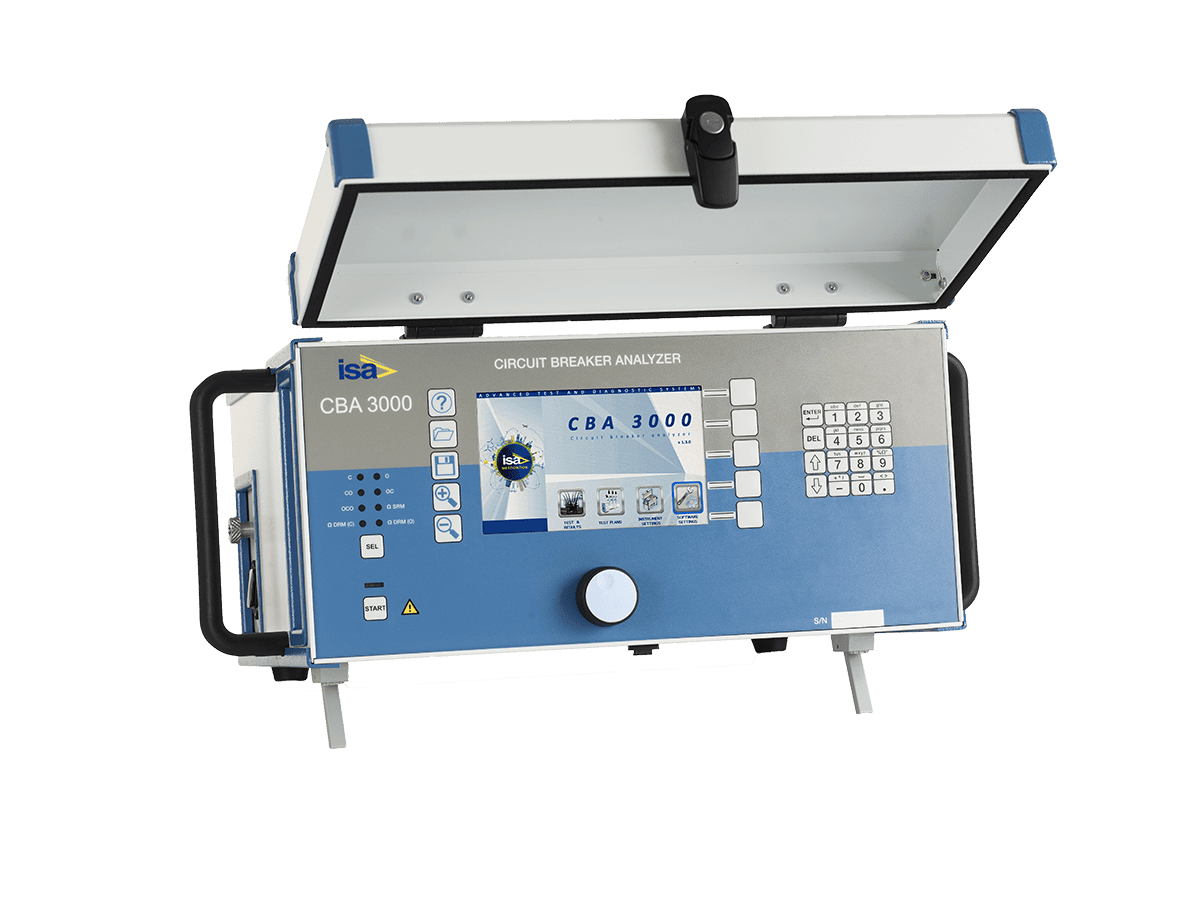

CBA 3000
CBA 3000 allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, both sides grounded (BSG) tests, under voltage condition test and more.
Details
CBA 3000 allows any timing test, motion and speed analysis, multiple contemporary static and dynamic contact resistance measurements, both sides grounded (BSG) tests, under voltage condition test and more. All these functions are integrated in a single lightweight test case without the need of connecting additional external modules.
Faster: one single connection set up to perform automatically all possible Circuit Breaker tests
Safer: Both Sides Grounded feature without any additional external boxes/modules
Up to 6 static and dynamic contact resistance measurement – 200A DC output each
Three phase first trip measurement
16 or 24 fully user configurable Main/PIR and auxiliary input contacts
2, 4 or 6 Open / Close coil commands
3 analog linear/rotary transducers and 3 digital transducers inputs for travel/speed analysis
8 analog input measurements: battery voltage, motor current, pressure transducers and other measurements
Minimum voltage trip coil test, fully automatic
On-screen control and test results evaluation
TDMS software suite for analysis, archiving and test report creation
Library of standard test plans available with the test sets
