Doble

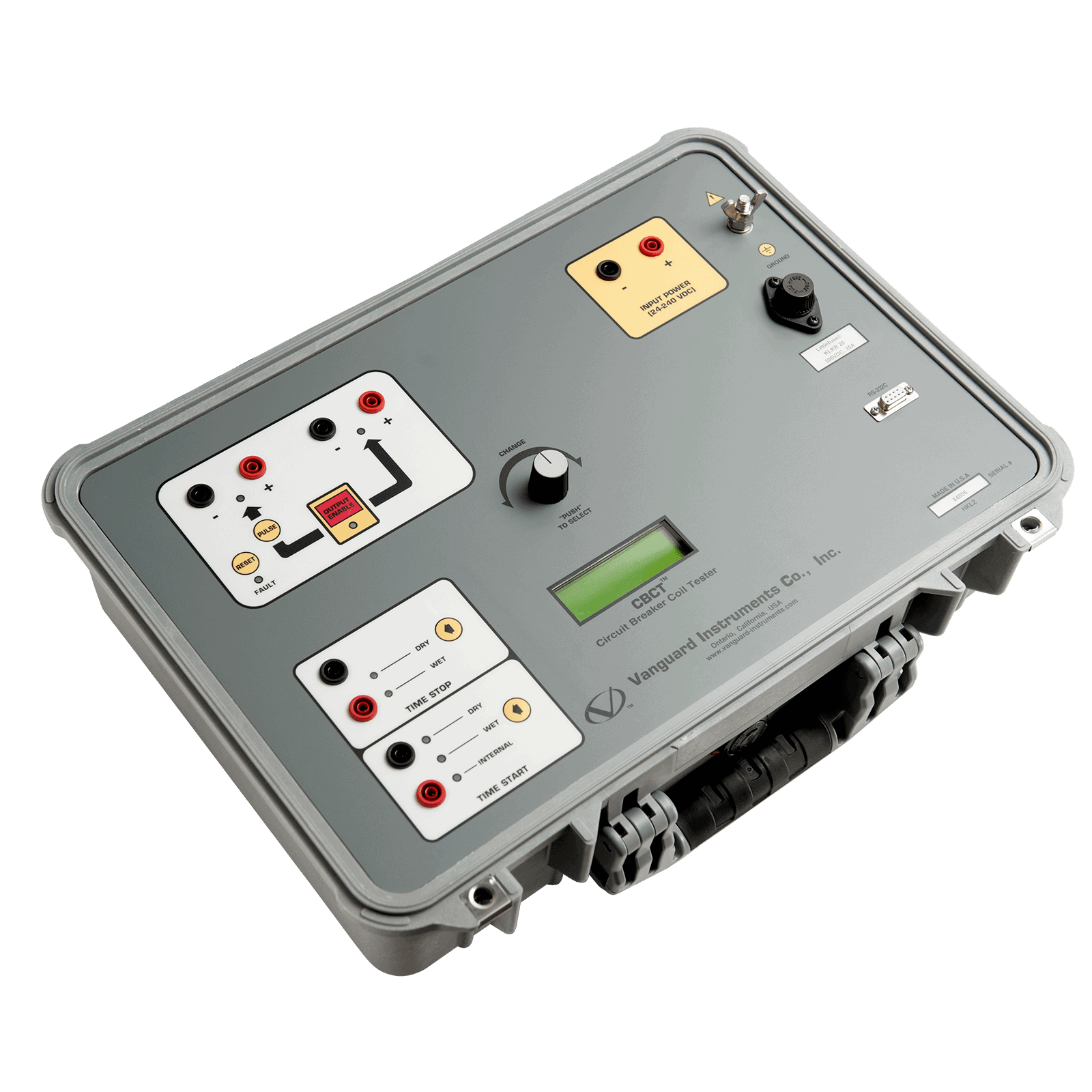

CBCT
The CBCT is a variable voltage DC power supply designed specifically to test substation circuit-breaker Open and Close coils. The CBCT uses the substation’s DC power supply to electronically generate a programmable output voltage from 5% to 95% of the source voltage.
Details
The CBCT is a variable voltage DC power supply designed specifically to test substation circuit-breaker Open and Close coils. The CBCT uses the substation’s DC power supply to electronically generate a programmable output voltage from 5% to 95% of the source voltage. The CBCT can maintain up to an 80A test current while maintaining 2% or better voltage regulation during the circuit breaker coil operation.
One continuous and one pulse DC output
Back-lit LCD screen (20 characters by 4 lines)
Output voltage programmable from 5% to 95% of the input voltage
Built-in, single channel timer
Documents
You may also like
Doble

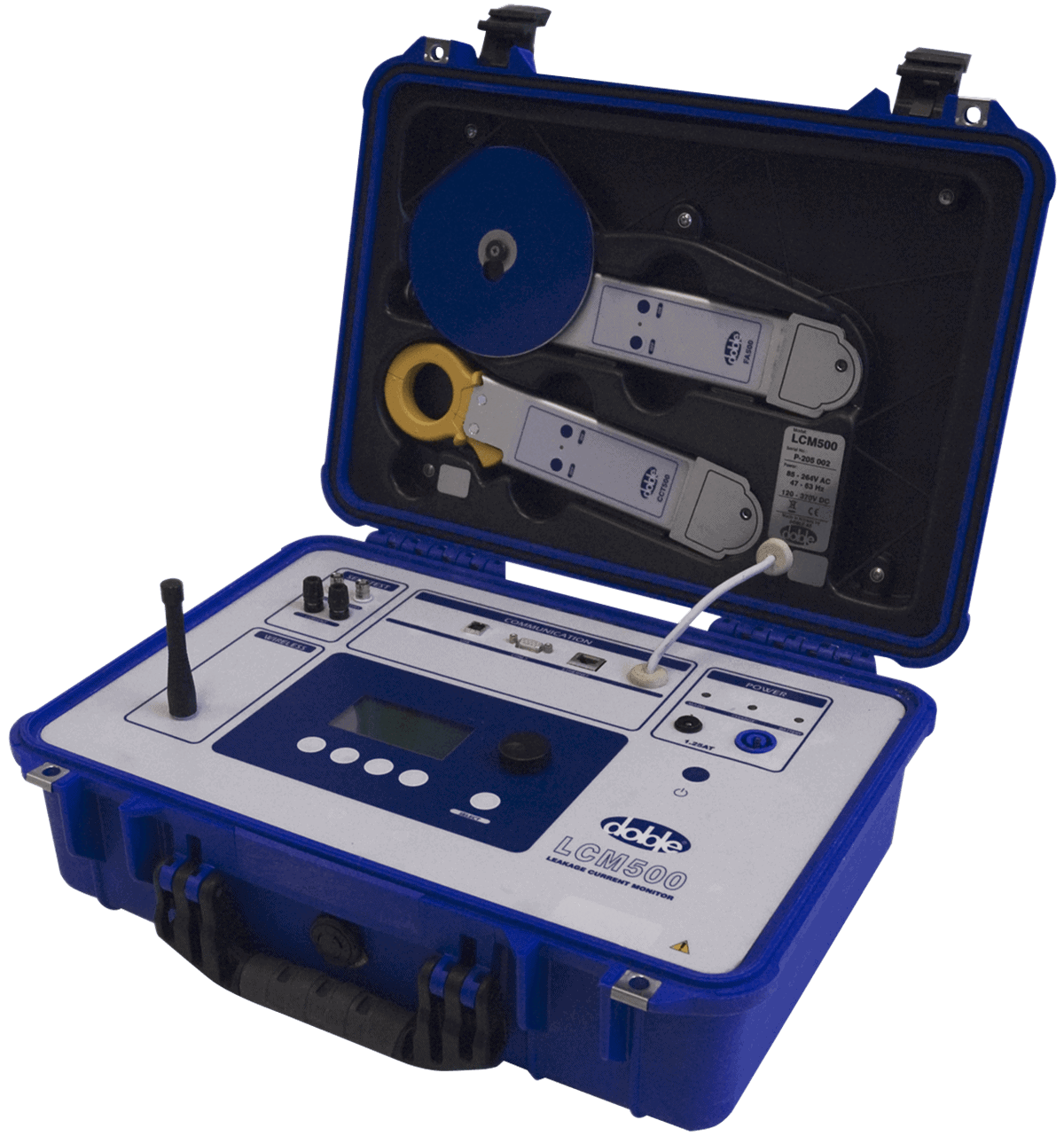

LCM500
The Doble LCM500 Leakage Current Monitor can measure condition while a surge arrester is still in service, measuring the quality of the metal oxide blocks and helping manage the risk of failure. A surge arrester may be inexpensive, but it has an important role in protecting your transformers.
Doble

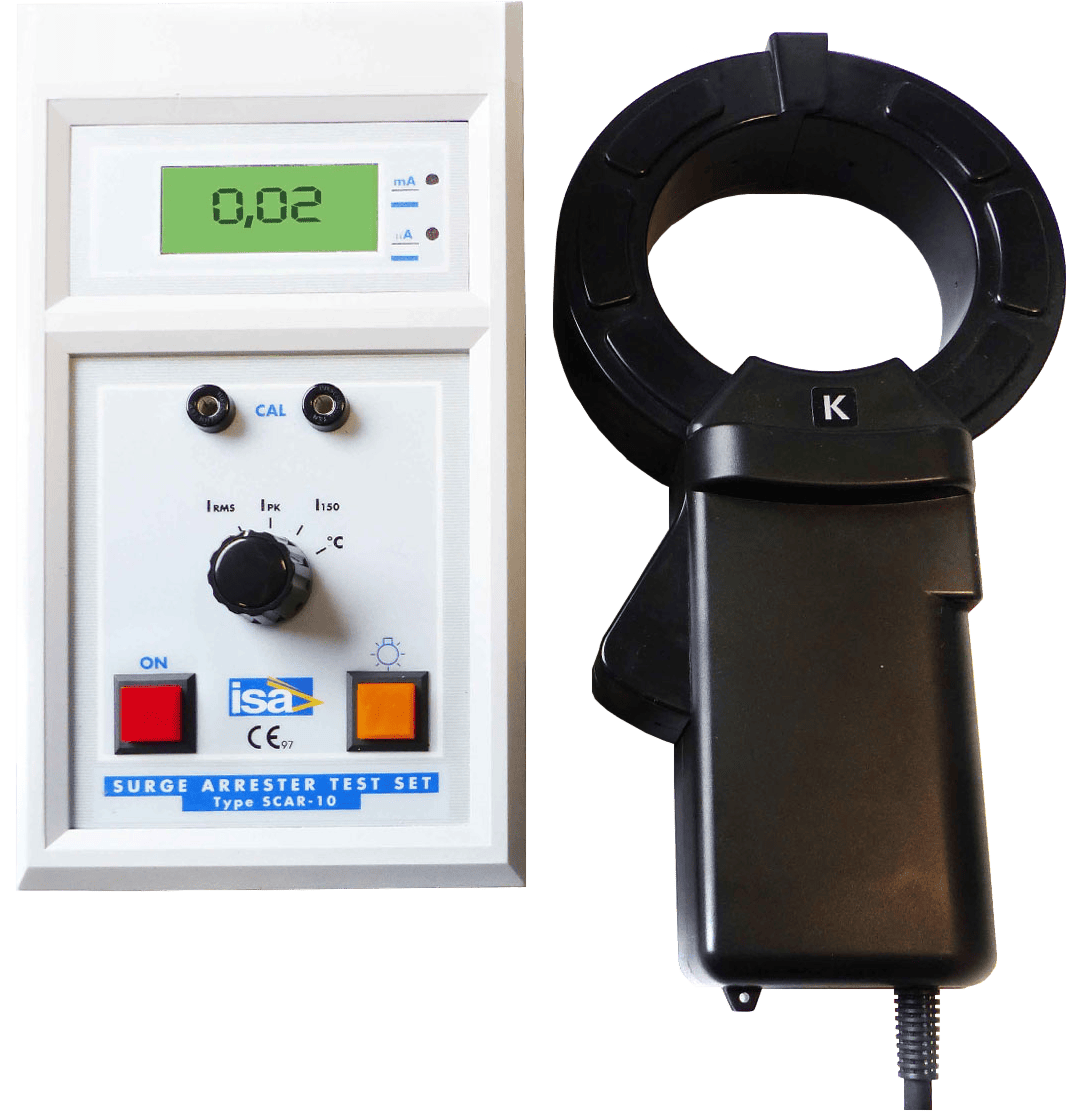

SCAR 10 Surge Arrester Testing
This MOV- Metal Oxide Varistor test system is the perfect device to perform analysis and diagnostics on metal oxide arrestors. It is supplied with a special current clip-on transformer designed for the measurement of current leakage.
Doble

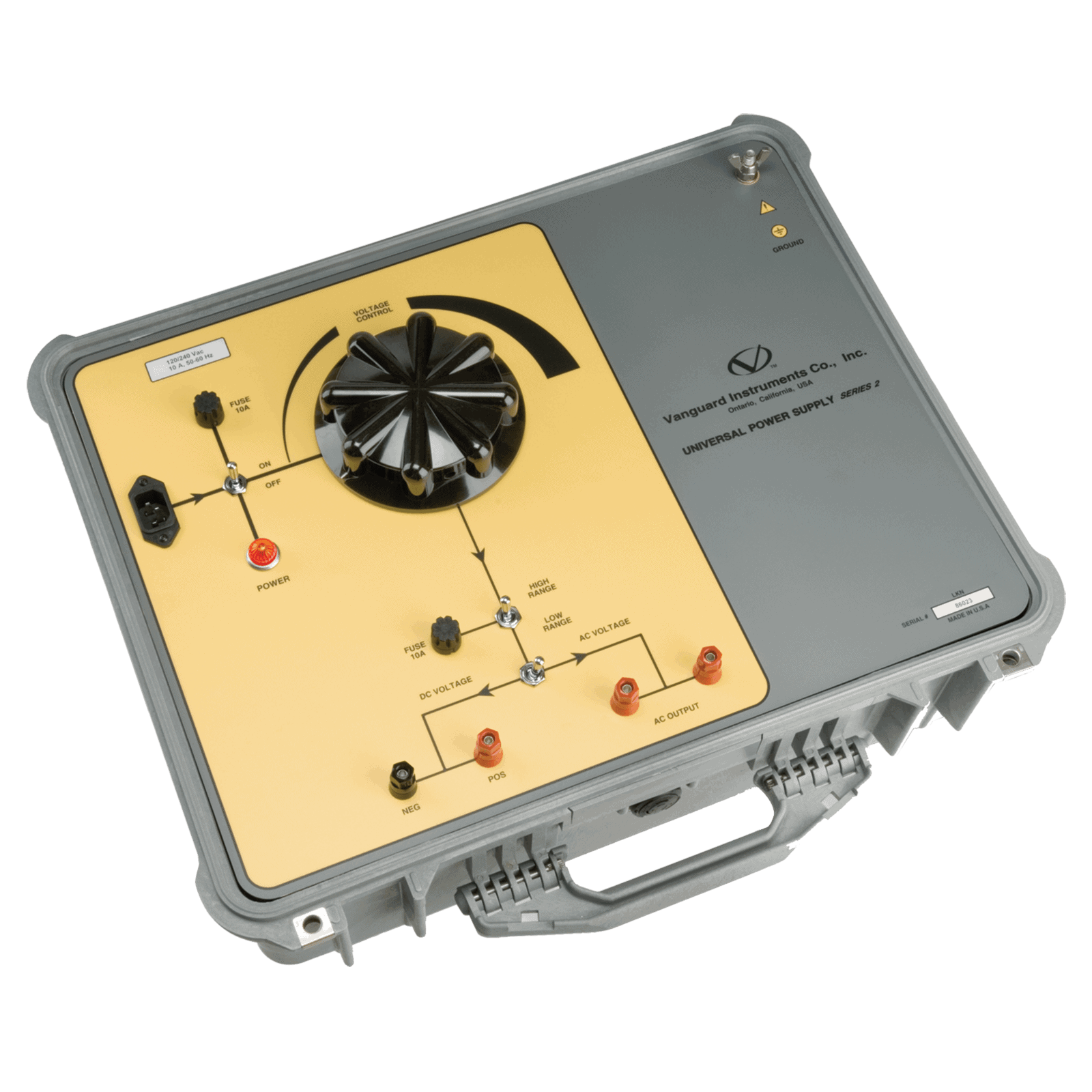

UPS S2
The Vanguard Universal Power Supply Series 2 (UPS-S2) is designed and produced to meet a utility company’s substation needs for an independent AC/DC power source. Both the AC and DC Voltage sources are capable of supplying 10 amperes continuously.
Doble

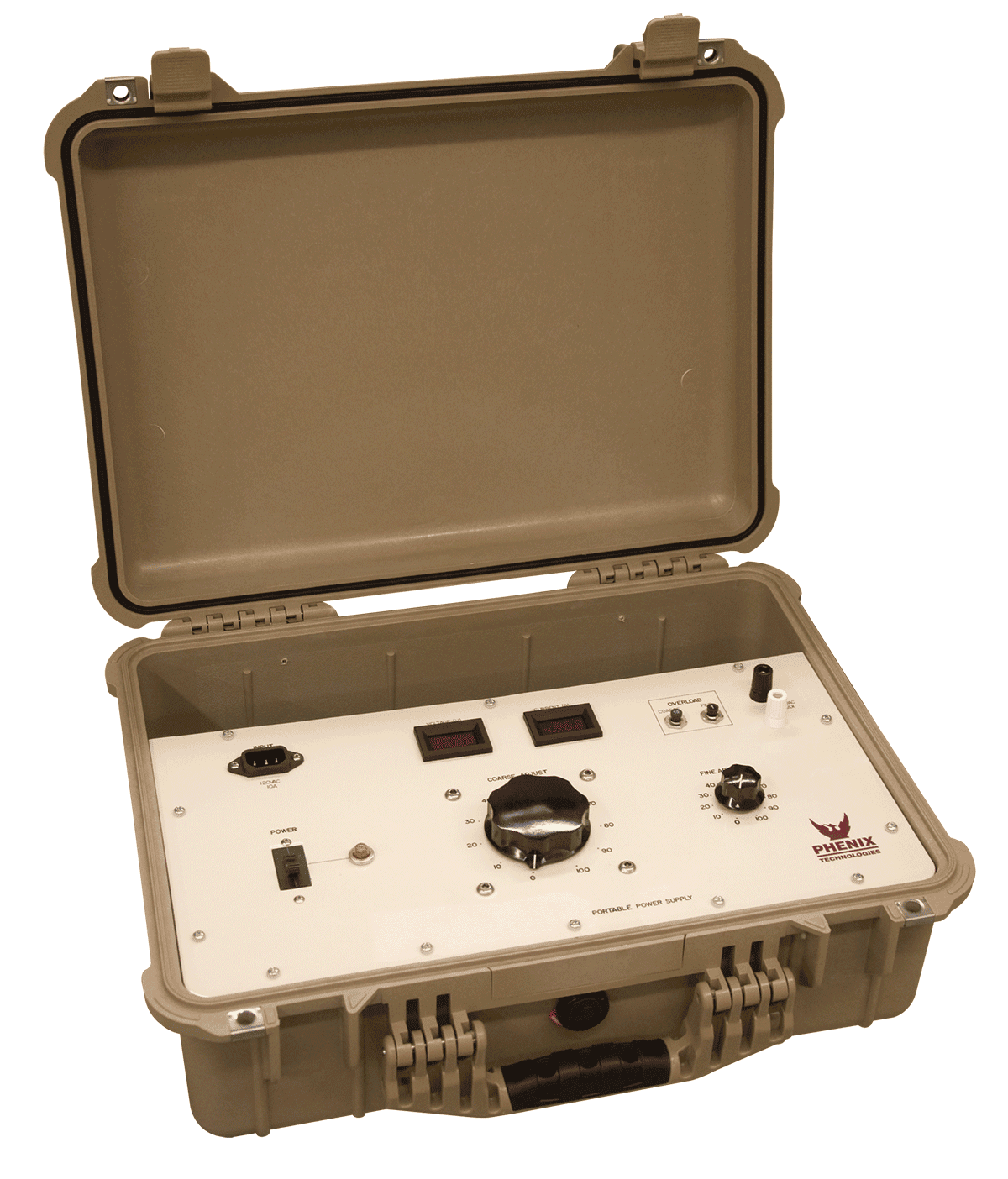

Portable Variable Voltage Power Supply
