Doble

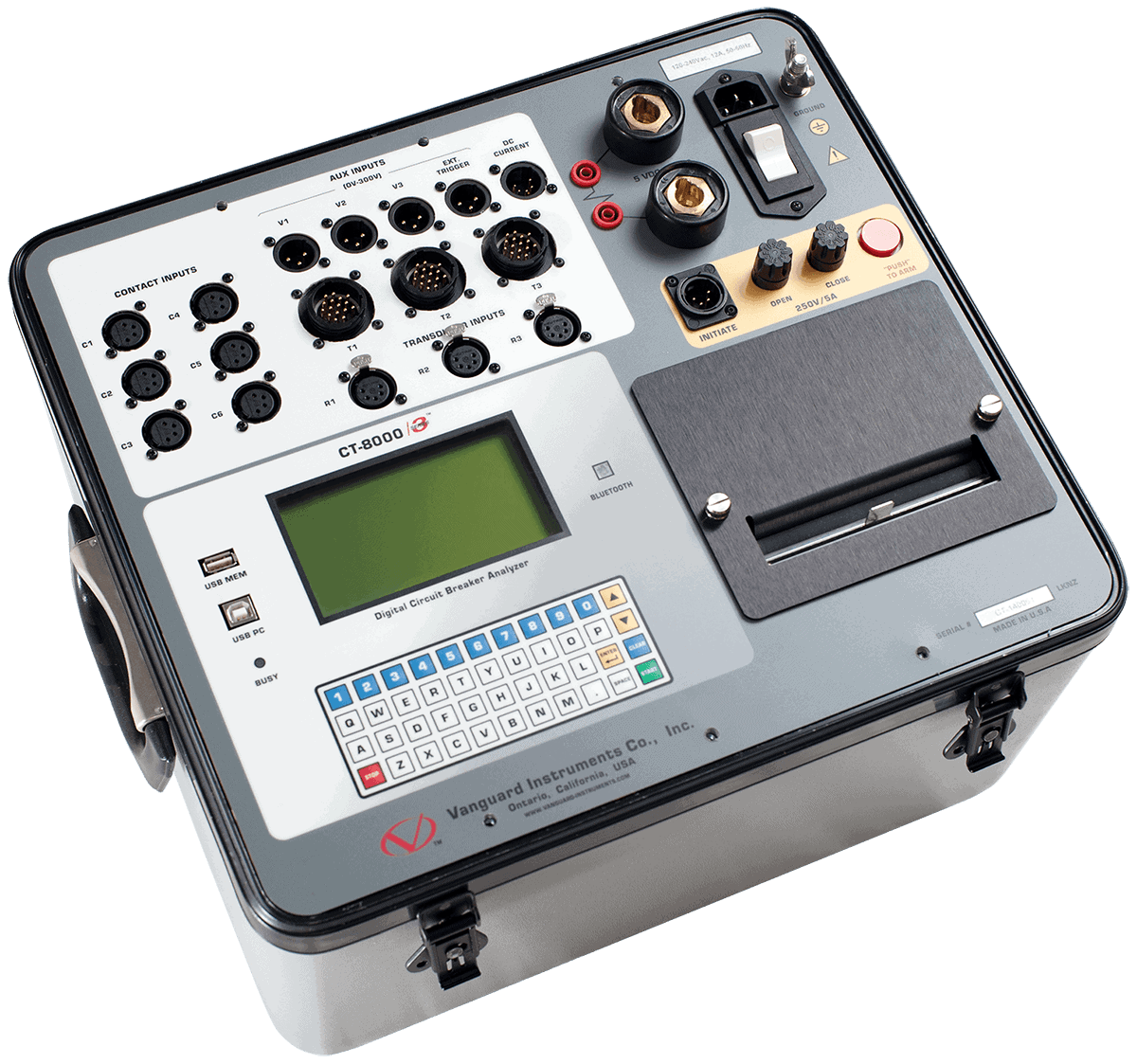

CT-8000 S3
The CT-8000 S3 is Vanguard’s fourth generation EHV circuit breaker analyzer. The CT-8000 S3 is available with 3 (part number 9103-UC) or 6 contact timing channels (part number 9104-UC).
Details
Fully analyze a circuit breaker’s performance
The CT-8000 S3 is Vanguard’s fourth generation EHV circuit breaker analyzer. The CT-8000 S3 is available with 3 (part number 9103-UC) or 6 contact timing channels (part number 9104-UC). The CT-8000 S3 can fully analyze a circuit breaker’s performance by measuring the main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes. Also, an outstanding feature of the CT-8000 S3 is the ability to perform dynamic resistance tests on circuit breaker contacts. CT-8000 S3 is also capable of performing dual side grounded tests on circuit breakers, enhancing safety and accuracy by grounding both sides of the apparatus during testing and helps to reduce test set up time.
Fully analyze circuit breaker’s performance by measuring main contact and resistor contact time, stroke, velocity, over-travel, bounce back and contact wipes
Perform dynamic contact resistance test
USB computer interface
USB Flash drive interface (Flash drive not included)
Store up to 200 test records and 100 test plans internally
Initiate Breaker Operation
Built-in 4.5″ wide Thermal Printer
Rugged “QWERTY” style membrane keypad
Optional “On-line” Timing Mode
Optional dual ground testing mode
Optional Bluetooth wireless computer interface
