Doble

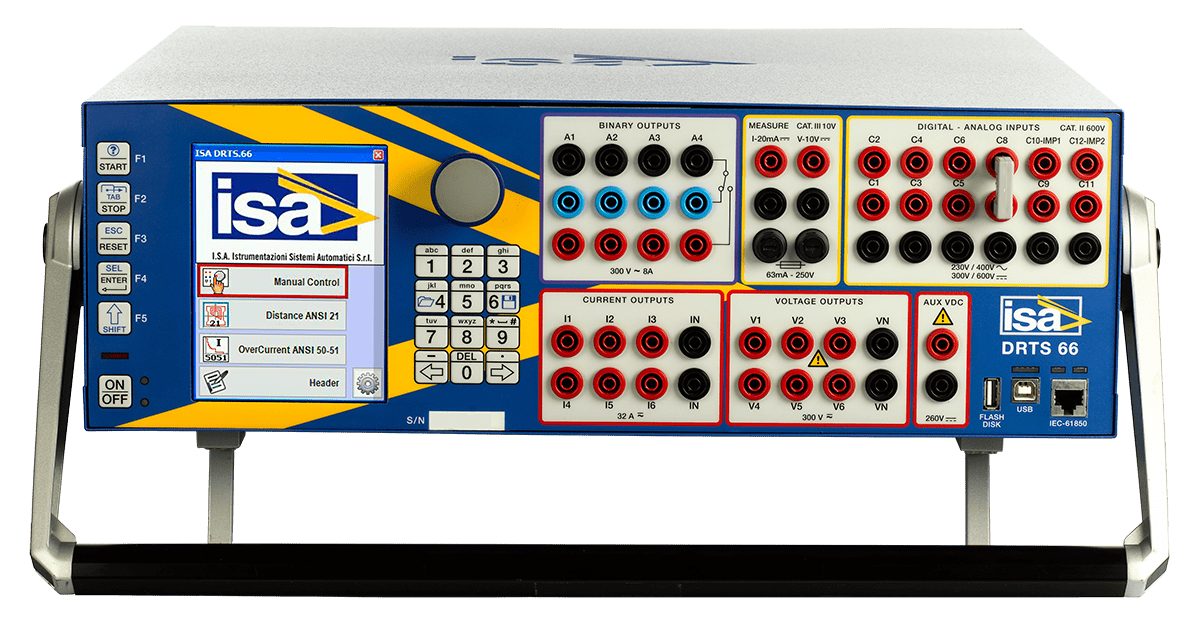

DRTS 66
DRTS 66 is a powerful diagnostic test set designed to perform accurate tests on protection relays, transducers, energy and power quality meters. This advanced test equipment is also thought to satisfy all the needs related to commissioning and substation maintenance.
Details
DRTS 66 is a powerful diagnostic test set designed to perform accurate tests on protection relays, transducers, energy and power quality meters. This advanced test equipment is also thought to satisfy all the needs related to commissioning and substation maintenance. 6 Current and 6 Voltage generators simultaneously available.
Manual control of the display
6 Current and 6 Voltage generators plus 1 battery simulator output
Current outputs : 6 x 32 A, 3 x 64 A, 1 x 128 A
Power outputs: 6 x 430 VA, 3 x 860 VA, 1 x 1000 VA
Voltage outputs: 6 x 300 V at 100 VA
High accuracy outputs: better than 0.05%
IEC 61850 protocol interface
USB and ethernet interface
Advanced testing and data management software TDMS
Complete library of relays from the major manufacturers
