M5500

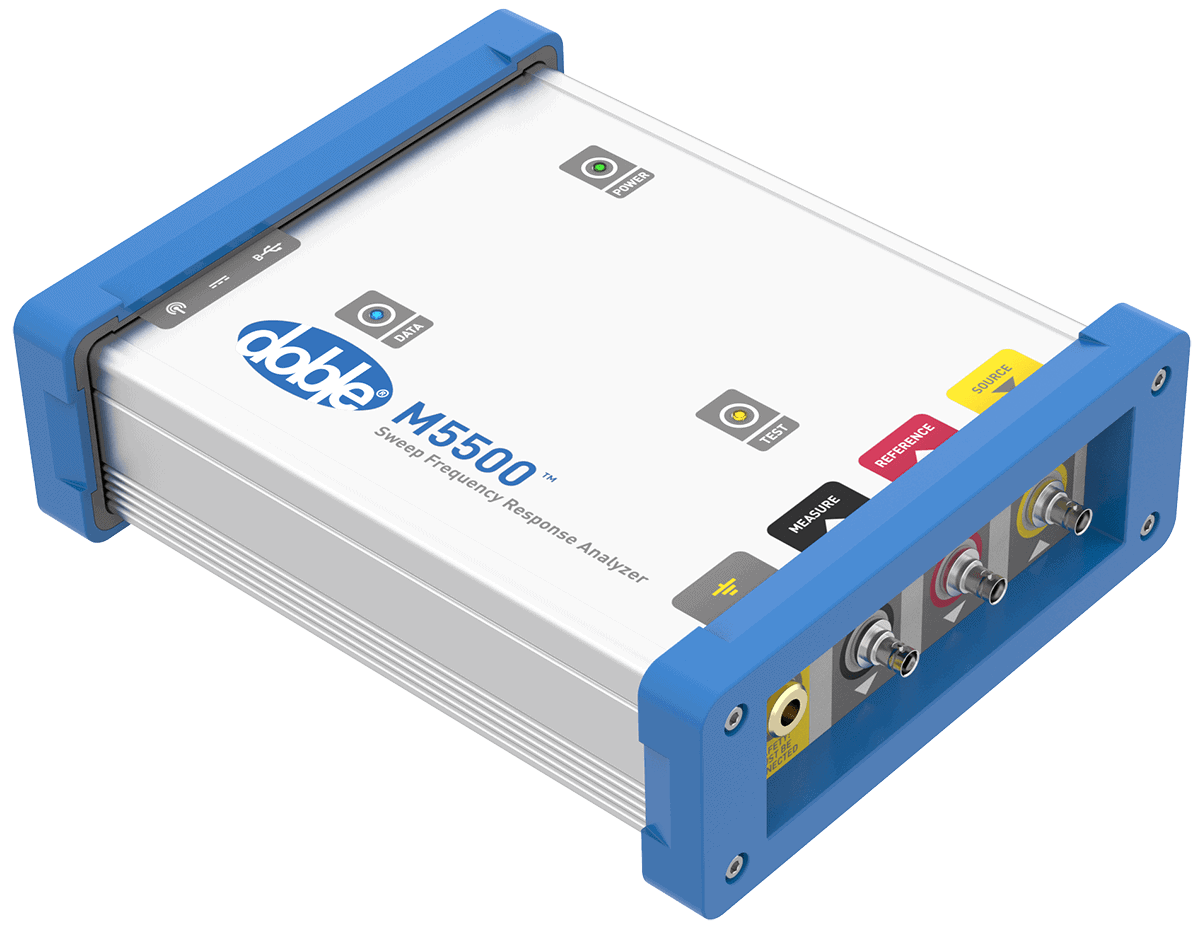

The M5500 Sweep Frequency Response Analyzer is our newest generation of SFRA diagnostic instrument. With incredibly fast sweep speed and expanded dynamic range, you can use the Doble M5500 test set to investigate mechanical integrity of transformers, reactors and other equipment with windings.
Details
Fast, Accurate, Repeatable SFRA
The M5500 Sweep Frequency Response Analyzer is our newest generation of SFRA diagnostic instrument. With incredibly fast sweep speed and expanded dynamic range, you can use the Doble M5500 test set to investigate mechanical integrity of transformers, reactors and other equipment with windings. Coupled with the ease-of-use and powerful features of the new SFRA 6 Software, conducting SFRA testing and analysis of your apparatus has never been easier or more productive.
If you can measure the frequency response of a transformer, then you can identify physical movement and other issues with the winding, core, and connections.
The M5500 sends an excitation signal into the transformer and measures the returning signals. Comparing this response to baseline readings and test results from similar units allows you to identify deviations and confirm internal mechanical problems.
The M5500 reduces the uncertainty about apparatus condition by providing solid evidence of mechanical integrity or winding movement. Use it to help determine how a transformer is deteriorating, if it can go back in service after a fault, or if it has been damaged during transit.
Specify Doble SFRA baseline testing as part of the factory test for your new transformer and call for retest at every major transportation mode change or crane lift. Use it after system faults and during routine testing as part of your diagnostic tool kit.
