Doble

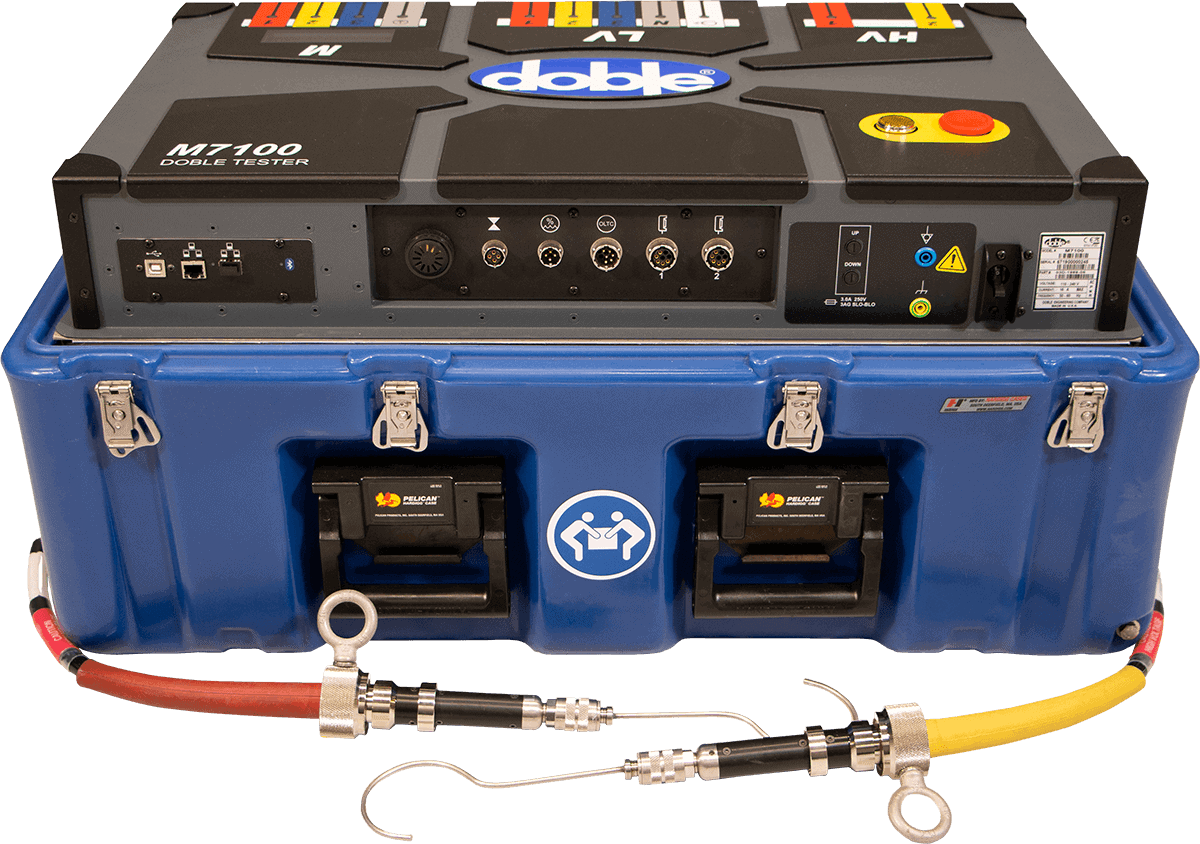

M7100 Analyzer
The M7100 automates multiple high-voltage tests, previously performed by several pieces of equipment, cutting down testing time from seven hours to one and a half hours. Reduced testing time means technicians can safely perform more commissioning, scheduled maintenance and diagnostic activities.
Details
Complete solution for high and low voltage testing
The only test set featuring two dual-function high-voltage leads for source and measurement delivers the fastest, complete set of measurements. Compared to a single-lead system, this patented design dramatically improves technician safety by reducing ladder trips by as much as two-thirds and simplifying lead placement.
The M7100 automates multiple high-voltage tests, previously performed by several pieces of equipment, cutting down testing time from seven hours to one and a half hours. Reduced testing time means technicians can safely perform more commissioning, scheduled maintenance and diagnostic activities.
Features
Patented dual-function high-voltage lead design allows you to switch between source and measurement—both capabilities are within each HV lead
Built-in low voltage/high current multi-frequency source
True 4-Terminal measurements
Easy setup using either a color or number to indicate the connection
Only dual high-voltage lead test set in the industry
Standard two-year warranty and three-year calibration interval based upon accuracy and reliability in the field.
Benefits
FAST AND EFFICIENT
Finish testing in a third of the time
Replace a truck full of instruments and cables
COMPREHENSIVE
Maximize your outages and limit safety risk
EASY AND SAFE
Greatly reduce the number of ladder trips technicians are exposed to per job
A dual-lead system eliminates most steps needed for connection, reducing errors during lead placement — where most mistakes occur—and instilling confidence in testing
Enhanced safety with special safety switch design and emergency stop switch
