Doble

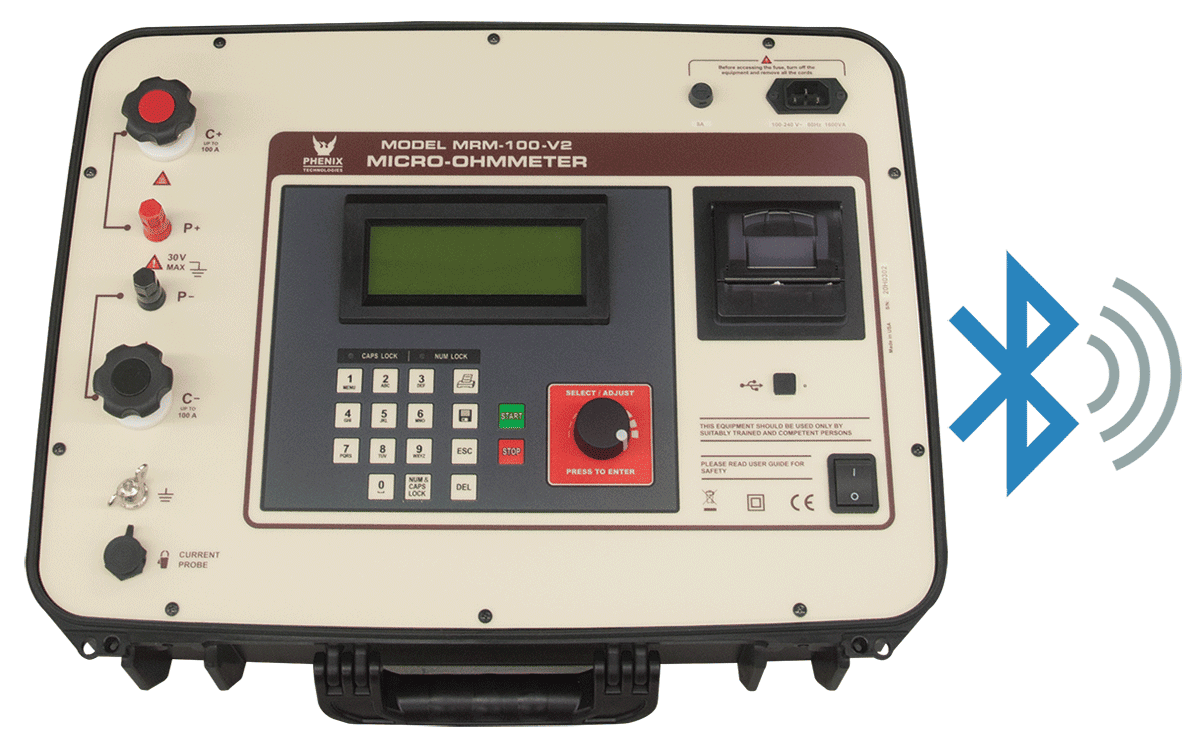

MRM-100-V2
MRM Series, 10-200 Amp Lightweight and ruggedly constructed Reliable and accurate measurements in the laboratory or in the field Bluetooth and USB communication interfaces User-friendly software, report generator
Details
MRM Series, 10-200 Amp
Lightweight and ruggedly constructed
Reliable and accurate measurements in the laboratory or in the field
Bluetooth and USB communication interfaces
User-friendly software, report generator
Testing Applications
5 A-100 A (True DC), 0.1 µΩ resolution, Built-in memory and printer, Both Side Grounded for substation testing
Accurately measure very low contact resistances of switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, or any application where low resistance current is required.
MODEL | MRM-100-V2 |
TEST CURRENT | 5 A – 100 A (True DC) |
RESISTANCE RANGES | 0.1 μΩ to 2 mΩ, with 0.1 μΩ resolution |
RESOLUTION | up to 0.1 μΩ |
INPUT | 100-240 V, 50/60 Hz |
BASIC ACCURACY | ±1% of reading from 50 μΩ to 300 mΩ |
