Doble

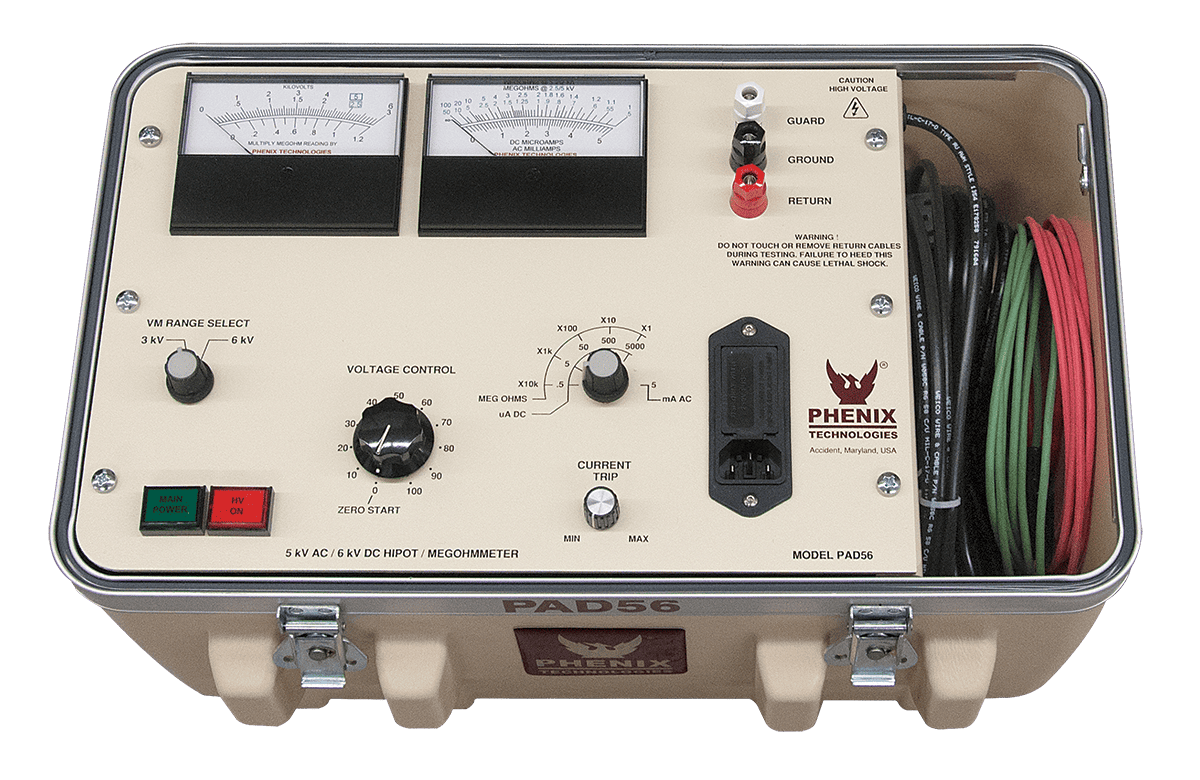

PAD56
Description The PAD56 tester is capable of producing voltages as high as 6 kV DC (5 kV AC) into a variety of insulated electrical apparatus. The unit will measure leakage current flow through (or insulation resistance levels of) the ground insulation of the test sample.
Details
Description
The PAD56 tester is capable of producing voltages as high as 6 kV DC (5 kV AC) into a variety of insulated electrical apparatus. The unit will measure leakage current flow through (or insulation resistance levels of) the ground insulation of the test sample. Leakage current as low as .01 microamperes DC (.1 milliamperes AC) and as high as 5000 microamperes DC (5 milliamperes AC) can be read directly from the testers front panel meter. Insulation resistance values up to 1,000,000 megohms may also be read directly at test voltages of 2.5 or 5 kV DC (a factor scale for insulation resistances at other test voltages is also provided).
Documents
You may also like
Doble

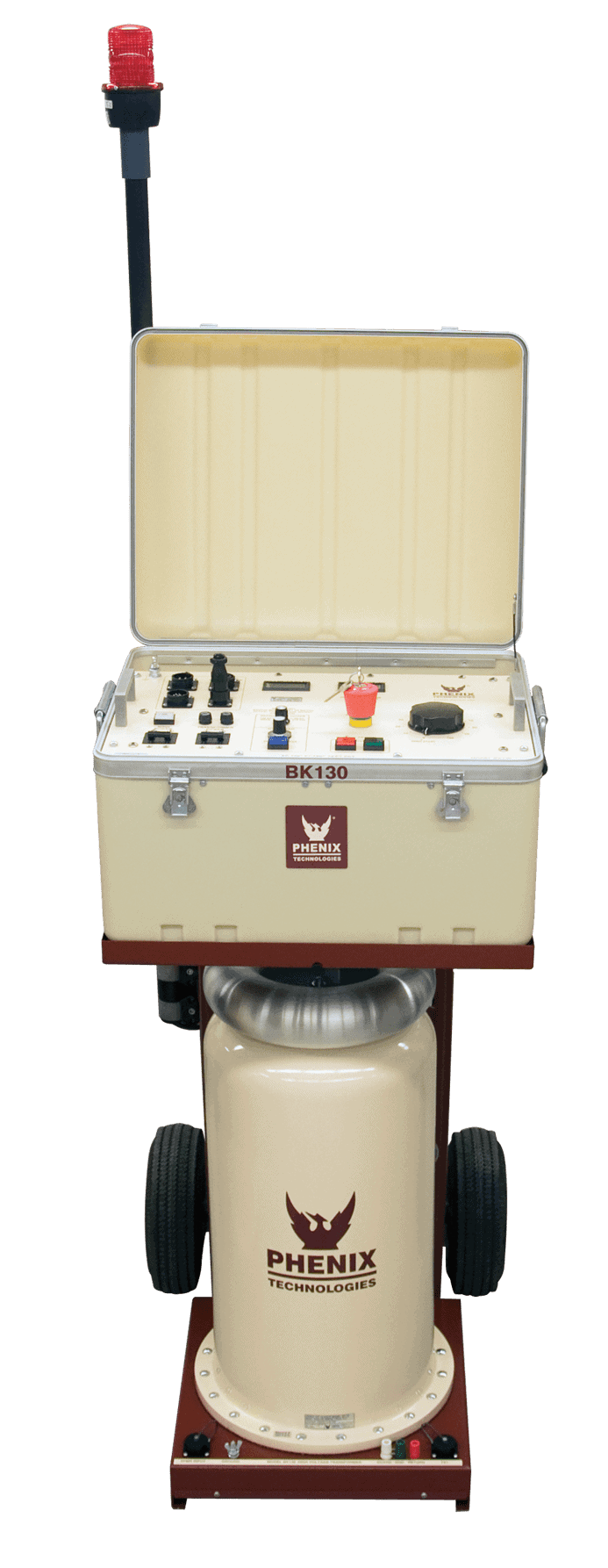

Mobile AC Dielectric Tests for Aerial Lift, Elevated Platform and Insulated Boom Testing
Model Output Range BK130/36 and 0-130 kVAC, 50 mA BK130/36-B 0-36 kVAC, 180 mA BK300 0-300 kVAC, 60 mA Models BK130/36-B and BK300 feature a touch screen display with auto-ranging meters, automated operation and data acquisition.
Doble

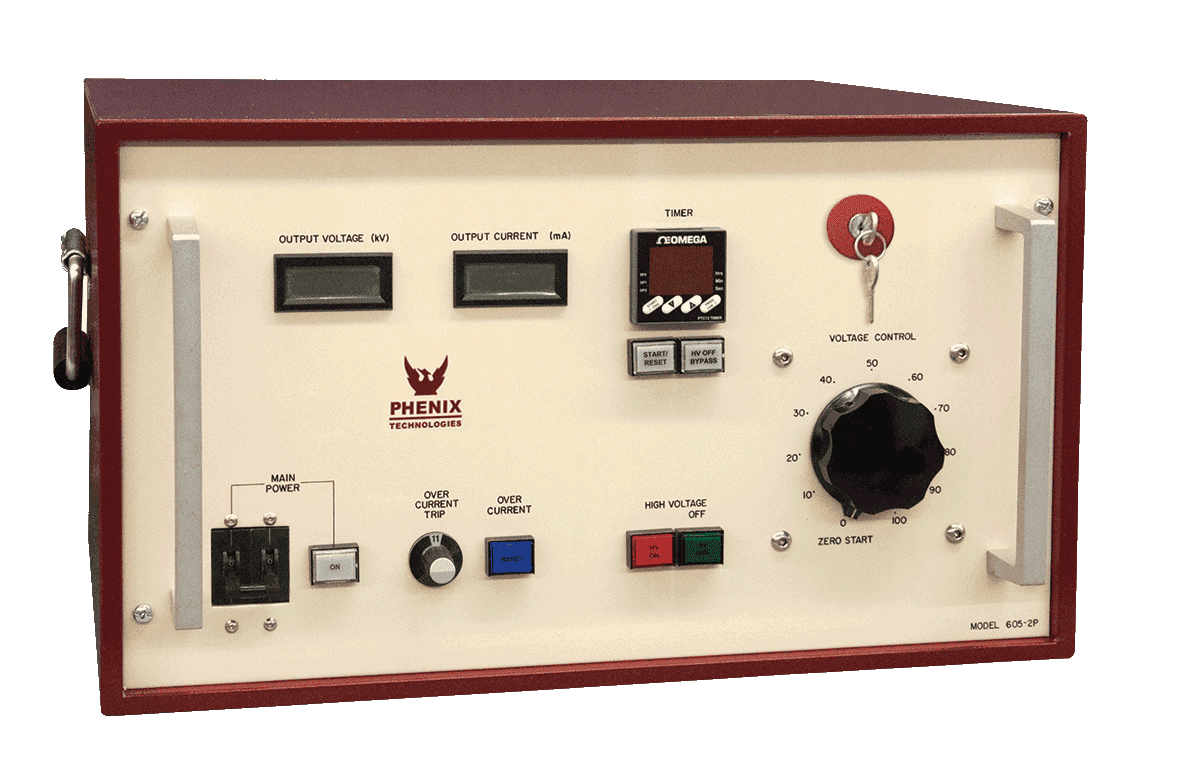

5-15 kV Benchtop and Floor AC Dielectric Test Sets
Suitable for dielectric and insulation testing up to 15 kV on all types of electrical apparatus The Phenix line of 5 kV-15 kV AC Hipots offer a completely integrated, easy-to-use high voltage AC supply.
Doble

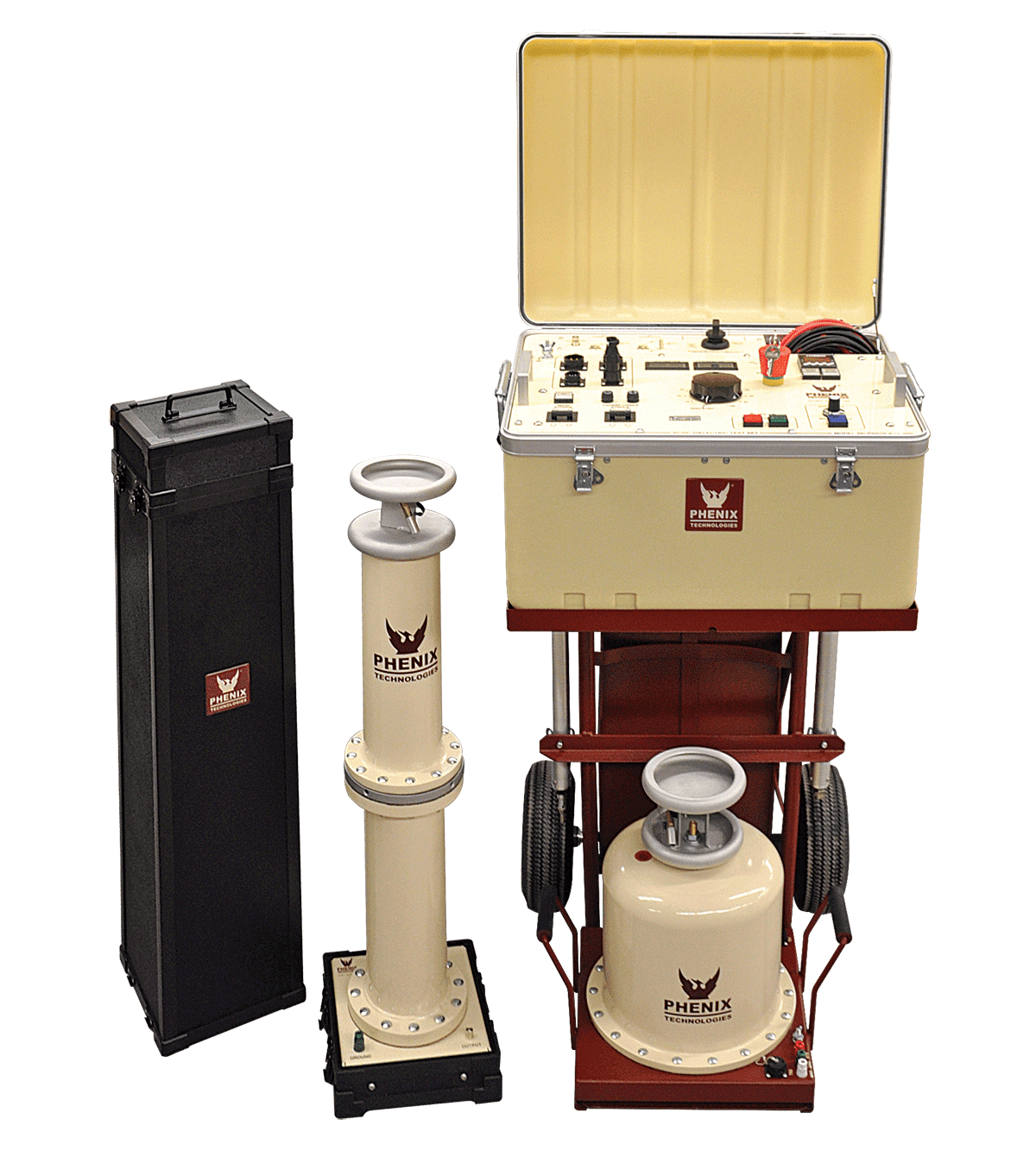

100 kV AC / 120 kV DC Combo Hi-Potential Test Systems 100 kV AC / 120 kV DC Combo Hi-Potential Test Systems
Model Output Voltage/Current 46CP50/70-2/10 ~0-50 kV AC, 40 mA ~0-70 kV DC, 10 mA Negative output, Positive ground 46CP100/120-3.75/10 ~0-100 kV AC, 37.5 mA ~0-120 kV DC, 10 mA Negative output, Positive ground
Doble

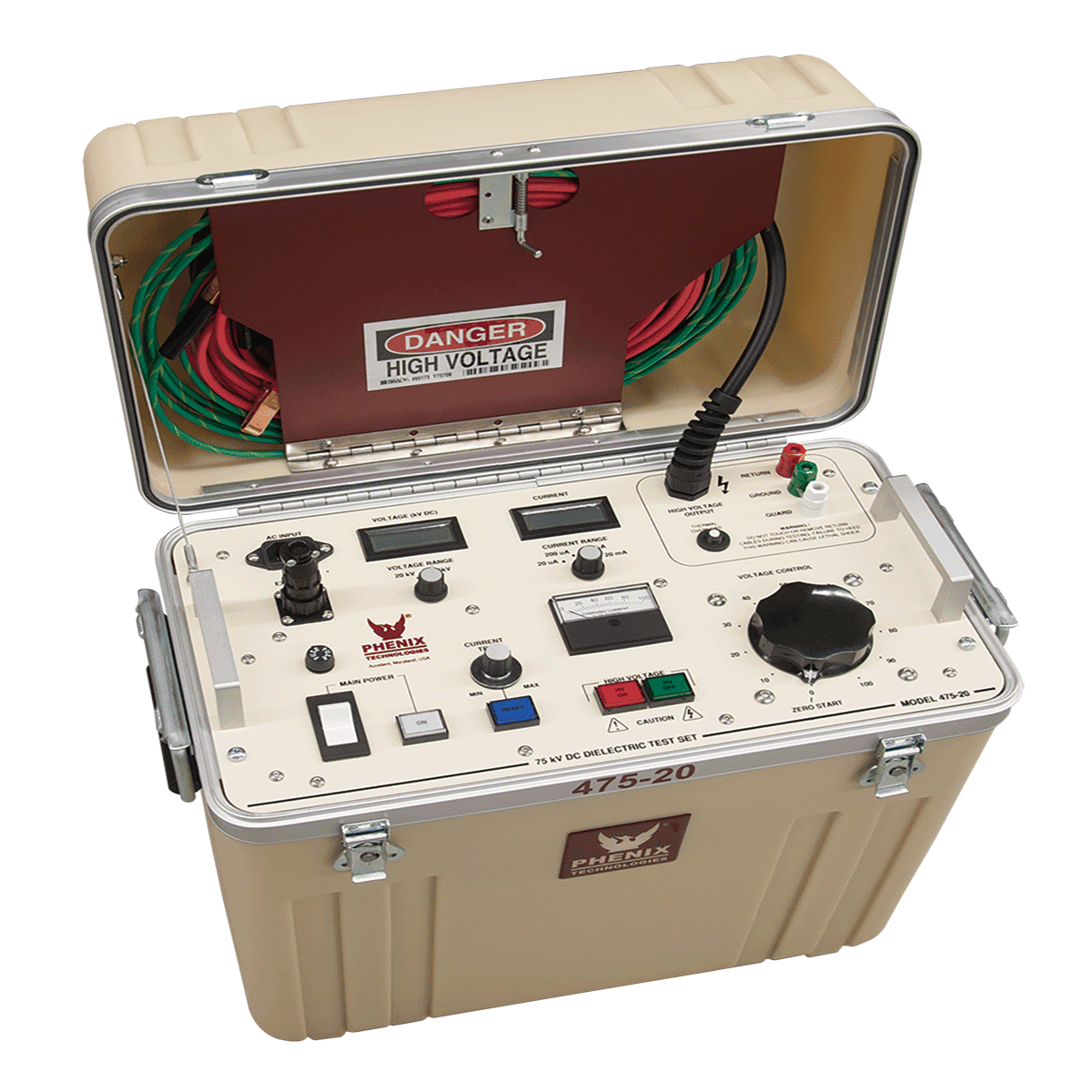

40-200 kV Portable DC HIPOT
