Doble
PADS
PADS is an optional module of the Test & Data management software (TDMS), that allows the remote control of STS 5000, STS 4000 and e-KAM. These devices allow performing tests of: CTs, VTs, PTs, CBs and almost all other power devices in electrical substation.
Details

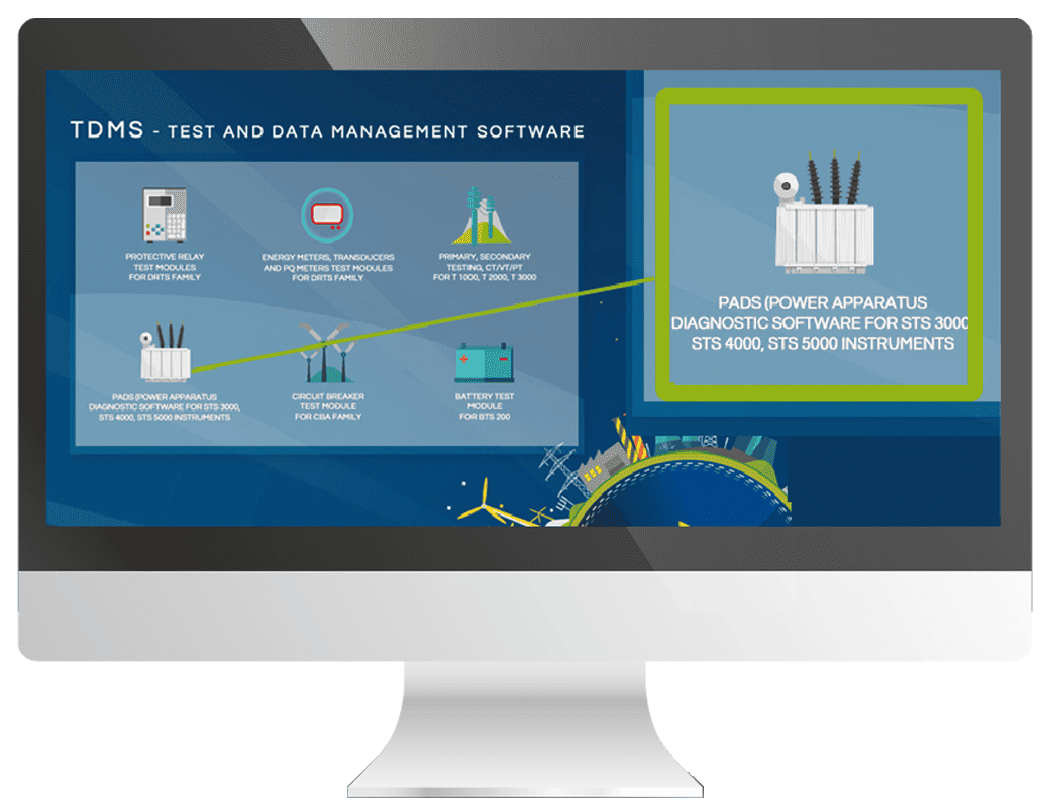

Power Apparatus Diagnostic Software
PADS is an optional module of the Test & Data management software (TDMS), that allows the remote control of STS 5000, STS 4000 and e-KAM. These devices allow performing tests of: CTs, VTs, PTs, CBs and almost all other power devices in electrical substation.
Main Features
Control STS and TD remotely from PC
Create test plan
Download stored test results via Ethernet cable
Create and customize test reports
Print test results
