Doble

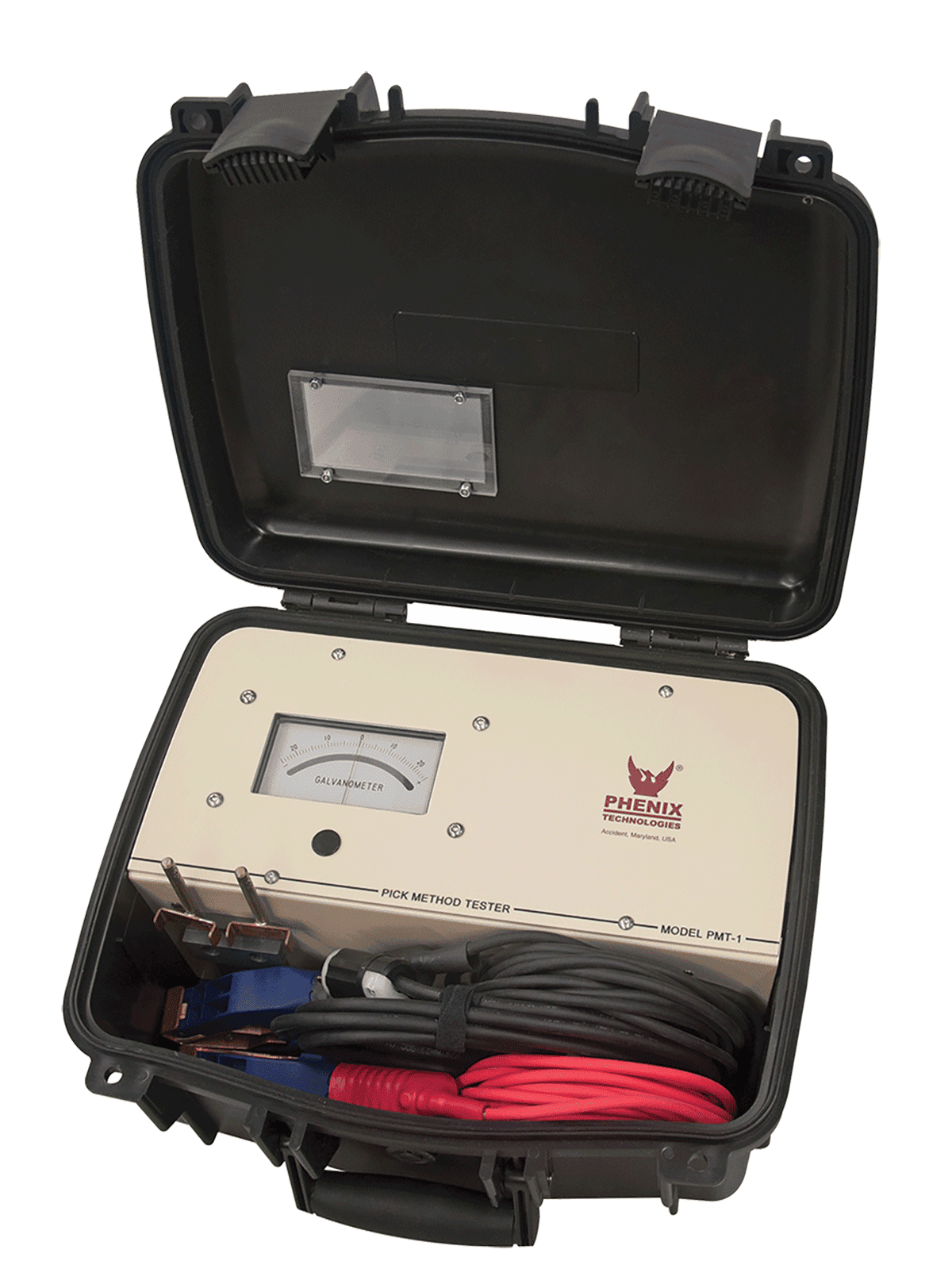

Pick Method Tester, Model PMT-1
Used for fault locating as well as pinpointing HV faults Used to read sheath current (both magnitude and polarity)
Details
Used for fault locating as well as pinpointing HV faults
Used to read sheath current (both magnitude and polarity)
Passive design requires no power
Lightweight portable design
Internal cable storage
Very high sensitive readout for use during fault and cable identification
