STCS PLUS
Only two multipolar cables are needed, one for the primary side and one for the secondary side, each placed on its own cable reel in order to have a unique and complete connection to the power transformer.
Details

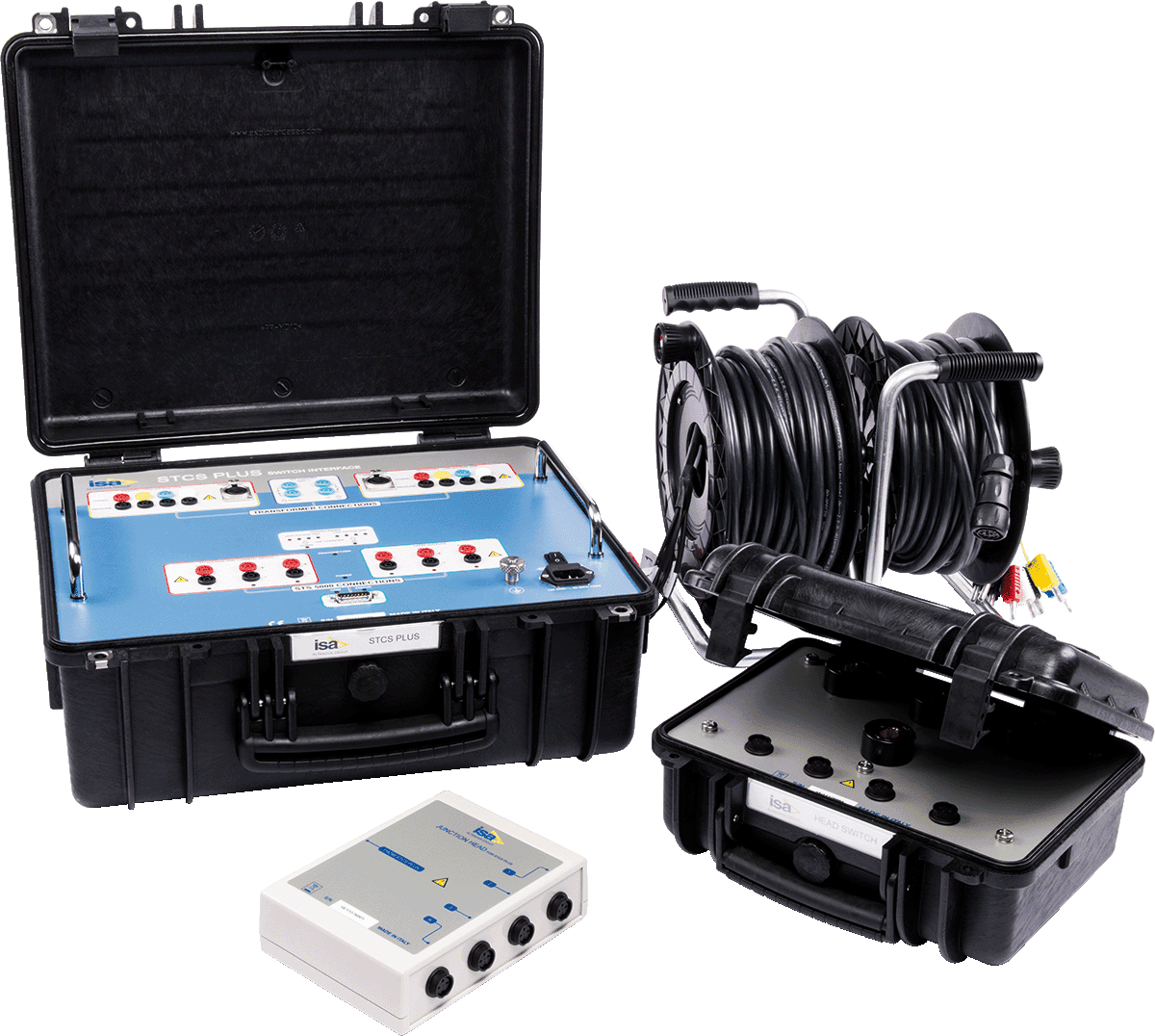

The external module STCS Plus allows to run automatically and with a single set up, any kind of tests on power transformer.
Only two multipolar cables are needed, one for the primary side and one for the secondary side, each placed on its own cable reel in order to have a unique and complete connection to the power transformer. The option includes also two junction boxes that allow an easy connection of the multipolar cables to the transformer bushings. One of these boxes is equipped with a switch high current for automatic measurement of the short circuit impedance.
Advantages
Fast measurement and single set-up for all the tests
Lower probability of connection errors
Different cable is provided according to the dimensions of the transformer
Removable lid for a more comfortable use
STCS PLUS optional set, allows to perform the following tests automatically and with a single setup connection
Ratio per tap
No load current
Vector group
Short-circuit impedance
Leakage reactance
Winding resistance
OLTC dynamic test
Demagnetization
