Doble

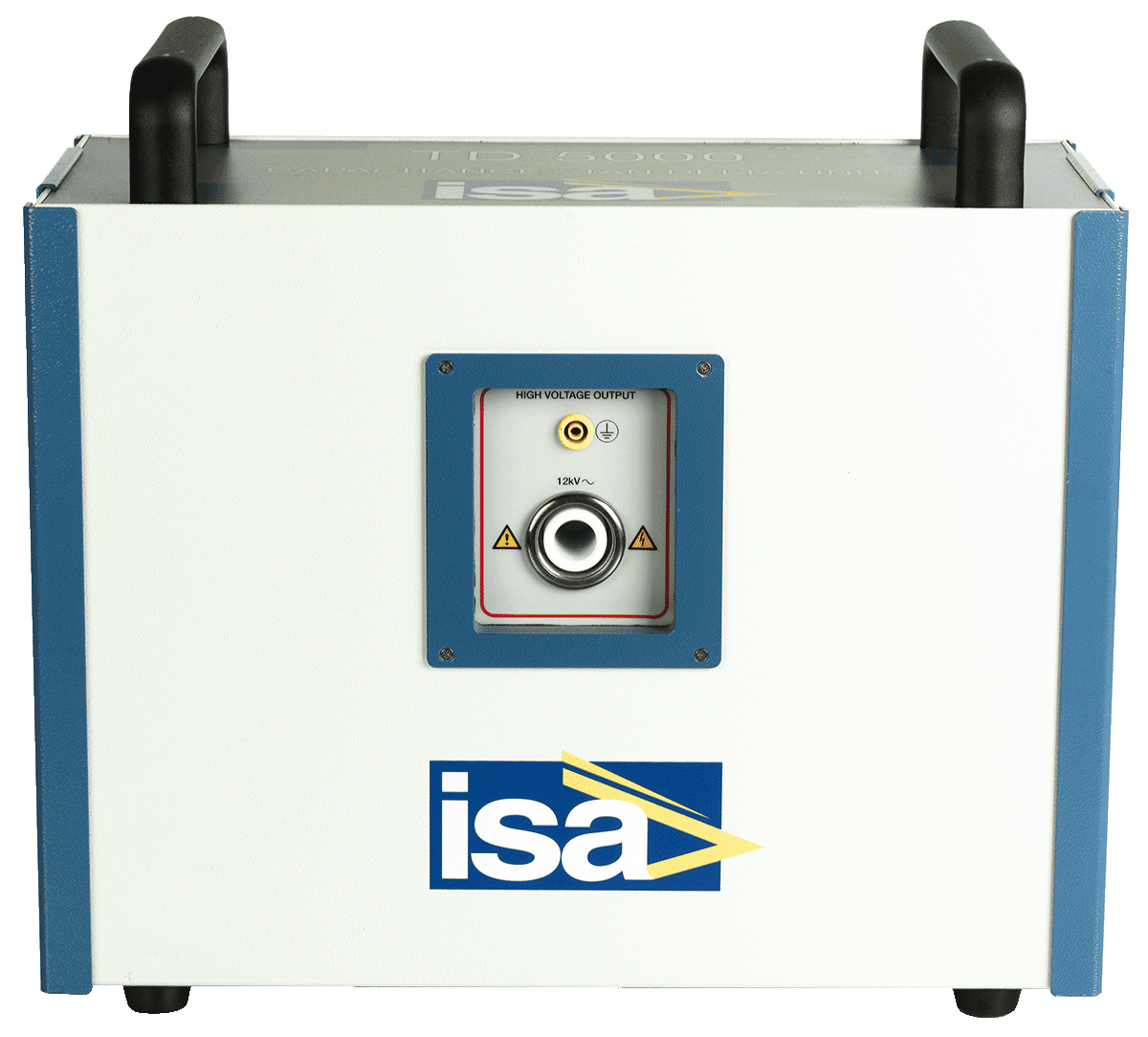

TD 5000
The high-voltage generator TD 5000 tan delta test set is a complementary module of STS series. TD 5000 designed to perform Tan Delta measurements, dissipation factor and capacitance of transformer and bushing at the frequency of the mains or in a wide frequency range.
Details
The high-voltage generator TD 5000 tan delta test set is a complementary module of STS series. TD 5000 designed to perform Tan Delta measurements, dissipation factor and capacitance of transformer and bushing at the frequency of the mains or in a wide frequency range.
Main features
Optional module for STS 5000 and STS 4000 test set, standard module for STS 3000 light
Tan Delta, capacitance, dissipation factor measurements and for exciting current test
Output voltage from 12 V up to 12 kV
Variable output frequency: 1 – 500 Hz
PADS – Power Apparatus Diagnostic Software for automatic testing, assessment and report
Compact and lightweight
Patented technology
Tests performed
Tangent Delta
Capacitance
Dissipation factor
