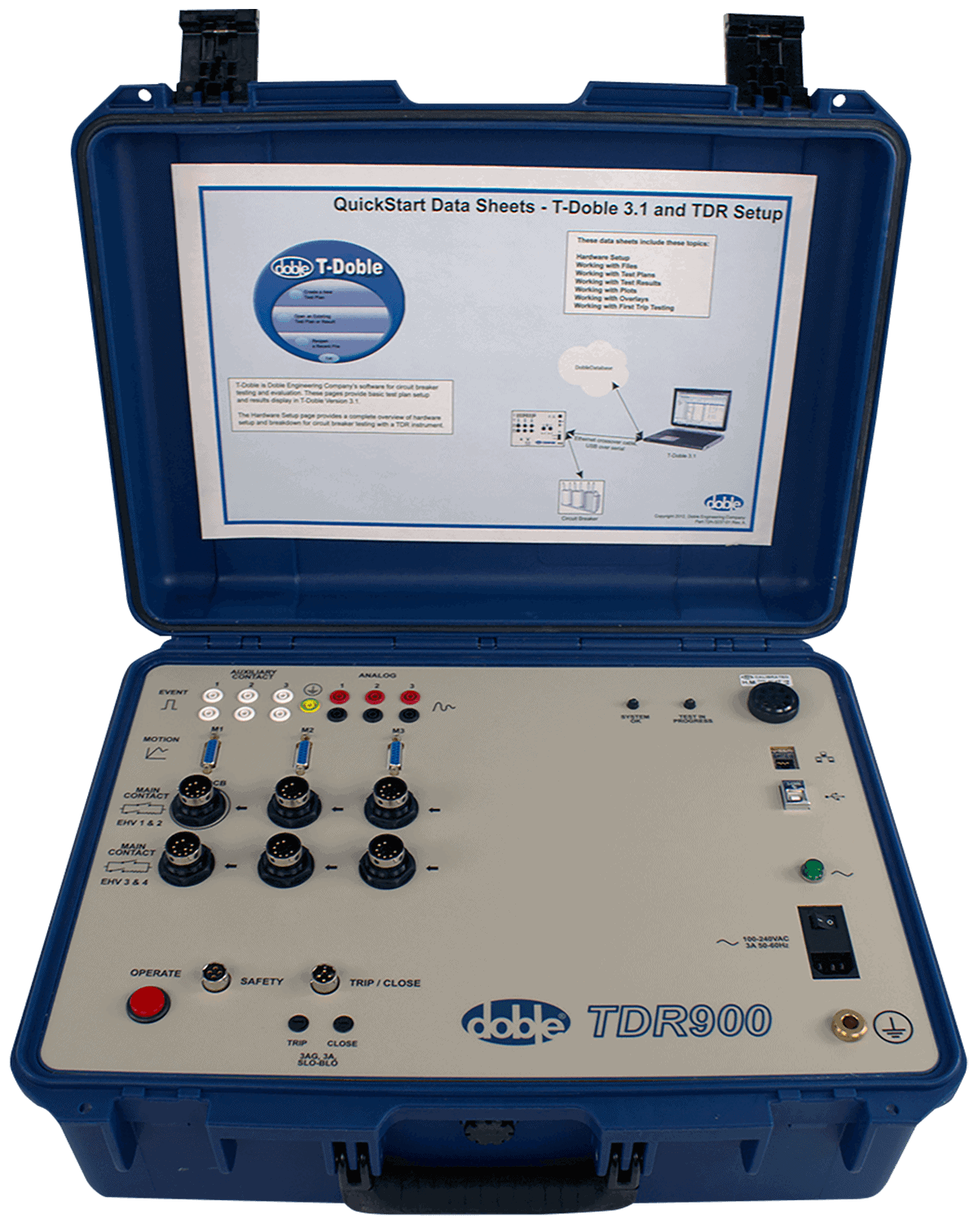

Doble
TDR900
The Doble TDR900 is your entry-level, portable circuit breaker test set. It operates and records a circuit breaker’s contact timing, motion, velocity, main contact engagement & synchronization, trip and close coil initiation and currents.
Details
Performs timing for up to 4 breaks per phase w/motion measurements for any circuit breaker
The Doble TDR900 is your entry-level, portable circuit breaker test set.
It operates and records a circuit breaker’s contact timing, motion, velocity, main contact engagement & synchronization, trip and close coil initiation and currents.
Use the TDR900 circuit breaker test set to verify control circuit, check motion of moving parts, validate time of operation and demonstrate results of circuit breaker maintenance.
Monitor breakers with up to 4 breaks per phase with motion measurements
Detect main and pre-insertion resistor engagement and timing on all 12 channels
Record up to three analog and three digital customer definable parameters
Create and manage custom circuit breaker test plans with T-Doble software
Measure additional parameters in the mechanism cabinet using Doble or 3rd party transducers
Know that your breakers can and will perform when they are needed
Easily detect main contact and resistor contact timing errors
Control with a Doble Universal Controller (DUC), tablet or PC
