Doble

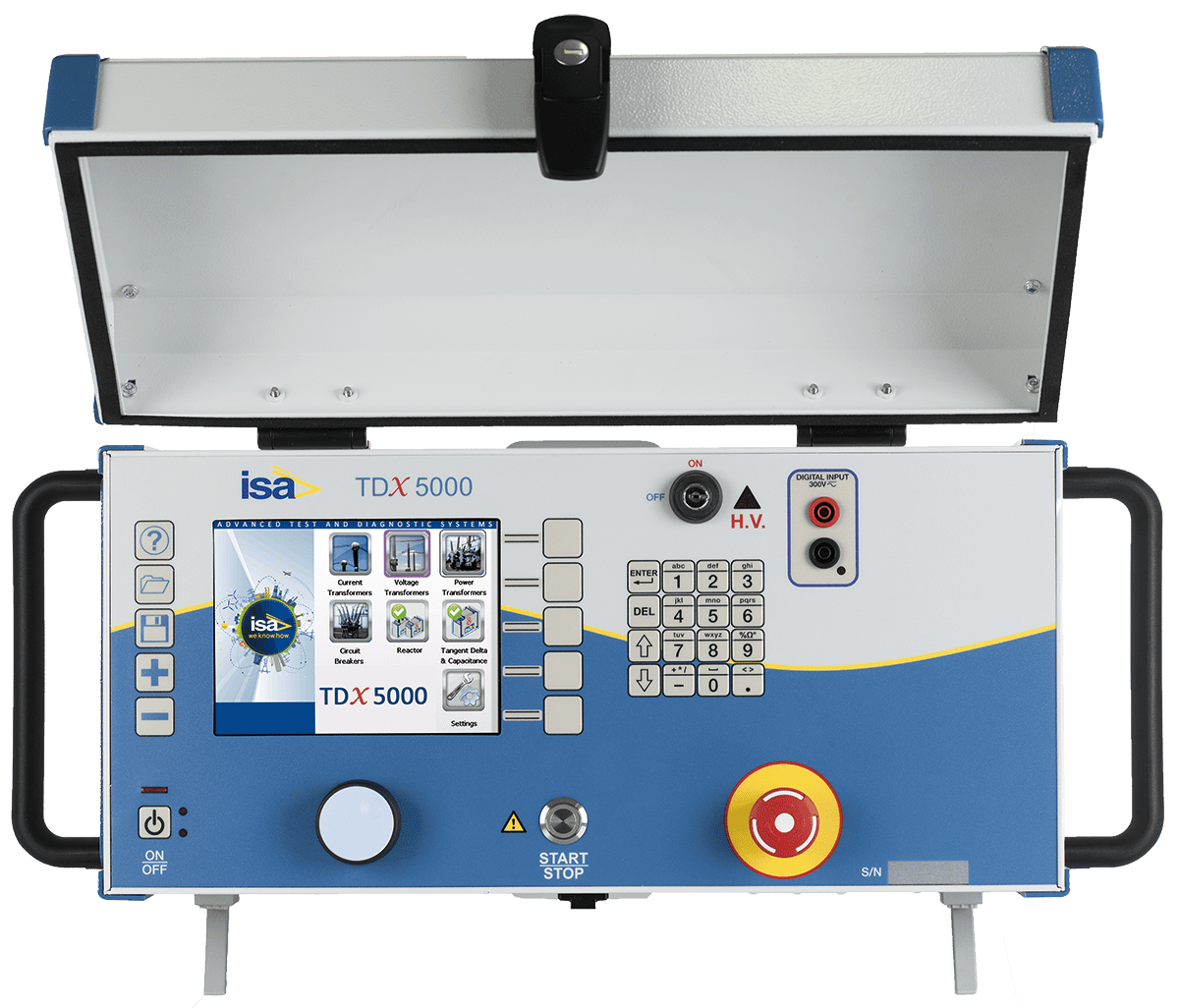

TDX 5000
TDX 5000 is developed as a compact solution for high voltage Capacitance and Tan Delta (Dissipation Factor) measurements. Using the reactor option, TDX 5000 can also perform tests on rotating machines.
Details
TDX 5000 is developed as a compact solution for high voltage Capacitance and Tan Delta (Dissipation Factor) measurements.
Using the reactor option, TDX 5000 can also perform tests on rotating machines.
Main features
Fully automatic
Variable output frequency: 1 – 500 Hz
Output voltage up to 12 kV
Tan Delta, capacitance, dissipation factor measurements and exciting current test
RCTD – compensating reactor module allows increasing the test current and getting the maximum test voltage with high capacitive burdens
PADS – Power Apparatus Diagnostic Software for automatic testing, assessment and report
USB interface and Ethernet interface for PC connection
Patented technology for capacitance and Tan Delta measurement
Light and compact
