SATIR AC-Series | AC-130 | AC-160 | AC-250

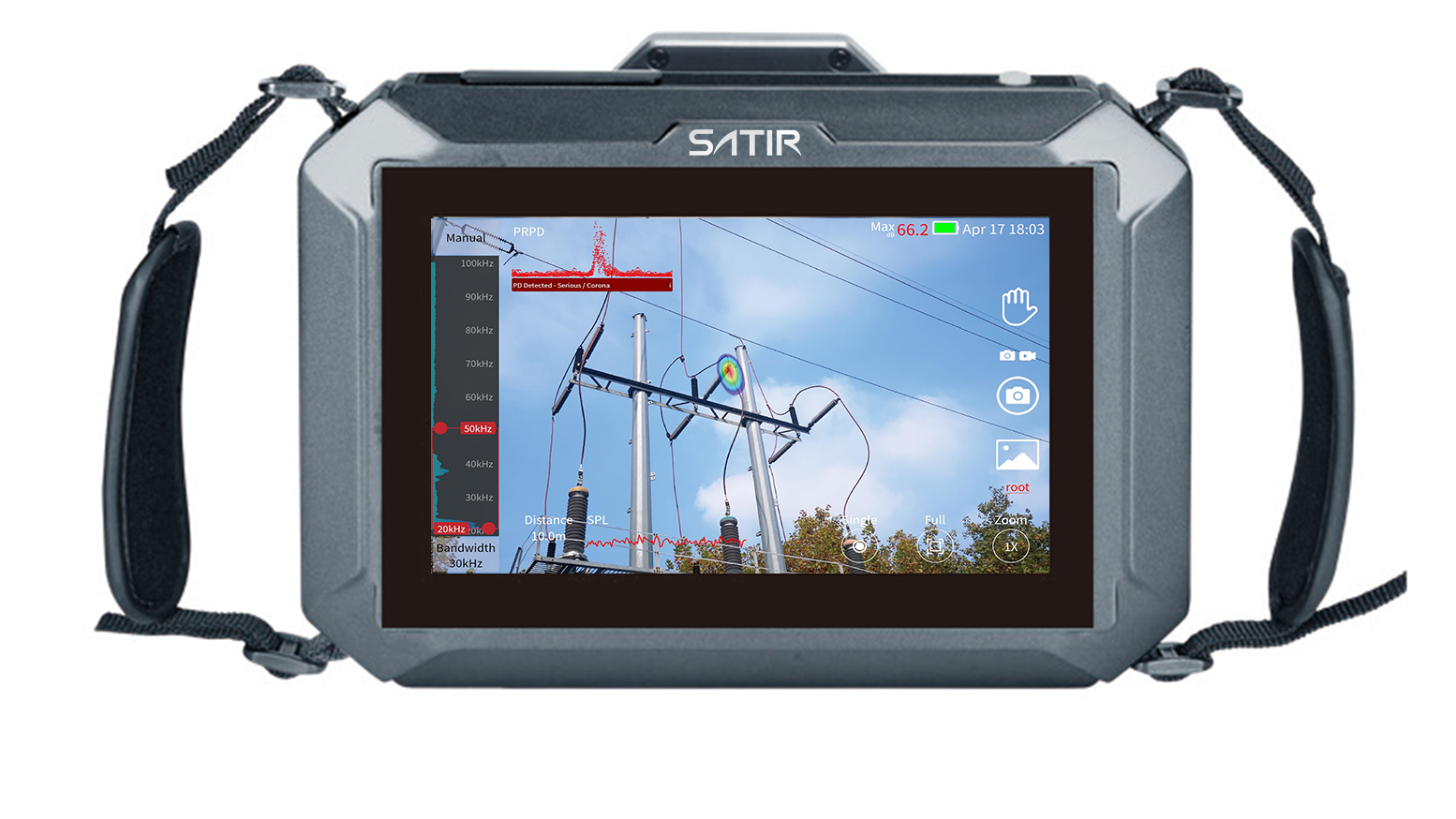

Satir introduces an innovative line of acoustic cameras tailored for electrical power utilities and leak / gas detection companies. The AC250, AC160, and AC130—feature advanced capabilities that allow users to detect and analyze sound profiles with exceptional accuracy.

The AC series boasts three distinct models: the AC250 equipped with 251 microphones, the AC160 featuring 163 microphones, and the AC130 with 136 microphones.

Each model harnesses the power of digital MEMS microphones, which possess a remarkable sensitivity of -26dBFS at 1kHz, 94BD SPL. This high sensitivity enables the identification of abnormal sounds from distances of up to 220 meters, making these cameras indispensable tools for professionals in various industries, including LDAR.

Whether it’s detecting partial discharge in electrical systems or identifying gas leaks, Satir’s acoustic cameras facilitate comprehensive monitoring and quick responses. Users can utilize built-in analysis tools to select specific frequencies and adjust detection levels, filtering out background noise for precise targeting. This feature simplifies the identification of areas of concern, allowing for timely maintenance and repairs.

Designed for challenging environments, Satir’s acoustic cameras also come with ATEX-approved housing, ensuring safety and durability in hazardous settings. Their ability to record still and video footage while zooming in for pinpoint detection makes them ideal for routine maintenance across various sectors, from power utilities to industrial leak and gas detection.

Satir’s range of acoustic cameras-, these cameras empower users to tackle complex challenges head-on, ensuring greater efficiency and reliability in maintenance operations. Embrace the future of sound detection with Satir’s acoustic cameras, designed to deliver clarity and precision in the most demanding environments.

Key Features

• Professional Maintenance acoustic cameras

• Microphone array: Optional 136,163,251

• Frequency Range: 2KHz to 130KHz

• Measurement Distance : 0.3 to 200m

• Sound Analysis: Partial discharge , leaks, buzz/ hiss sound profiles

• Additional Features : ATEX option , Wi-Fi, Bluetooth

• Designed for : professional in the electrical , power , petrochemical, refineries and maintenance industry
