SATIR ACP Series

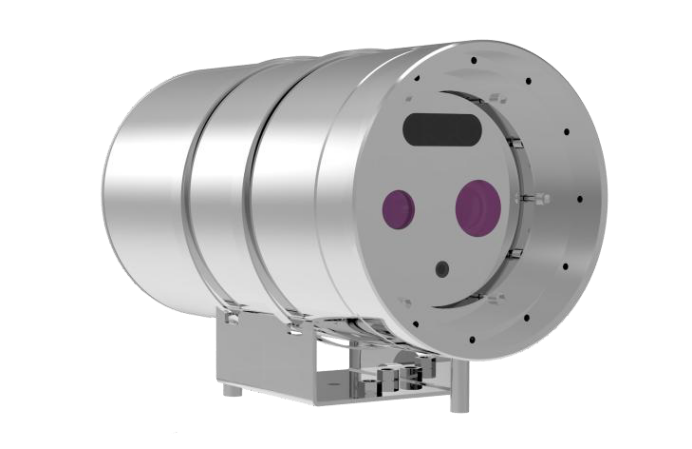

In the world of industrial applications, maintaining optimal temperatures is crucial for efficiency and safety. Enter the Air-Cooled Protective Barrel Camera (ACP256/ACP384/ACP640), a groundbreaking device designed to monitor temperature with unparalleled precision.
Key specifications
| Model | ACP256 ACP384 ACP640 |
|---|---|
| Infrared performance | |
| Detector type | UFPA |
| Spectral range | 7.5~14μm |
| NETD | ≤50mK（@30℃） ≤40mK（@30℃） |
| IR resolution | 256x192 384x288 640x512 |
| FOV | 17.4°× 13.1° 24°x18° 32.9°x24.9° |
| Spatial resolution | 1.2mrad 1.3mrad 0.92mrad |
| Frame rate | 30Hz |
| Palette | 10 pseudo colors including iron red, rainbow, grayscale, etc. |
| Analysis tool | Infinite points, infinite boxes, infinite lines |
| Temperature range | -20℃ to 410℃, up to 650℃/2000℃(optional) |
| Accuracy | ±2℃ or ±2% of reading, whichever is greater |
| Visual performance | |
| Sensor type | 1/3.02" CSP CMOS |
| Visual resolution | 2560×1440 pixels |
| Focal length | 6mm |
| FOV | 50°x28° |
| Minimum illumination | Color: 0.01 Lux@(F1.2, AGC ON), B/W: 0 Lux with IR |
| Fill light function | Infrared fill light, up to 30 meters |
| Interface | |
| Power interface | φ5.5*2.1 DC power interface |
| Network interface | 10/100M adaptive Ethernet port |
| Network Protocol | TCP/IP, IPv4, HTTP, FTP, DDNS, DHCP, RTP, RTSP, UDP, NTP, IGMP, ICMP, ONVIF |
| Application Programming Interface | Support standard protocol (ONVIF) and SDK access |
| System parameters | |
| Power supply voltage | DC12V（±25%）/PoE |
| Power consumption | ＜9W |
| Operating temperature | Without air cooling: -20°C to 65°C; With air cooling (example application: 20°C inlet air temperature, 7 bar pressure): When the gas flow rate is greater than 15.34 m³/h, the instrument operating ambient temperature can reach a maximum of 70°C; When the gas flow rate is greater than 32.54 m³/h, the instrument operating ambient temperature can reach a maximum of 85°C; When the gas flow rate is greater than 37.82 m³/h, the instrument operating ambient temperature can reach a maximum of 100°C; When the gas flow rate is greater than 53.79 m³/h, the instrument operating ambient temperature can reach a maximum of 120°C. |
| Encapsulation | IP66 |
| Weight | 5.5Kg |
| Shell material | 304 stainless steel |
Details
Air-cooled Protective Barrel Camera - Revolutionizing Temperature Monitoring
In the world of industrial applications, maintaining optimal temperatures is crucial for efficiency and safety. Enter the Air-Cooled Protective Barrel Camera (ACP256/ACP384/ACP640), a groundbreaking device designed to monitor temperature with unparalleled precision. Utilizing advanced dual spectrum thermal imaging technology, these cameras operate on the principle of infrared radiation, providing non-contact, real-time temperature monitoring that is essential for modern industries.
The ACP series stands out due to its robust protection and low power consumption. These cameras are built to withstand harsh environmental conditions, ensuring reliable performance in demanding settings. Their easy system integration allows for seamless incorporation into existing setups, making them an ideal choice for various industrial applications
The versatility of the ACP256, ACP384, and ACP640 extends across multiple sectors. From sintering and coking to smelting and rolling, these thermal imaging cameras play a vital role in process control across various facilities. They’re also invaluable in profile manufacturing, color coating, power generation, and the production of oxygen and nitrogen, underscoring their relevance in today's industrial landscape.
Key Features
Application software with analysis tools such as point, line, and area temperature measurement
Designed to work in hazardous and high temperature environment up to 120 C - IP66
Optional detector resolution from 256x192 up to 640x512
Auto crosshair tracking of hot spots
Temperature range -20 to 650 - optional 2000C
Shutter correction: timed, differential, or manual
3D noise reduction and detail enhancement with adjustable palettes
Supports mirroring, digital zoom, and local video output
Compatible with RTSP, ONVIF, and other protocols
SDK for client integration
