SATIR ACW136
The ACW136 Acoustic Camera is an advanced diagnostic tool engineered for high accuracy gas leak detection, partial discharge identification, and a wide range of industrial acoustic monitoring applications.
Key specifications
| Model | ACW136 |
|---|---|
| Acoustic parameters | |
| Microphone | 136 digital silicon MIC arrays |
| Frequency bandwidth | 0kHz ~ 100kHz |
| Distance | 0.3-150m (related to the size of the sound source signal) |
| Pseudo-colour audio and video mode | White and black,rainbow, iron red, fusion, rain, blue and red, etc. |
| Sound intensity display | Highest point |
| Acoustic detection mode | Gas leak detection mode, partial discharge detection mode |
| Sound image frequency | 25FPS |
| Minimum leakage | 0.5m, minimum detectable leak of 0.078ml/s at 0.6MPa 1m, minimum detectable leak of 0.122ml/s at 0.5MPa |
| Sound intensity range | Lower limit: <-15 dB; Upper limit: >120 dB |
| PRPD spectrum | Support |
| MIC sampling rate | 192K |
| Gas leakage loss display | Support |
| Gas leakage display | Support |
| Gas leakage level display | Support |
| Partial discharge detection | Support |
| Rule frame | Support 1 center rectangular regular frame |
| Visible light parameters | |
| Focal length | 6.4 mm |
| Field of view | 50.2° (H) × 35.4° (V) |
| Focus mode | Fixed focus |
| Image display | |
| Display | 4.3'' LCD capacitive touch screen 800 × 480 |
| Image mode | 8 pseudo-colour modes |
| System functions | |
| HDMI | Support |
| Text annotation | Support |
| Voice annotation | Support (60 s) |
| WIFI | Support |
| Image format | .jpeg |
| Storage | 64 GB |
| Video format | .mp4 |
| Battery type | Lithium-ion battery |
| Battery working time | 2 hours, field replaceable, rechargeable |
| Weight | <1.2kg |
| Dimensions | 310.4mmx165mmx117mm |
Details
Introduction

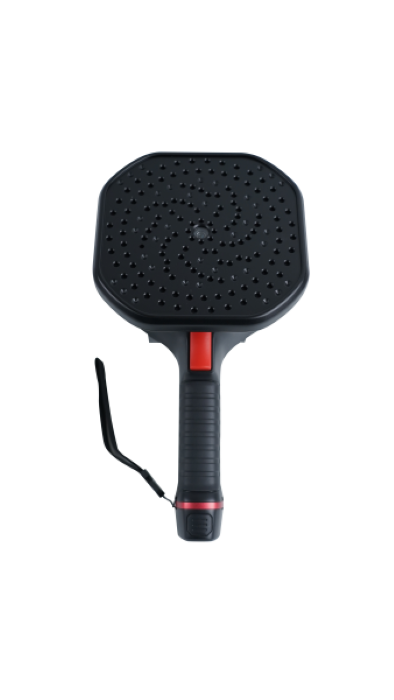

The ACW136 Acoustic Camera is an advanced diagnostic tool engineered for high accuracy gas leak detection, partial discharge identification, and a wide range of industrial acoustic monitoring applications. Equipped with a 136 element digital silicon microphone array, it delivers exceptional sound localization and visualization performance.
Designed for demanding environments, the ACW136 supports both photo capture and video recording, enabling comprehensive documentation and analysis of detected anomalies.
Key Features
136‑MIC Digital Array for high‑precision acoustic imaging
0–100 kHz Frequency Range covering audible and ultrasonic detection
Long Detection Distance: 0.3 to 150 meters
Gas Leak & Partial Discharge Detection for industrial diagnostics
Photo & Video Recording for documentation and analysis
