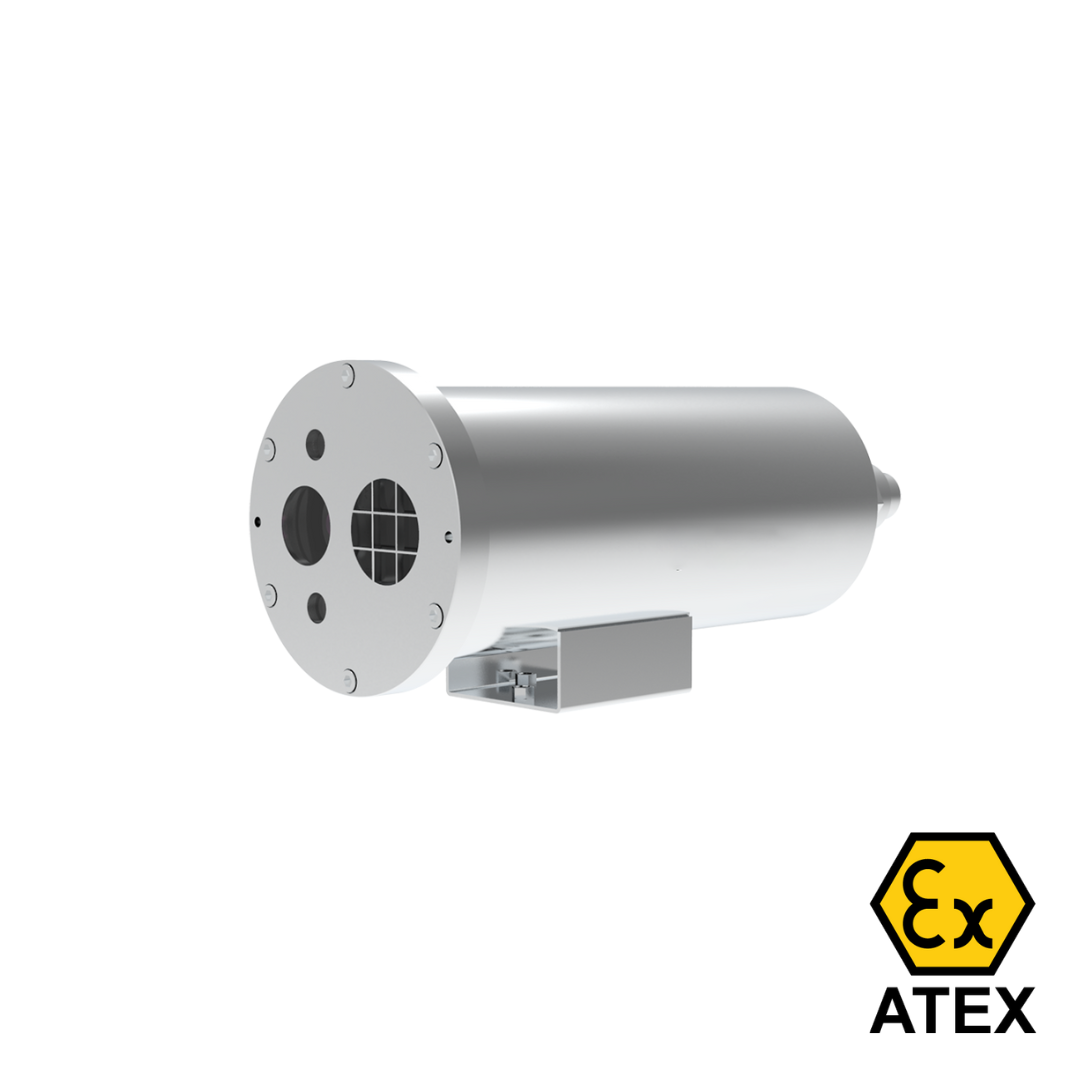

SATIR EXS300/EXS600
In today’s high-tech industrial landscape, safety and efficiency are paramount. Enter the dual-spectrum explosion-proof PTZ thermal camera—a device that marries cutting-edge technology with ATEX encapsulation features.
Key specifications
| Model EXS300 EXS600 Infrared performance Detector type Uncooled FPA Spectral Range 7.5-14μm IR Resolution 384*288 640*512 Pixel size 17μm 12μm Thermal Sensitivity/NETD ＜40mk (@30℃) ≤40mk @30℃ Focal Length 6.7mm 13mm 6.7mm 13mm Field of View 44.2°x33.9° 23.6°x17.8° 59.6°x46.5° 24.1°x18.2° Spatial resolution (IFOV) 2.61 1.31 1.79 0.92 Visible light performance Sensor type 1/2.7" Progressive Scan CMOS Resolution 1920×1080 Focal length 6mm Field angle 52°x38° Dynamic range 120dB Fill distance Infrared supplementary light，maximum distance 30 m Temperature measurement performance Thermometric analysis 20 points, 20 boxes, 10 lines Object temperature range -20 ℃~150 ℃（low temperature range），0 ℃~410℃ （medium temperature range） Optional temperature range +300 ℃~+650 ℃\+300 ℃~+2000 ℃\other ranges (high temperature range) Temperature measurement accurary ±2℃ or 2% of readings Interface Power interface AC220V power interface Network interface One RJ45 interface 10M/100M adaptive Ethernet port System parameter Supply voltage AC 100～240V Operating temperature and humidity -40℃~70℃，＜90% RH Protection level IP68(2m/2h) Material 304 stainless steel Explosion-proof sign Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db Please be aware specifications can vary from time to time |
|---|
Details
Exploring the Benefits of Dual-Spectrum ATEX Proof PTZ Thermal Cameras
In today’s high-tech industrial landscape, safety and efficiency are paramount. Enter the dual-spectrum explosion-proof PTZ thermal camera—a device that marries cutting-edge technology with ATEX encapsulation features. This EXS range comes in two models EXS300 and EXS600, which means either a 384x288 or a 640x512 resolution thermal camera. It has been designed to work in the harshest environments as is ATEX. Due to the explosive proof encapsulation.
One of the standout characteristics of these thermal cameras is their compact size and low power consumption. Designed for easy integration, they can seamlessly fit into existing systems without requiring extensive modifications. This makes them an attractive option for industries focused on maximizing operational efficiency while minimizing downtime. Each model has two optional lenses for the infrared cameras, either a 6.7mm or 13mm.
Moreover, the dual-spectrum functionality enhances the camera's versatility. It allows users to visualize temperature changes effectively, helping detect potential issues and protects the critical assets within the hazardous area before they escalate. This feature is critical for proactive maintenance and fault detection, particularly in environments where equipment failure could lead to costly and hazardous situations and are not always accessible.
The versatility of the explosion-proof PTZ thermal camera makes it suitable for numerous applications. In electric power, it can be employed for routine temperature monitoring, ensuring that machinery operates within safe limits. Similarly, in industrial automation, these cameras assist with critical process controls, enhancing overall productivity.
In conclusion, the dual-spectrum explosion-proof PTZ thermal camera is more than just a monitoring device; it’s a smart investment for any industry prioritizing safety and operational efficiency. By harnessing the power of infrared technology, businesses can easily integrate this camera into their workflows, paving the way for smarter, safer industrial practices. As industries evolve, the need for reliable, real-time monitoring solutions will only continue to grow, making this advanced thermal camera an essential tool for a secure future.
Key Features
Precise Temperature Measurement: Point, line, and area.
High-Sensitivity Detector: With contrast control.
Auto Hot-Spot Tracking: Locates and tracks the hottest point.
Accurate Measurement: ±2℃ or 2% accuracy.
Manual Control: Adjust timing and temperature.
Enhanced Imaging: Features 3D noise reduction and false colour.
Flexible Display: Digital zoom and mirror image.
Network Compatibility: Supports RTSP, ONVIF, GB/T28181 and other protocols.
Lossless Compression: Efficient real-time data streaming.
Compact Design: Lightweight, low power, and easy to integrate.
