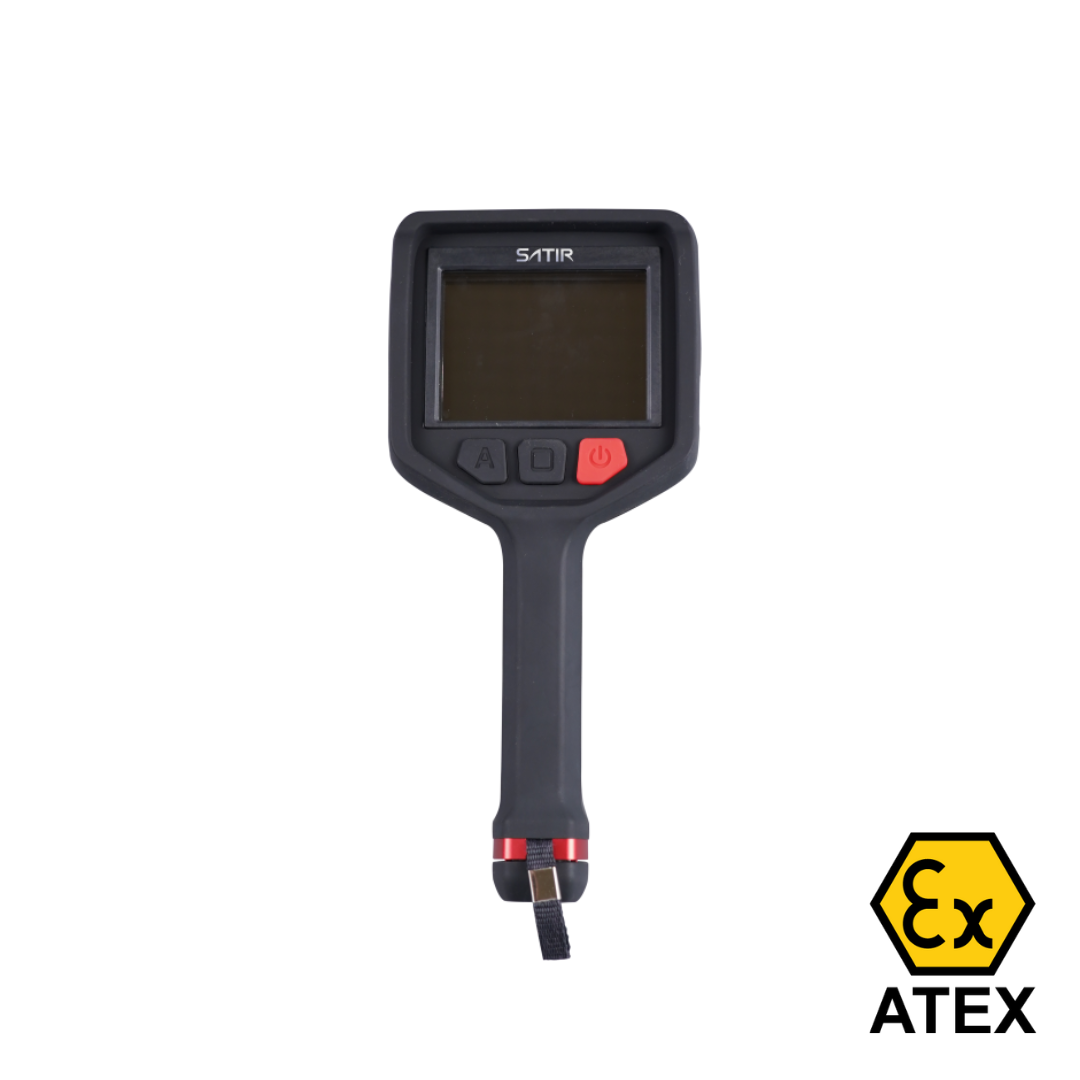

SATIR GF30

Exploring the SATIR GF Series: Firefighting Thermal Cameras GF30

In the realm of firefighting, having the right equipment can make all the difference between life and death. The SATIR GF series of thermal cameras—GF60, GF30, and GF20—are designed to equip firefighters and fire wardens with the advanced tools they need to operate effectively in hazardous conditions. These sophisticated devices are tailored for both search and rescue operations and fire detection, ensuring safety and efficiency in their missions.

Advanced Thermal Resolution Options

The SATIR GF series offers three distinct thermal resolutions, providing flexibility based on specific operational needs. The GF20 features a resolution of 160x120, while the GF30 boasts a higher resolution of 384x288. For those needing the utmost clarity, the GF60 provides a remarkable 640x480 resolution. This range allows users to select the camera that best fits their requirements, whether they are responding to a structure fire or conducting a search in the wilderness.

Built to withstand harsh conditions, these thermal cameras excel in high-temperature environments, capable of functioning in temperatures up to 2000°C for short periods. This durability makes them invaluable tools for firefighters who need reliable technology during critical operations. Furthermore, the housing is designed to protect the internal components, ensuring consistent performance even in the most demanding situations.

The SATIR GF series comes loaded with features that enhance usability and effectiveness. A built-in laser pointer aids in precise targeting, especially when identifying potential hazards or human presence. The digital zoom function allows operators to get closer views of distant individuals or hot spots, enabling better decision-making during emergencies. Additionally, the large clear screen ensures that firefighting personnel can detect heat signatures and identify hot spots, even when wearing breathing apparatus.

To further ease operations, the GF series includes an optional vehicle-mounted charging unit, ensuring that the camera is always ready for action. This convenience is crucial during extended missions where downtime could have serious consequences. Moreover, depending on the model, ATEX certification is available, signifying compliance with safety standards when working in explosive atmospheres—adding another layer of protection for users.

The SATIR GF series thermal cameras are essential tools for modern firefighting, equipped to handle the challenges faced in emergency situations. With their varied thermal resolutions, robust design, and user-friendly features, the GF60, GF30, and GF20 stand out as reliable partners for firefighters and rescue teams alike. Investing in such technology not only enhances safety but also dramatically increases the chances of successful operations in critical scenarios.

Key Features

• 384x288 IR Resolution

• 40°C~1000°C Temperature Range ，1500/2000°C optional

• Designed to work in extreme temperature environments (250C for short periods)

• Different Colour Palettes

• Still and video recording via SD Card

• Laser Pointer

• 4 Hour Battery Life

• ATEX

• Vehicle mount
