SATIR MT256/MT384
The introduction of the MT256/MT384 Series miniature thermal camera module stands out as a significant advancement. Designed specifically for seamless integration with Android devices, this innovative tool offers exceptional capabilities right at your fingertips.
Key specifications
| Model | MT256 MT384 |
|---|---|
| Infrared Performance | |
| Sensor Type | Vanadium Oxide Uncooled Detector |
| Resolution | 256x192 384x288 |
| Pixel Pitch | 12μm |
| Response Band | 7.5-14μm |
| NETD | ≤50mK (@25℃) ≤40mK (@25℃) |
| Field of View | 18.1°x 13.6° 26.4°x 19.8° |
| Spatial Resolution | 1.2mrad 1.2mrad |
| Image Frame Rate | 50Hz * Inside the EU, outside 9 Hz |
| Image Display | |
| Palettes | Including iron red, white hot, and black hot |
| Image Enhancement | Yes |
| Temperature Measurement Parameters | |
| Measurement Tools | Supports 5 points, 5 lines, and 5 areas |
| Temperature Range | -20°C to 550℃ |
| Temperature Accuracy | ±2°C or ±2% of reading (whichever is greater) |
| System Parameters | |
| Operating Temperature | -40 to 60℃ |
| Weight | 46g 48g |
| Dimensions | 50x41x33.3mm |
| Power Consumption | ≤0.5W ≤0.55W |
| Power and Data Port | TYPE-C |
| Power Input | DC5V |
| Supported Operating Systems | Android 9.0 and above |
| Please be aware specifications can vary from time to time |
Details

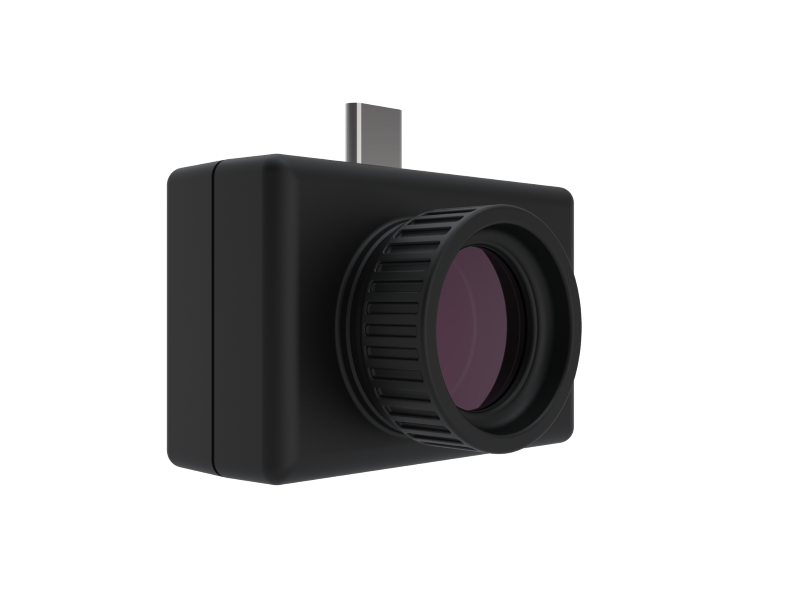

Mobile Thermal Camera Module Adapter
The introduction of the MT256/MT384 Series miniature thermal camera module stands out as a significant advancement. Designed specifically for seamless integration with Android devices, this innovative tool offers exceptional capabilities right at your fingertips.
Its lightweight design, high-resolution capabilities, and extensive temperature range make it a standout choice. Ensuring that you won’t have to compromise on quality when using a portable device. Provides impressive sensitivity, capturing even the subtle temperature differences that other devices might miss.
Whether you're in construction assessing insulation quality, a technician diagnosing electrical issues, or simply an enthusiast exploring the thermal world, this module delivers professional-grade thermal imaging in the palm of your hand. Transforming your Android device into a sophisticated thermal imaging tool, With intuitive software, users can easily visualize and interpret thermal images, making it an essential addition for professionals and hobbyists alike.
Key Features
Smartphone Compatibility: Plugs directly into Android devices via a Type-C port.
Thermal Resolution: 256x192 or 384x288.
Temperature Range: -20°C to 550°C.
Image Analysis: Point, line, and area temperature measurement.
Ultra-Compact & Lightweight: Designed for easy portability and integration.
Low Power Consumption: Minimizes drain on your phone's battery.
Ideal for Hobbyists and professionals entering the world of infrared
