SATIR PD600 & PD300

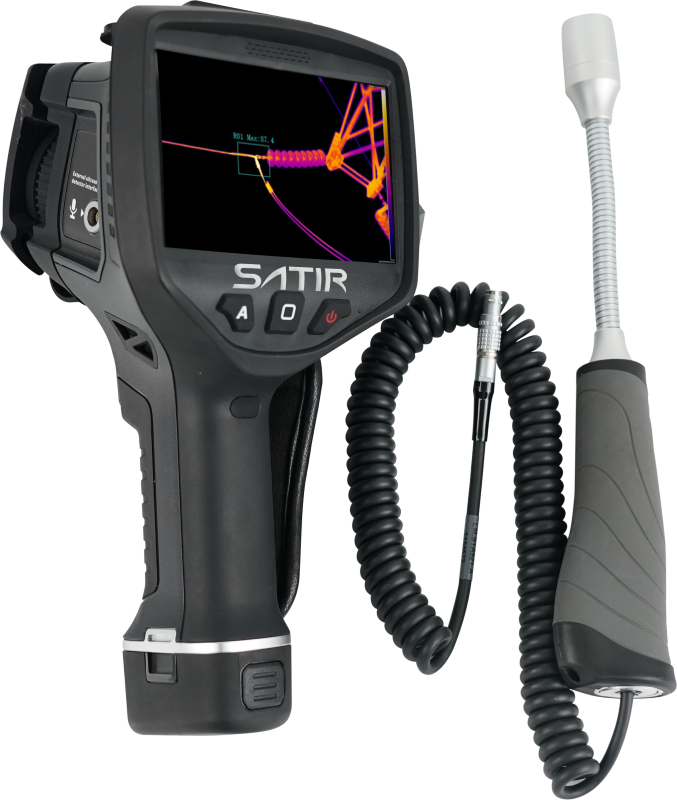

Among the latest advancements in this domain are the SATIR PD600 and PD300 models, (640x480 / 384x288 thermal detector respectively )—cutting-edge thermal and partial discharge cameras designed specifically for electrical professionals.

thermographic inspectionThermographyAvailable on request

Technical sales support

Response within one business day

Key specifications

Model	PD600 PD300
Detector type	Uncooled FPA
IR Resolution	640x480 384x288
Thermal Sensitivity/NETD	<0.04°C@30°C
Spectral Range	7.5~14μm
Field of View	24.5°x18.2°
Spatial resolution (IFOV)	0.66mrad 1.31mrad
Focal Length	18mm 13mm
Focus	Manual
Optional lens	48°/ 12°/ 6°
Image Display
Display	5"sunlight visible touch screen
Display resolution	800x480
Visible camera	5MP visual camera with built-in LED photo lamp
Measurement & Analysis
Object temperature range	-20°C~+650°C, Up to +2000°C(optional)
Temperature measurement accuracy	±2°C or 2%of readings
Spot, line and area setting	10 points,10 boxes and 5 lines
Partial discharge detection
Detection method	Ultrasonic or TEV
Ultrasonic
Measuring range	-8dBμV~65dBμV
Measurement accuracy	±1dB
TEV
Measuring range	0dBmV~60dBmV
Measurement accuracy	±1dB
Image storage And Transmission
Storage Media	32G removable SD card
Thermal image format	jpg/.png(including full temperature data)
Thermal video format	Real-time radiometric recording(.irv)/.H264
Video output interface	Micro HDMI
Power System
Battery type	Detachable rechargeable lithium battery
Battery voltage	DC12V
Environmental Parameters
Protection level	IP54
Operation temperature	-20°C~55°C
Physical Characteristics
Weight	1.17kg(battery included) 1.1kg(battery included)
Size	272x135x136mm

Details

SATIR PD Models: (PD300-PD600)The Future of Electrical Safety

In the ever-evolving field of electrical engineering, ensuring the safety and reliability of systems is paramount. Among the latest advancements in this domain are the SATIR PD600 and PD300 models, (640x480 / 384x288 thermal detector respectively )—cutting-edge thermal and partial discharge cameras designed specifically for electrical professionals. These innovative tools combine thermal imaging with partial discharge detection, providing engineers with a powerful solution for identifying potential issues within substations and various electrical applications.

The SATIR PD600 and PD300 stand out due to their unique integration of thermal and partial discharge detection technologies. Thermal cameras are adept at detecting abnormal temperature profiles, allowing engineers to identify overheating components before they lead to catastrophic failures. In contrast, partial discharge cameras utilize specialized acoustic imaging techniques to pinpoint and analyse partial discharges in high-voltage systems. This dual functionality empowers engineers to gain comprehensive insights into the health of electrical equipment, ensuring they can take proactive measures.

Utilizing the SATIR PD600 and PD300 models not only enhances diagnostic capabilities but also significantly boosts safety in electrical operations. The ability to detect potential hazards early mitigates the risk of equipment failures, ensuring uninterrupted service and protecting valuable assets. By combining the strengths of both thermal and acoustic technologies, these cameras provide a holistic view of system integrity, enabling timely interventions that prevent downtime.
