Satir

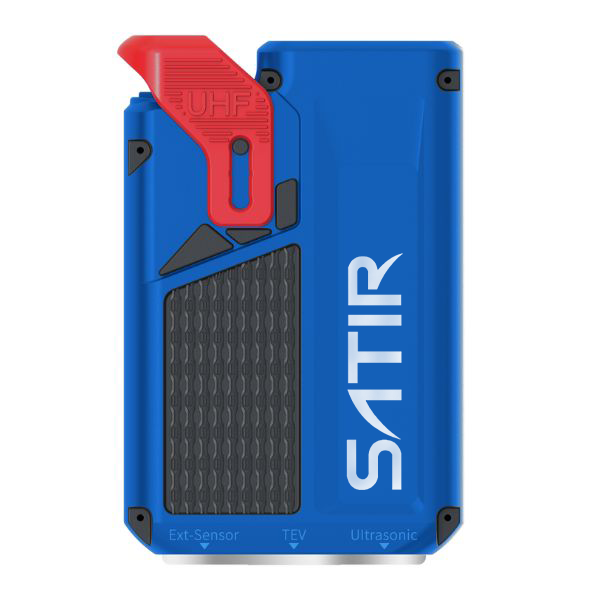

SATIR PDM5000
SATIR PDM5000 is a new release that is an multi-functional partial discharge detector that is suitable for industry.
Key specifications
| Model | PDM5000 |
|---|---|
| Detection method | UHF, HFCT, TEV, AE, AA |
| UHF ultra high frequency detection frequency band | 300～1500MHz |
| UHF built-in filter | All pass, low pass, high pass |
| UHF ultra high frequency sensor equivalent height | >10mm |
| UHF ultra high frequency detection dynamic range | -70～0dBm |
| HFCT high frequency detection band | 2~30MHz |
| HFCT high frequency sensor transmission impedance | >10 mV/mA |
| HFCT high frequency detection dynamic range | 0～60dBmV |
| AE contact ultrasonic detection frequency band | 20～300kHz |
| AA non-contact ultrasonic detection frequency band | 40±1kHz |
| AA ultrasonic detection dynamic range | -8～68dBμV |
| AE ultrasonic testing dynamic range | 0～60dBmV |
| TEV transient ground voltage detection frequency band | 3~100MHz |
| TEV transient ground voltage detection dynamic range | 0～60dBmV |
| Operating temperature | -20 ~ +45 ℃ |
| Host size | 158*104*36.8mm |
| Data transmission method | WIFI |
| Power frequency synchronization method | Synchronization for the internal(50Hz) and power supply |
| Power supply | Built-in lithium battery and external power bank available |
Details
Learn about the PDM5000
SATIR PDM5000 is a new release that is an multi-functional partial discharge detector that is suitable for industry.
Key Features:
Support UHF, HFCT, TEV, AE, AA detection
Using mobile phones or tablets for control
Detection data can be shared in real time
Built-in selectable band filter
Supports on-site photo and video shooting
