SATIR PX-600

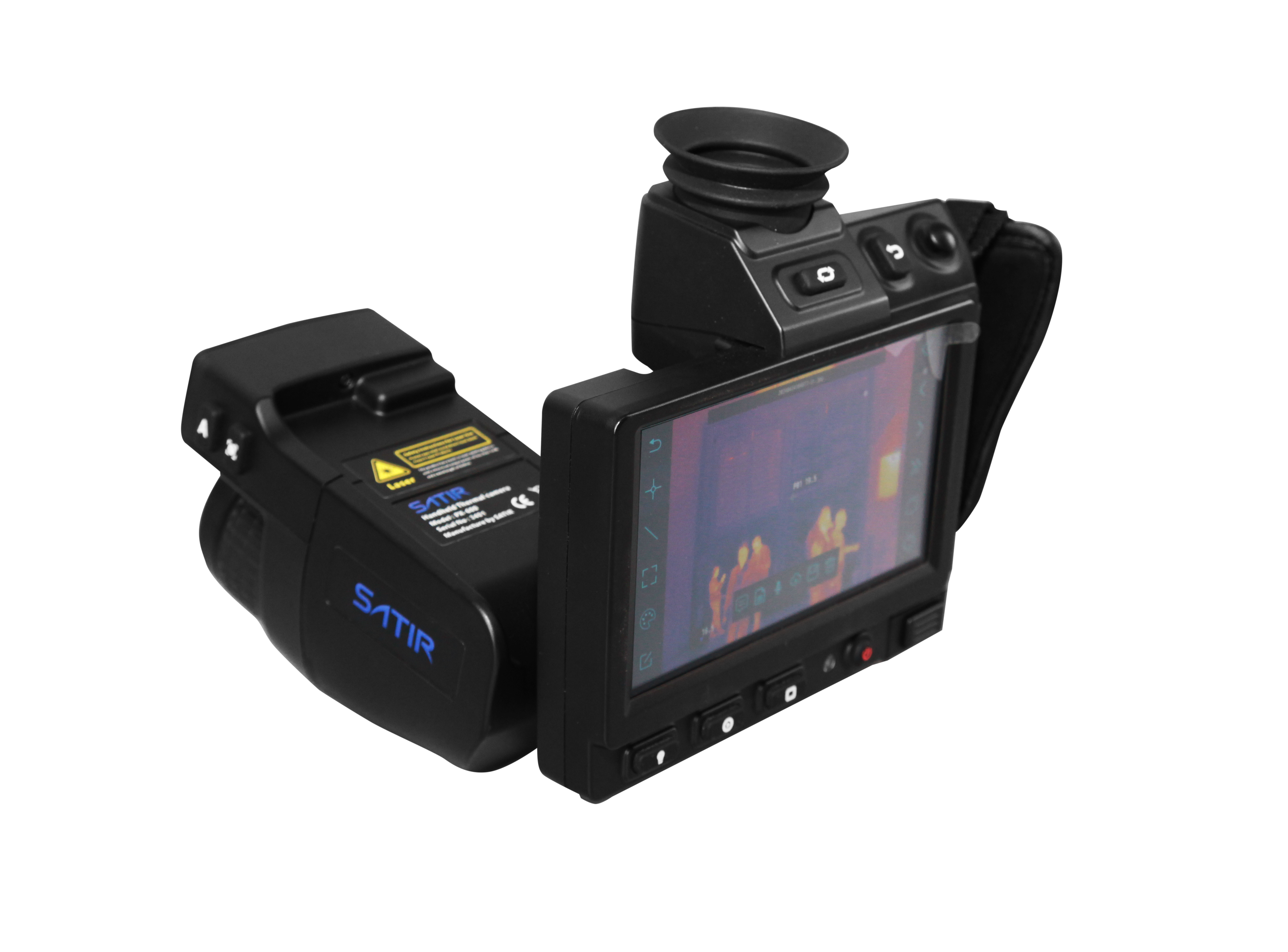

The Satir PX600 High-Resolution Thermal Camera embraces a high-level detector 640x480 with a super resolution option, 1280x960.
Key specifications
| Thermal Camera | |
|---|---|
| Detector type | 640x480 UFPA, |
| Thermal sensitivity | ≤0.04℃@30℃ |
| Spatial resolution | 0.36mRad |
| FOV/Min. Focus distance | 24°x18°/0.35m; 6°x4.5°/2m |
| Ergonomic Optical | 160° |
| Spectral range | 7.5μm~14μm |
| Frame rate | 30Hz |
| Focus | Manual, Electric, Automatic |
| Digital zoom | 1x to 10x continuous |
| Image presentation | |
| LCD display | 5.8 inch capacitive touch screen, 1024 x 768 pixels |
| Image mode | IR/Visual/Fusion/PiP/MIF |
| Digital camera | HD 5MP |
| Image enhancement | Yes |
| Image storage | |
| Type | 32GB removable SD card |
| Thermal Image Format | Standard JPEG, including measurement data, on memory card |
| Temperature measurement | |
| Measurement range | -20~650°C, up to 1500/2000°C (Optional) |
| Pseudo color | 10 types including Iron, Iron-inverted, Grey, Grey-inverted |
| Analysis tool | 10 movable spots, auto hot/cold/averange, 10 area boxes, 5 line, isotherm, above, below, interval, alarm |
| Accuracy | ±1°C or ±1% of readings |
| Measurement Correction | Emissivity, reflected temperature, relative humidity, object distance, offset, ambient |
| Environment specification | |
| Operating temperature range | -20~55°C |
| Ambient temperature range | -40℃~+70℃ |
| Protective performance | |
| Encapsulation | IP54 |
| Shock/Vibration | 25G/2G |
| Physical characteristic | |
| Weight | 1.6 KG |
| Dimension | 210x119x174 mm |
| Power system | |
| Battery Type | Lithium-ion battery |
| Battery operating time | > 3hours |
| Ports | |
| Output ports | USB, Bluetooth, WIFI, HDMI |
| Other features | |
| Viewfinder | Yes, 1024x768 pixels |
| Lens Identification | Yes |
| Super Resolution | Yes |
| Illuminator | Yes, Automatic |
| Laser Pointer | Yes |
| Laser ranging | Yes, 40 meters |
| QR code and Bar code | Yes |
| Video record | Yes |
| Auto Shutdown & Sleep Mode | Yes |
| GPS | Yes |
| 4G | Yes |
| Accessories | Hardcase, Handstrap, Protective Bag, Cables, Adaptor, Manual Book, Software SATIR Report Pro |
Details
Satir PX600 High-Resolution Thermal Camera
The Satir PX600 High-Resolution Thermal Camera embraces a high-level detector 640x480 with a super resolution option, 1280x960.
One of the standout features of the PX600 is its broad temperature range. This model operates seamlessly from -20°C to +410°C, with an optional extension reaching up to +2000°C. Such flexibility makes it an indispensable tool for professionals across various industries, especially in the power and electrical sectors. The ability to analyse high-voltage electrical pylons and other targets from a distance ensures that users can operate safely while maintaining visibility.
The Satir PX600 is designed with user experience in mind. Its large 5.8-inch touch screen offers an intuitive interface that simplifies navigation. Whether utilising the auto focus or manually adjusting the lens via buttons and lens rings, capturing high-quality stills and video recordings has never been easier. This ergonomic design allows for quick adjustments, making it ideal for fast-paced environments.
For experienced thermographers, the PX600 offers excellent image quality, and optional lenses are available on request. Its superior imaging capability enables users to detect anomalies at considerable distances, enhancing the effectiveness of inspections. With the added advantage of an x8 digital zoom, this camera transforms how professionals approach thermal diagnostics, ensuring that no detail goes unnoticed.
Satir PX600 Super High-Resolution Thermal Camera stands out as an exceptional tool for those in need of advanced thermal imaging solutions. With its remarkable resolution, extensive temperature range, and user-friendly features, it perfectly caters to the demands of the power and electrical industries, ensuring safety and precision in every application.
Key Features:
Experienced Professional Thermographer
Image Mode; IR image / Visual image (5MP) / Duo-vision / PIP/ MIF
Thermal Resolution: 640x480 plus super resolution
Temperature Range:-20°C to 410°C upto 2000°C .
Accurate Measurement: ±2°C or 2%.
Image Analysis: point, line, and area temperature measurement.
Image storage: Still , Video and real-time radiometric video
Additional Features : Wi-Fi, GPS , Bluetooth , digital zoom
Designed for : Experienced Professional thermographers all industries and applications
