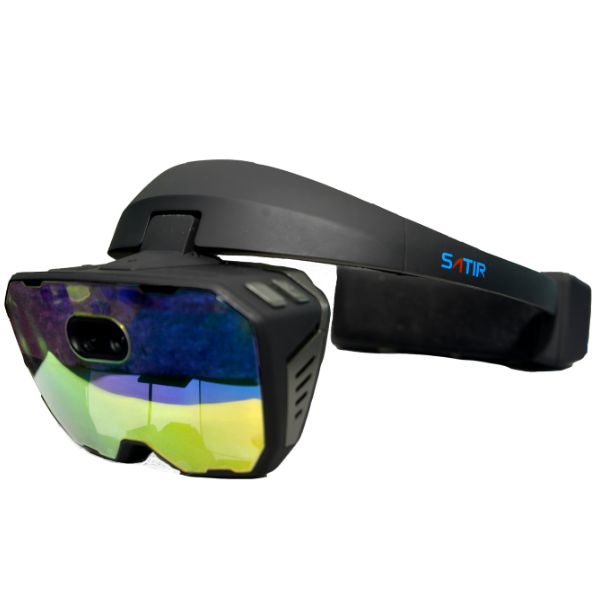

SATIR Thermal Vision 256
The SATIR thermal vision 256 is a thermal vision headset from SATIR Europe. SATIR have been developing this new platform of thermal imaging due to demand from thermal camera users for a hands-free operation that incorporates wearable technology.
Key specifications
| Thermal Camera | |
|---|---|
| Detector type | 256x192 UFPA |
| FOV | 56°x42° |
| Palette | 9 |
| CCD/Digital | |
| Display | LCOS, 1920x1080 |
| Resolution | HD 16MP |
| FOV | 40° |
| Frame Rate | 60Hz * Inside the EU, outside 9 Hz |
| AR Glasses | |
| Contrast | >=200.1 |
| Eye Movement Range | 9x6mm |
| Mirror Distance | 18mm |
| Optical Distortion | <4% |
| Brightness Uniformity | >=50% |
| Lens Transmittance | >80% |
| Pixel Size | 6.3x6.3µm |
| Lens Thickness | 1.45mm |
| Size | More than 30.5x18.2x9.6cm |
| Temperature measurement | |
| Measurement range | -20°C~+550°C |
| Analysis tool | 3 movable spots, 3 area boxes, 2 line, ma |
| Accuracy | ±2°C or 2% of readings |
| Functions | |
| Image Mode | IR/CCD/Fusion |
| Battery Life | 3-4 Hour, Replaceable Battery |
| Photo/Video | Yes |
| Shutter/Frozen | Yes |
| Mobile Communication | Support 4G, can expand to 5G in the future |
| Parameter Settings | Emissivity, Ambient Temperature, Distance, Temperature Units |
| Voice Function | Yes |
| Remote Assistance | Yes |
| Encapsulation | IP54 |
| Language | English, Spanish, Chinese, German, French, Russian, Japanese, Korean |
| Overall Structure | Infrared Module & Headset Integration |
| WIFI, GPS, Bluetooth | Yes |
| Screen Function | Yes |
Details
Thermal Vision 256 | Thermal Imaging Headset
The SATIR thermal vision 256 is a thermal vision headset from SATIR Europe. SATIR have been developing this new platform of thermal imaging due to demand from thermal camera users for a hands-free operation that incorporates wearable technology.
It features a 256x192 IR detector which delivers a good quality image that would be suitable to most applications that require a clear thermal image. It also has a 16MP digital camera which allows for comparison of thermal and digital images.
The headset is suitable for glasses wearers and has a battery life of up to 3-4 hours. It has a wide temperature range of -20°C~+550°C and accuracy of ±2°C or 2% of readings. It also has multiple measurement tools to assist the end-user in analysis.
Key Features:
New Platform Style for Thermal Imaging
256x192 IR Detector
16MP Digital Camera
Suitable for Glasses Wearers
Hands Free Operation
Voice Recognition
