Brackish Water Systems

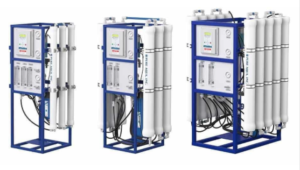

Commercial Reverse Osmosis RO Systems RO-200

Commercial Reverse Osmosis RO Systems RO-200

Pure Aqua’s commercial reverse osmosis system “RO-200 series” is a compact and energy-efficient commercial RO unit, designed ideally for tap, brackish and drinking water treatment applications. Our small commercial reverse osmosis equipment is capable of reaching incredibly high recovery rates.

As a global supplier, we offer a full line of pre-engineered and custom reverse osmosis systems for commercial use, ranging from 600 to 18,000 GPD. These commercial RO systems produce high-quality water at a very low cost, all of which are engineered using the most advanced technology for accurate and customized solutions.

Our commercial ro systems will take care of removing unwanted dissolved solids from your tab, brackish or well water through the utilization of highly efficient reverse osmosis membranes. Less wastewater, low energy consumption, high flow rates and contaminant rejection at competitive prices makes our commercial ro systems the most valuable in the market. These systems incorporate dependable components and an extremely sturdy construction, along with designed features from years of experiences of producing high quality commercial reverse osmosis systems.

Additional perks provided by our commercial ro water system include:

  • Compact, Heavy Duty, Powder Coated Carbon Steel Frame
  • Membranes from most reputable brands
  • Long-lasting performance
  • Tried and tested (trouble-free operation)
  • Minimal membrane fouling
  • Cost-effective
  • Enhanced energy efficiency
  • Reduction of scaling deposits
  • Fresher, clearer improved tasting water

Commercial Reverse Osmosis Process:

Skid mounted commercial reverse osmosis purifier are tasked with purifying water from water sources such as lakes, rivers and wells. The commercial RO system utilize a high pressure pump that pressurizes brackish or saline water against the surface of a semi-permeable membrane containing small pores. Water molecules are only permitted to flow through the small pores while blocking impurities such as salt, particles, minerals, and other organics from passing through. These small pores have a strong capability of rejecting bacteria and disease-causing pathogens. At the end of this process, clean, purified water emerges on the lower-pressured side while salts, minerals, and other organics are sent into the brine stream then into a drain.

Custom & High Capacity Commercial Reverse Osmosis Filtration Systems:

Our RO-200 series commercial reverse osmosis units are manufactured to be with user-friendly, environmental friendly, long-term reliability, and robust construction in mind.

The RO-200 series can be customized based on individual design needs to include chemical dosing, cleaning skids, antiscalant, filters and more. A commercial reverse osmosis machine can accommodate between 600 to 18,000 GPD, with feed water TDS of 1,000 to 5,000 ppm. These features have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. Economical and efficient, RO-200 commercial reverse osmosis machines acquire the latest in reverse osmosis technology to remove dissolved salts, particles, organics, minerals, solids and other contaminants from water with a molecular weight greater than 150-250 Dalton. At Pure Aqua, we use the most efficient, energy saving, high rejection membranes made by Dow Filmtec, Hydranautics, Toray.

Commercial Reverse Osmosis System Schematic Diagram:



Commercial Reverse Osmosis System Buying Guide:

The following considerations should be made when choosing the right water treatment system:

  • Flow rate (GPD, m3/day, etc.)
  • Feed Water TDS.
  • Iron
  • Manganese
  • TSS
  • SDI >3
  • Water must be free from oils and grease
  • Chlorine must be removed
  • Available Voltage, Phase, and Frequency
  • Installation Location & Footprint

Visit this page to learn more about who makes the reverse osmosis system

Commercial Reverse Osmosis System Cost:

Commercial reverse osmosis machines cost is largely dependent on feed water quality and the required product water quality.

The following list details many of the common pre and post treatment components employed with RO systems.

  • Prechlorination dosing
  • Media filter
  • Carbon filter
  • Water softener
  • Antiscalant dosing
  • NSF components
  • Advanced controller
  • Advanced instruments
  • Iron removal filter
  • High TDS application
  • Skid mounted system
  • Calcite filter
  • Blending systems
  • Three phase system
  • Variable frequency drive VFD



Standard Features:

Available Options:

  • 2.5″/4″ TFC spiral wound membranes
  • Heavy duty high pressure tubing
  • Low pressure switch
  • Product and reject flow meters
  • Electric inlet solenoid valve
  • Corrosion resistant high pressure throttling valve
  • Pretreatment lockout
  • Factory tested
  • Powder coated carbon steel frame
  • Corrosion resistant high pressure pump
  • 220V/1Ph/60Hz power supply
  • Pre/post-treatment and pump pressure gauges
  • Recycle valve (standard up to 4.5K GPD)
  • FRP/SS pressure vessel
  • Tagging and identification of instrumentation
  • Heavy duty 5 micron cartridge pre-filter
  • Automatic flush
  • Pre piped skid system
  • Blending: feed/product
  • Tank float switch
  • Recycle flow meter
  • Post DI polishers
  • 380-415V/3Ph/50Hz power supply
  • 220-240V/1Ph/50Hz power supply
  • 220V or 460v 3Ph/60Hz power supply
  • Water softeners
  • Ozonation system / UV sterilizers
  • Media filters
  • pH or ORP meter
  • High pressure switch
  • Export wood crating

Operation Specifications

  • Max. feed water temperature: 42°C
  • Equipment upgrade for TDS up to 5,000 ppm
  • Hydrogen Sulfide must be removed
  • Max. Silica tolerance: 25 ppm @ 60% recovery
  • Feed water TDS: 0-2,000 ppm
  • Operating pressure: 150 to 250 psi
  • pH tolerance range: 3-11
  • Max. Iron content: 0.05 ppm
  • Feed water pressure: 20 to 80 psi
  • Hardness over 1 GPG requires water softener
  • Turbidity should be removed
  • Operate at higher TDS by lowering recovery
Commercial RO System RO-200 Series
Model NumberPermeate Flow RateMembranesMotor Rating at 1,000 ppm
GPDM3/DSizeQty.60Hz (hp)50Hz (hp)
TW-0.6K-12560022.5″x40″11/21/2
TW-1.2K-2251,20052.5″x40″21/21/2
TW-1.8K-3251,80072.5″x40″33/43/4
TW-1.5K-1401,50064″x40″111
TW-3.0K-2403,000114″x40″211
TW-4.5K-3404,500174″x40″31.51.5
TW-6.0K-4406,000234″x40″41.51.5
TW-7.5K-5407,500284″x40″522
TW-9.0K-6409,000344″x40″622
TW-12.0K-84012,000454″x40″833
TW-15.0K-104015,000574″x40”1033
TW-18.0K-124018,000684″x40”1233

Note: If the feed water TDS exceeds 2,000 ppm, the system model number changes to BW-XXXK-XXXX, and a suffix is added to the end of the model number: “-5” is added if the TDS is 5,000 ppm or less. Example: Required system to produce 9,000 GPD with a feed water TDS of 5,000 ppm, the corresponding model number is: “BW-9.0K-640-5”.

*** Higher capacity systems are available. Learn more about:

RO-300 Series: 13,000 – 32,000 GPD

RO-400 Series: 28,000 – 173,000 GPD

RO-500 Series: 200,000 – 900,000 GPD

Commercial reverse osmosis plants are built using 4” TFC spiral wound membranes, commercial water pumps and microprocessor based control panels. The ideal application for a commercial RO water filter systems include:

  • Metal Finishing
  • Beverage Production and Bottled Water
  • Electronics
  • Pharmaceutical
  • Mining Industry
  • Chemical Blending
  • Safe Drinking Water
  • Rinse Water
  • Power Plants
  • Plating Operations
  • EDI Pre-treatment
  • Food and Beverage
  • Spot Free Product Rinse
  • Cooling Towers
  • Laboratory
  • Boiler Feed Water
  • Ice Manufacturing
  • Ion Exchange Pre-treatment

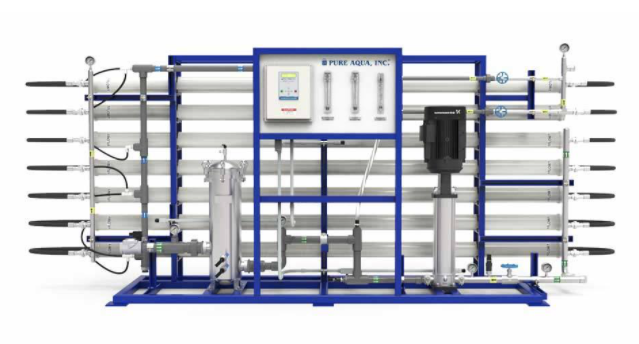

Commercial Brackish Water Reverse Osmosis BWRO Systems RO-300

Commercial Brackish Water Reverse Osmosis BWRO Systems RO-300

Pure Aqua supplies a full line of standard and fully customizable brackish reverse osmosis systems, all of which are engineered using advanced 3D computer modeling and process design software fo accurate and customized solutions.

Regardless of the condition of your water supply, brackish type water is more difficult to treat due to the increased probability for changes in salinity over time. This occurrence ultimately affects water prices since energy usage is elevated and the treatment process is burdened as a result of an upward movement of salinity throughout the groundwater.

A significant aspect for the effective running of a brackish reverse osmosis system is the RO feedwater quality, which becomes resolved by the consistency of the water body and the success of the pretreatment process.

Customizable & High Capacity

Pure Aqua engineers have designed a second line of commercial reverse osmosis systems. This line, RO-300 Series, features systems that are able to purify higher capacities of water and are therefore made with higher quality materials. These brackish RO systems ideally treat tap/brackish water for the application of drinking water or other commercial uses that require ultra-purified water.

Compared to the RO-200 Series, RO-300 Series is displayed vertically and made with heavy-duty materials to withstand the higher capacity that it produces. For example, stainless steel piping is used in RO-300 brackish reverse osmosis system. Whereas, the RO-200 uses standard tubing. The high pressure pump is 316L stainless steel. Each pressure vessel has multi membrane, and the vessels are installed horizontally.

Ultra-high-quality water for specific applications and is customizable depending on the application and source of the water. Pure Aqua, Inc. takes pride in their ability to offer the most appropriate solution for any water treatment need.

Brackish Reverse Osmosis Process

Brackish RO systems require pre-treatment of which is always included in the sale unless the water is already being treated. Pre-treatment systems depend on the quality of water that is treated along with the application. Taking those two into account is how our engineers recommend the most appropriate pre/post treatment for the system. Components of pre/post treatment include multimedia and activated carbon filters along with water softeners and UV sterilizers. A chemical dosing system and/or a cleaning skid are also incorporated into the system.

Brackish reverse osmosis systems are equipped to purify water from rivers, lakes, wells, and the sea. With high pressure pumps, water is pressurized to pass through a finely pored semi-permeable membrane and filter the water. Around 99% of contaminants including salts, bacteria, and other particles are removed leaving the water in its most purified form. The system releases the purified (permeate) water from one stream and the reject filled with concentrated contaminants from another. Depending on the application of the water, post-treatment may be applied.

High Capacity of BWRO Systems

The RO-300 series comes with many similar standard features as the RO-200 series. However, the capacity of RO-300 is a main differentiator between the two. RO-300 series is comprised of brackish reverse osmosis systems that can accommodate between 13,000 to 32,000 GPD with feed water TDS of 1000 ppm to 5000 ppm.

Pure Aqua’s RO systems are capable of removing salts as well as other impurities such as bacteria, sugars, proteins, dyes and constituents having a molecular weight greater than 150-250 Dalton. In addition, these RO systems have the ability to remove color, iron, odor, hardness, sulfur, and chlorine while being economical and efficient through the usage of Dow Filmtec, Hydranautics, and Toray membranes (Our systems are made in the USA).

Buying Guide

Choosing the correct RO-300 model is simple. The following information must be provided:

The following information is requested to recommend the most appropriate system:

To find the most appropriate system for your use, please have the following information ready:

  • Flow rate (GPD, m3/day, etc.)
  • Feed water TDS and water analysis: this information is important to prevent membranes from fouling, as well as help us choose the correct pre-treatment.
  • Iron and manganese must be removed before the water enters reverse osmosis unit
  • TSS must be removed before commercial RO system
  • SDI must be less than 3
  • Water should be free from oil and grease
  • Chlorine must be removed
  • Available voltage, phase, and frequency
  • Dimensions of proposed area where commercial RO system will be installed

Additional Features:

The cost of a system varies depending on which and how many pre/post treatments are needed to adequately treat the water and/or for the intended application.

The following are all the possible additional treatments to a reverse osmosis system that will ensure longevity and optimal purification:

  • Prechlorination dosing
  • Media filter
  • Carbon filter
  • Water softener
  • Antiscalant dosing
  • NSF components
  • Advanced controller
  • Advanced instruments
  • Iron removal filter
  • High TDS application
  • Skid mounted system
  • Calcite filter
  • Blending systems
  • Three phase system
  • Variable frequency drive VFD

Operation Specifications

  • Max. feed water temperature: 42°C

  • Equipment upgrade for TDS over 5,000 ppm

  • Hydrogen Sulfide must be removed

  • Max. Silica Tolerance: 60 ppm @ 60% recovery

  • Feed water TDS: 0-1,000 ppm

  • Operating pressure: 150 to 250 psi

  • pH tolerance range: 3-11

  • Max. Iron content: 0.05 ppm

  • Feed water pressure: 20 to 80 psi

  • Hardness over 1 GPG requires antiscalant dosing

  • Turbidity should be removed

  • Operate at higher TDS by lowering recovery

Commercial Brackish Water Reverse Osmosis Systems RO-300
Model NumberPermeate Flow RateQuantity of 4″ MembranesMotor Rating at 1,000 ppm
GPDM3/D60Hz (hp)50Hz (kw)
TW-13K-334013,00050932.2
TW-15K-524015,000571053
TW-18K-434018,000681252.2
TW-22K-534022,000851553
TW-24K-824024,000911653
TW-27K-634027,0001021853
TW-32K-734032,0001212154



Standard Features:

Available Options:

  • 1”-3” Noryl diaphragm valves or butterfly   valves for 4” or larger

  • Digital stager for filters using diaphragm  valves or PLC for butterfly valves

  • 115V/1Ph/60Hz power supply

  • Stainless steel tank with 100 psi rating

  • Top loading port

  • Schedule 80 PVC face piping

  • PP/PVC sch 80 internal piping and distributor

  • Vent and drain ports

  • High quality

  • Differential pressure initiation for backwash

  • Butterfly valves, air or electrically operated

  • 240V/1Ph/50Hz power supply

  • NEMA 4 or NEMA 4X enclosures

  • Tanks according to ASME code

  • Tanks with higher pressure rating

  • 316 SS or galvanized iron face piping

  • Inlet / Outlet 316 SS pressure gauges

  • Inlet / Outlet sample valves

  • Manual or automatic air vent valve

  • Vacuum breaker

  • Flanged piping connection

  • Unistrut channel supports

The ideal applications for brackish reverse osmosis systems include:
  • Rinse Water

  • Mining Industry

  • Chemical Blending

  • Laboratory

  • Beverage Production and Bottled Water

  • Spotless Car Wash System

  • Ion Exchange Pre-treatment

  • Boiler Feed Water

  • Food and Beverage

  • Safe Drinking Water

  • Electronics

  • Plating Operations

  • Ice Manufacturing

  • Power Plants

  • Metal Finishing

  • EDI Pre-treatment

  • Cooling Towers

  • Pharmaceutical

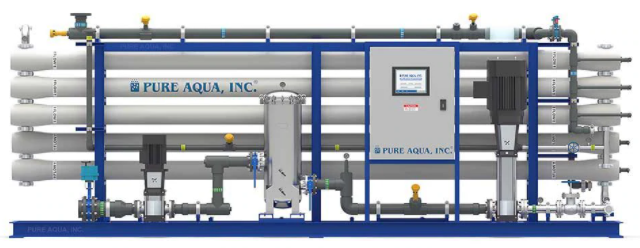

Industrial Reverse Osmosis Systems RO-400

Industrial Reverse Osmosis Systems RO-400

Industrial Reverse Osmosis systems remove up to 99.9% of salts and contaminates from different impure feed water sources including municipal, brackish and surface water. The system blocks bacteria, particles, sugars, proteins, dyes, and impurities that encompass a molecular weight of more than 150-250 Dalton.

Pure Aqua, Inc. offers a wide array of pre-engineered and custom industrial reverse osmosis systems, ranging in capacity from 28,000 to 1,000,000 GPD. Catered to meet every industrial water treatment need and application, these energy efficient industrial RO units produce high-quality water at an affordable cost.

Our industrial ro systems are manufactured to deliver high quality water under the most stringent requirements of ongoing operation and corrosive conditions. These RO units are first-rate systems engineered to provide the most cutting-edge solutions that the water treatment industry can offer. They are also designed with selectable functional, control features and additional apparatus supplying user’s the capacity to custom-make your reverse osmosis machine. Whatever your water treatment application requires, our industrial reverse osmosis system will be your optimal solution.

Compact Industrial Reverse Osmosis Equipment

This RO-400 Series tap and brackish water equipment is equipped with media filters and chemical dosing systems (pre chlorination, antiscalant, dechlorination, post chlorination and post pH). This equipment is primarily customized to suit individual customers and different water applications. The RO-400 Series is recognized as one of the most compact industrial reverse osmosis system on the market, built with state of the art energy saving membranes.

The design of the RO-400 Series skid mounted industrial reverse osmosis system, takes into consideration certain matters such as robust construction, user friendly design, environmentally friendly material, and long-term reliability.

Containerized / Mobile Reverse Osmosis RO Systems

We offer fully containerized/mobile RO water treatment systems that are assembled inside of an ISO standard shipping container. Each container is customized for each individual water treatment application making it easy to install and operate with high efficiency, a compact foot print, and energy saving features.

Industrial Reverse Osmosis RO Water Treatment Process

Industrial reverse osmosis plant includes a multimedia prefilter, water softener or antiscalant dosing system, dechlorination dosing system, reverse osmosis unit with semi-permeable membranes, and UV sterilizer or post chlorination as a post treatment. These RO machines apply the technology of reverse osmosis by transporting feed water through a multimedia prefilter to remove particles that are larger than 10-micron. Then the water is injected by an antiscalant chemical to control hardness fouling that may cause damage to the membranes of the RO machine. These pretreatment options have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. The water then continues into the reverse osmosis unit where a high-pressure pump applies extreme pressure to the highly concentrated solution, separating the remaining salts, minerals, and impurities that the pre-filter cannot catch. Fresh, potable water comes out from the low-pressure end of the membrane while salts, minerals, and other impurities are discharged into a drain on the other end. Lastly, the water is passed through a UV sterilizer (or post chlorination) to kill any bacteria and microbes that still exist in the water.

Industrial Reverse Osmosis System Schematic Diagram

industrial reverse osmosis system RO diagram



High Capacity Industrial RO System

Economical and efficient, an RO-400 industrial reverse osmosis system incorporates the latest in RO technology to remove dissolved salts, particles, organics, minerals, solids and other impurities from water. Industrial RO system manufacturers utilize reverse osmosis membranes as its core separation technology to block these impurities. Pure Aqua utilizes the most reputable membranes manufacturers such as Dow Filmtec and Hydranautics.

As part of our industrial line, the RO unit can accommodate 28,000 to 173,000 GPD, with feed water total dissolved solids (TDS) ranging from 1,000 to 5,000 ppm. These RO machines can come standard with pre and post treatment components. Customization such as higher feed water TDS, low water operating temperature, future expandability, variable pressure design using VFD, outputs for BMS system, data logging and remote monitoring.

Industrial Reverse Osmosis System Buying Guide

In order to choose the correct RO model number, the following information must be provided:

    1. Flow rate (GPD, m3/day, etc.)
    2. Feed water TDS and water analysis: this information is important to prevent membranes from fouling, as well as help us choose the correct pre-treatment.
    3. Iron and manganese must be removed before the water enters reverse osmosis unit
    4. TSS must be removed before entering the Industrial RO system
    5. SDI must be less than 3
    6. Water should be free from oil and grease
    7. Chlorine must be removed
    8. Available voltage, phase, and frequency (208, 460, 380, 415V)
    9. Dimensions of projected area where Industrial RO System will be installed
Operation Specifications
  • Max. feed water temperature: 42°C
  • Equipment upgrade for TDS up to 5,000 ppm
  • Hydrogen Sulfide must be removed (H2S)
  • Max. Silica tolerance: 60 ppm @ 60% recovery
  • Feed water TDS: 0-1,000 ppm
  • Operating pressure: 150 to 250 psi
  • pH tolerance range: 3-11
  • Max. Iron content: 0.05 ppm
  • Feed water pressure: 20 to 80 psi
  • Hardness over 1 GPG requires antiscalant dosing
  • Turbidity should be removed
  • Operate at higher TDS by lowering recovery

Standard Features:

Available Options:

  • Programmable time delay and set points

  • Motor starter

  • Stainless steel multi-stage pump with TEFC motor

  • FRP membrane housings

  • 5 micron cartridge pre-filter

  • 460V/3Ph/60Hz power supply

  • Microprocessor based control panel

  • NEMA 12 enclosure

  • Low pressure switch

  • High pressure switch

  • Liquid filled pressure gauges

  • Permeate conductivity monitor

  • Permeate & concentrate flow meters

  • Powder coated carbon steel frame

  • TFC spiral wound membranes

  • Automatic hourly flush

  • Feed/Permeate blending

  • Export crating

  • Ozonation and UV sterilization systems

  • Water softeners

  • Feed pH controller with sensor

  • Feed ORP controller with sensor

  • Water and hour meters

  • Chemical dosing systems

  • Media and Iron prefiltration systems

  • Post deionization polishers

  • Pre piped skid system

  • Remote Monitor/control panel

  • Feed water conductivity monitor

  • Membrane cleaning skid

  • 380-415V/3Ph/50Hz power supply

  • 220V/3Ph/60Hz power supply

  • Product tank level controller switch

Industrial reverse osmosis plants are built using robust components, 8” TFC spiral wound membranes, advanced control panels, industrial water pumps and corrosive resistance components. The ideal applications for an industrial RO water filter systems include:
  • EDI Pre-treatment

  • Rinse Water

  • Pharmaceutical

  • Boiler Feed Water

  • Laboratory Water Purification Systems

  • Chemical Blending

  • Cooling Towers

  • Ion Exchange Pre-treatment

  • Electronics

  • Safe Drinking Water

  • Food and Beverage

  • Ice Manufacturing

  • Plating Operations

  • Power Plants

  • Metal Finishing

  • Mining Industry

  • Beverage Production and Bottled Water

  • Spot Free Product Rinse

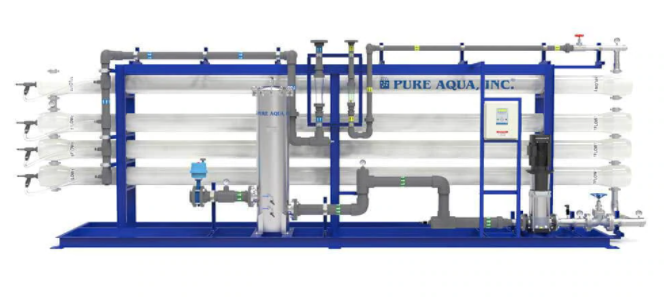

pure aqua brackish 500

Industrial Brackish Water Reverse Osmosis BWRO Systems RO-500

Reverse Osmosis (RO) systems are known for their ability to purify water and reduce 99% of contaminants. This RO series specializes in industrial grade systems for brackish, surface, and municipal water treatment. With upgraded industrial quality materials and high capacity technology, these industrial BWRO systems are engineered to purify elevated levels of water for almost every industry. Our systems are uniquely designed and engineered in the United States. Our industrial BWRO systems have been strategically designed to be energy efficient and environmentally friendly while producing some of the most high-quality water.

  • Compact Design

Our largest tap and brackish water units, the RO-500 Series, comes with a standard pre-treatment consisting of media pre-filters, chemical dosing, and antiscalant. These systems are often customized to fulfill the requirements of specific industrial applications. For this reason, we offer the option to customize the pre-treatment system for certain conditions. Our systems are considered to be one of the most compact industrial reverse osmosis systems in the market with features including state of the art energy saving membranes, robust construction, automatic design, environmentally conservative operations, and long-term reliability.

Economical and efficient, the RO-500 industrial equipment incorporates the latest in RO technology to remove dissolved minerals, particles, organics, solids and other contaminants from the water. The systems use RO membranes as its core separation technology to reject majority of these contaminants. Pure Aqua, Inc. uses the most reputable membrane manufacturers like Dow Filmtec, Hydranautics, and Toray to supply high quality products.

  • Containerized Systems
At Pure Aqua, Inc. we offer the feature of fully containerized/mobile RO system. The reverse osmosis system would be assembled in an ISO standard shipping container for a completely mobilized system. Containerized BWRO systems will intrinsically include added benefits like easy installation, transportable, compact footprint, and insulated weather protection.

  • High Capacity
This RO-500 series includes systems with capacities ranging from 200,000 to 900,000 GPD. This series can manage water with TDS up to 10,000 PPM.

Reverse osmosis systems are used to reject bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 Daltons from tap and brackish water. It is also capable of purifying water and remove salts and other impurities. Our largest tap and brackish water units, the RO-500 series, comes standard with media pre-filters, chemical dosing, and antiscalant. These systems can be customized to fit individual customer and water application needs.

  • Systemic Process
The process of an industrial BWRO system is the same as all other RO systems, the only difference is the elevated scale of water and equipment used in the system. This RO-500 series includes top-of-the-line high quality equipment from the tanks to the pumps.

For reference on the process of reverse osmosis systems, heed the following:

As the feed water enters the system, the first step of the pre-treatment is the pre-chlorination dosing which is injected into the feed stream. This feed stream is headed to a media filter which is the second component of the pre-treatment process to filter out contaminants larger than 10 microns. Next, the water is injected with antiscalant chemicals to reduce hardness of the water and prevent the RO membranes from fouling. The pre-treated water is then pressurized through the RO membranes to produce ultimately purified water and a reject stream of concentrated contaminants. Generally, industrial applications do not require water to be disinfected. However, depending on the application, a disinfection method can be used by means of Post-Chlorination Dosing or a UV Sterilizer.

A diagram of RO system process is shown below.

Industrial Brackish Water Reverse Osmosis System Diagram

industrial brackish reverse osmosis system diagram

  •  Buying Guide

In order to choose the most appropriate RO system, the following information must be provided:

    1. Flow rate (GPD, m3/day, etc.)
    2. Feed water TDS and water analysis: this information is important to prevent membranes from fouling, as well as help us choose the correct pre-treatment.
    3. Iron and manganese must be removed before the water enters the reverse osmosis unit
    4. TSS must be removed before entering RO system
    5. SDI must be less than 3
    6. Water should be free from oil and grease
    7. Chlorine must be removed
    8. Available voltage, phase, and frequency (208, 460, 380, 415V)
    9. Dimensions of projected area where Industrial RO System will be installed

Operation Specifications:

  • Max. feed water temperature: 42°C

  • Equipment upgrade for TDS over 5,000 ppm

  • Hydrogen Sulfide must be removed

  • Turbidity should be removed

  • Feed water TDS: 0-1,000 ppm

  • Hardness over 1 GPG requires antiscalant dosing

  • Max. Silica Tolerance: 60 ppm @ 60% recovery

  • Max. Iron content: 0.05 ppm

  • Feed water pressure: 20 to 80 psi

  • Operating pressure: 150 to 250 psi

  • pH tolerance range: 3-11

  • Operate at higher TDS by lowering recovery

Standard Features:

Available Options:

  • Status indicators

  • Motor starter

  • NEMA 12 enclosure

  • Low pressure switch

  • High pressure switch

  • Liquid filled pressure gauges

  • Permeate conductivity monitor

  • Permeate & concentrate flow meters

  • Powder coated carbon steel frame

  • 8” TFC spiral wound membranes

  • Stainless steel multi-stage pump with TEFC motor

  • FRP membrane housing

  • 5 micron cartridge prefilter

  • 460V/3Ph/60Hz power supply

  • PLC based control panel

  • Programmable time delay and set points

  • Export crating

  • Feed / Permeate blending

  • Automatic hourly flush

  • Membrane cleaning skid

  • Feed water conductivity monitor

  • Remote monitor / control option

  • Post deionization polishers

  • Water softeners

  • Ozonation and UV sterilization systems

  • Media and Iron prefiltration systems

  • Chemical dosing systems

  • Water and hour meters

  • Feed ORP controller with sensor

  • Feed pH controller with sensor

  • Product tank level controller switch

  • 220V/3Ph/60Hz power supply

  • 380-415V/3Ph/50Hz power supply

The ideal applications for industrial RO water filtration plant include:

  • Electronics

  • Power Plants

  • Boiler Feed Water

  • Pharmaceutical

  • Mining Industry

  • Chemical Blending

  • Ice Manufacturing

  • Plating Operations

  • Cooling Towers

  • Laboratory Water Purification System

  • Ion Exchange Pre-treatment

  • Metal Finishing

  • EDI Pre-treatment

  • Food and Beverage

  • Beverage Production and Bottled Water

  • Safe Drinking Water

  • Rinse Water

  • Spot Free Product Rinse

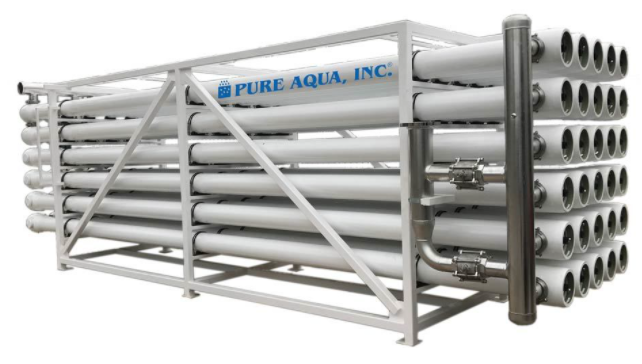

pure aqua brackish 600

Large Reverse Osmosis System RO-600

Pure Aqua manufactures large reverse osmosis systems from the RO-600 series which are designed to eliminate high concentrations of contaminants in water. These contaminants range from total dissolved solids (TDS), salt, bacteria, proteins, metals, organic substances, dyes, and constituents that contain a molecular weight higher than 150-250 Daltons.

Pure Aqua’s comprehensive line of conventional and completely customizable brackish reverse osmosis systems are also engineered through cutting-edge 3D computer modeling and process design technology for precise and tailor-made solutions.

The parts that make-up this large RO system include spiral membrane elements constructed from one or multiple membrane envelopes that are engrossed around a perforated central tube. The permeate flow is sent through layers of membranes into the envelope and makes its way to the central tube where it sits. The membrane layers are displayed in the picture to the right.

While smaller systems are designed for mostly commercial businesses and other lesser-scale applications, our large reverse osmosis system is produced to perfectly handle manufacturing and healthcare facilities of great proportions. Regardless of what type of system that you might require, a large reverse osmosis system is tailor-made to produce you the cleanest water for consumption or other use.

The Filtration Phases of Large Reverse Osmosis Systems

A large reverse osmosis system generally consist of distinct filtration and carbon consituents. Carbon filters works in conjuction with a large RO system to eradicate chlorine, chloramines, disinfectants, VOCs and pesiticides that enhances the taste and odor from water. Commercial water softeners also help by softening water that prevent membrane fouling. This multi-filtration method ensures an extremely purified solution for the production of highly pure water.

Modern large reverse osmosis system also incorporate pre-filters to eliminate sand, particulate matter, rust, and turbidity that are capable of causing damage to the membanes. It is crucial that you the steps to safeguard your membranes from these potential threats so they can do their work. RO membranes are very efficient in removing a wide range of salt, dissolved solids, lead, heavy metals, organic & inorganic susbstances, microorganisms. These membranes take in water forced throught he system by a high pressure pump that drives water flow into the pores of the semi-permeable membranes.

There is a storage tank and other water purification options that can be used such as uv sterilizers that kill biological organisms, water deionizer systems used as post-filtration to ensure ultra-pure water.

The Benefits of a Large Reverse Osmosis System

  • Enhanced flavor, smell and appearance
  • Purifying procedure with high quality
  • Takes out contaminants
  • Conductivity/total dissolved solids decrease
  • Brings down hardness in water
  • Reduced price for high value
  • Mitigates alkalinity

Other water treatment systems can minimize contamination and may take significant initiative to operate over time. These units also include additional pollution risks can arise if something fails with that specific system. Your water, however, remains fresher spotless through the use of reverse osmosis.

There are various utilizations that a large reverse osmosis system is suitable to handle in both industrial and commercial industries. Although everybody needs their water to be healthy water supply and nice drinking water, companies require clean water to make the most of their business operations. Food suppliers, health facilities, pharmaceutical companies and industrial cooling towers could all benefit from the reliably clean and fresh water provided by the method of reverse osmosis.

Large RO systems are capable of eliminating other impurities not known by many users such as flouride, arsenic, radium, nitrate, sulfate, potassium, and more. Once these substances are taken out by the membranes, they are discharged and flushed away.

Maintenance is made to be simple and extremely cost-effective. Users are only required to clean and change the RO membranes and filters in use on an occasional basis, including sanitizing the system itself. Our RO-600 large RO system provides a user-friendly option to guarantee pristine water purification.

Operation Specifications:

  • Max. feed water temperature: 42°C

  • Feed water pressure: 20 to 80 psi

  • Operating pressure: 150 to 250 psi

  • Hydrogen Sulfide must be removed

  • Turbidity should be removed

  • Max. iron content: 0.05 ppm

  • Feed water TDS: 0 to 1,000 or 3,000 or 5,000 ppm

  • Equipment upgrade for TDS over 5,000 ppm

  • Hardness over 1 GPG requires antiscalant dosing

  • pH tolerance range: 3-11

  • Max. Silica Tolerance: 60 ppm @ 60% recovery

  • Operate at higher TDS by lowering recovery

Standard Features:

Available Options:

  • Powder coated carbon steel frame

  • 8” TFC spiral wound membranes

  • Stainless steel multi-stage pump with TEFC motor

  • FRP membrane housings

  • 5 micron cartridge prefilter

  • 460V/3ph/60Hz power requirement

  • PLC based control panel

  • Programmable time delay and set points

  • Motor starter

  • NEMA 12 enclosure

  • Low pressure switch

  • High pressure switch

  • Liquid filled pressure gauges

  • Permeate conductivity monitor

  • Permeate & concentrate flow meters

  • Remote monitoring

  • Feed water conductivity monitor

  • Membrane cleaning skid

  • Automatic hourly flush

  • Feed/Permeate blending

  • Export crating

  • 380-415V/3ph/50 or 60Hz

  • Product tank level switch

  • pH & ORP controller with sensor

  • Water and hour meters

  • Chemical dosing systems

  • Media prefiltration systems

  • Ozonation and UV sterilization

  • Water softeners

  • Post deionization polishers

  • Containerized RO systems

The RO-600 series is most suitable for operating among these applications:

  • EDI Pre-treatment

  • Food and Beverage

  • Beverage Production and Bottled Water

  • Safe Drinking Water

  • Rinse Water

  • Spot Free Product Rinse

  • Electronics

  • Power Plants

  • Boiler Feed Water

  • Pharmaceutical

  • Mining Industry

  • Chemical Blending

  • Ice Manufacturing

  • Plating Operations

  • Cooling Towers

  • Laboratory Water Purification System

  • Ion Exchange Pre-treatment

  • Metal Finishing
