PRESSURE SUSTAINING VALVES

Valsteam pressure sustaining valves - ps45-series

PS45

The ADCA PS45 series pressure sustaining valves are single-seat bellows sealed controllers, operating without auxiliary energy, designed for use on steam, compressed air, and other gases compatible with the construction. They are particularly suitable for sustaining steam pressure in all energy and process systems where upstream pressures must be kept under control.

Submodels

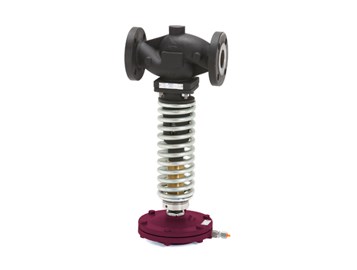

PS45 | ASME
PS45 | ASME

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 4”

CONNECTIONS

Flanged ASME Class 150 and 300

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs

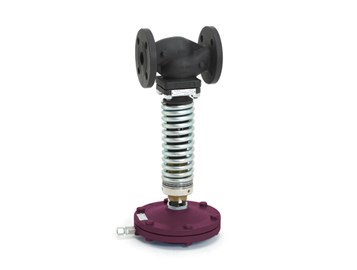

PS45 | EN
PS45 | EN

MATERIAL

SG Iron, cast and stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Flanged EN PN16 or PN40

MAX. UPSTREAM PRESSURE

13 bar

MAX. OPERATING TEMPERATURE

Up to 250 ºC

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs

valsteam pressure sustaining valves - ps47

PS47

The ADCA PS47 pilot operated pressure sustaining valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PS47 accurately senses upstream pressure and acts to precisely control it to a minimum or disperse excess pressure.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Flanged EN PN 40
Flanged ASME Class 150 or 300
Female threaded ISO 7 Rp or NPT
Socket weld (SW) ASME B16.11

MAX. UPSTREAM PRESSURE

17 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

valsteam pressure sustaining valves - ps4

PS4

The ADCA PS4 series direct-acting, spring-loaded diaphragm sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. This valve’s main purpose is to maintain the upstream pressure under control. They are suitable for pressure sustaining applications where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

15 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

3,6 or 3,7 Kvs

PS7

The ADCA PS7 series direct-acting, spring-loaded diaphragm sensing pressure sustaining valves are designed for use with steam, compressed air and other gases compatible with the materials of construction. They are suitable for pressure sustaining applications where very small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Carbon steel or stainless steel

SIZES

1/4” and 3/8”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

17 bar

MAX. DESIGN TEMPERATURE

300 ºC

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

0,8 Kvs

PS30

The ADCA PS30 series direct-acting, spring-loaded diaphragm sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. They are suitable for pressure sustaining applications where low capacity is required. This valve’s main purpose is to maintain the upstream pressure under control.

MATERIAL

Stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

15 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

2,1 to 13,7 Kvs

PS31

The ADCA PS31 series direct-acting, spring-loaded piston sensing, pressure sustaining valves are designed for use on compressed air, water, and other gases or liquids compatible with the materials of the construction. They are suitable for pressure sustaining applications where low capacity is required. This valve’s main purpose is to maintain the upstream pressure under control.

MATERIAL

Stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

3 to 15,4 Kvs
