PRESSURE REDUCING VALVES

Valsteam pressure reducing valves - prv25s

PRV25

The ADCA PRV25/2S series, direct-acting pressure reducing valves, are designed for use on steam, compressed air, water and other gases and liquids. They are suitable for reducing steam pressure at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 1” – DN 15 a 25

CONNECTIONS

Threaded ISO 7 Rp
Flanged EN PN 25
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

17 bar

MAX. DESIGN TEMPERATURE

Up to 210 ºC

REGULATING RANGE

0,35 to 8,6 bar

FLOW RATE COEFFICIENTS

1,7 to 3,1 Kvs

valsteam pressure reducing valves - rp45-series

RP45

The ADCA RP45 series pressure reducing valves are single seated, bellows sealed controllers that operate without auxiliary energy. Designed for use with steam, compressed air, and other gases compatible with the construction. They are particularly suitable for reducing steam pressure in all energy and process systems where pressures must be kept under control.

Submodels

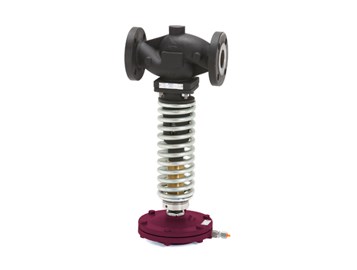

RP45 | ASME
RP45 | ASME

MATERIAL

Carbon steel

SIZES

1/2” to 4”

CONNECTIONS

Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 13 bar

FLOW RATE COEFFICIENTS

4,8 to 129,5 Kvs

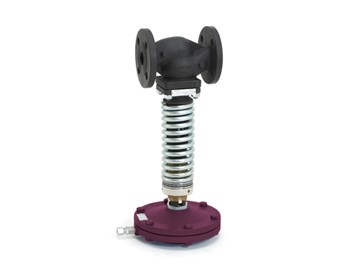

RP45 | EN
RP45 | EN

MATERIAL

SG Iron
Carbon steel
Stainless steel

SIZES

DN 15 to DN 150

CONNECTIONS

Flanged EN PN 16 or PN 40

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 18 bar

FLOW RATE COEFFICIENTS

4,8 to 204 Kvs (m3/h)

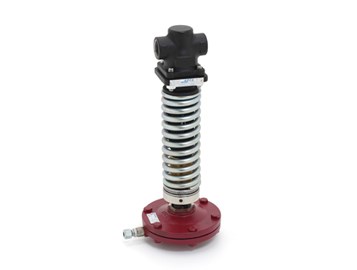

RP45 | Threaded
RP45 | Threaded

MATERIAL

Carbon steel or stainless steel

SIZES

1/2

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

25 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,15 to 18 bar

FLOW RATE COEFFICIENTS

4,8 to 9,1 Kvs

POT
POT

The ADCA POT is specially designed to protect the actuator’s diaphragms of RP45 pressure regulators when the media temperature exceeds their maximum operating temperatures.

MATERIAL

Carbon steel or stainless steel

SIZES

3/8”

CONNECTIONS

Threaded ISO 7 Rp

MAX. UPSTREAM PRESSURE

40 bar

PRV47

The ADCA PRV47 pilot operated pressure reducing valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PRV47 can be installed in pressure reducing stations throughout all industries and provides sensitive and accurate control even when inlet pressure fluctuations or flow variations occur.

MATERIAL

Carbon steel or stainless steel

SIZES

1/2” to 2” – DN 15 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket Weld (SW) ASME B16.11

MAX. UPSTREAM PRESSURE

31 bar

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

PRV47-2

The ADCA PRV47/2 pilot operated pressure reducing valves are designed for use with steam, compressed air, nitrogen and other gases compatible with the construction materials. The PRV47/2 can be installed in pressure reducing stations throughout all industries, and provide sensitive and accurate control even when inlet pressure fluctuations or relevant flow variations occur.

MATERIAL

Carbon steel or stainless steel

SIZES

DN 65 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 40

MAX. UPSTREAM PRESSURE

31 bar
28 bar (steam)

MAX. OPERATING TEMPERATURE

250 ºC

REGULATING RANGE

0,07 to 17 bar

P7

The ADCA P7 series direct-acting, spring-loaded diaphragm sensing pressure reducing valves, are designed for use with steam, compressed air and other gases compatible with the materials of construction. They are suitable for pressure reducing stations where very small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” and 3/8”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

25 bar (steam)
31 bar (gases)

MAX. DESIGN TEMPERATURE

300 ºC

REGULATING RANGE

0,35 to 17 bar

FLOW RATE COEFFICIENTS

1 or 1,1 Kvs (m3/h)

P20D

The ADCA P20D series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves are designed for use on compressed air, water and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

1,2 to 1,8 Kvs

valsteam pressure reducing valves - p20ds

P20DS

The ADCA P20DS series direct-acting, spring-loaded diaphragm sensing pressure reducing valves, are designed for use on steam, compressed air, and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

14 bar

MAX. DESIGN TEMPERATURE

200 ºC *

REGULATING RANGE

0,2 to 8 bar

FLOW RATE COEFFICIENTS

1,2 to 1,8 Kvs

P20P

The ADCA P20D series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves are designed for use on compressed air, water and other gases or liquids compatible with the materials of construction. They are suitable for pressure reducing stations where small loads are involved. They are also specifically recommended to operate as pilot valves in combination with other pressure regulators.

MATERIAL

Stainless steel

SIZES

1/4”

CONNECTIONS

Threaded ISO 7 Rp or NPT

MAX. UPSTREAM PRESSURE

220 bar

MAX. DESIGN TEMPERATURE

200 ºC *

REGULATING RANGE

0,2 to 200 bar

FLOW RATE COEFFICIENTS

0,043 to 0,62 Kvs

valsteam pressure reducing valves - prv30ss-series

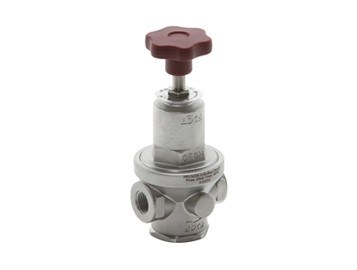

PRV30

The ADCA PRV30 series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the construction materials. They are suitable for pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Submodels

PRV30 | DN 15 - 20
PRV30 | DN 15 – 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

2,1 or 2,4 Kvs

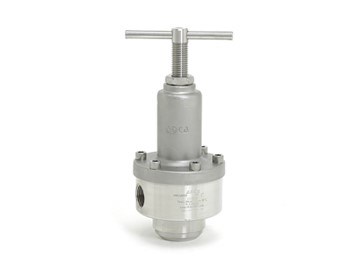

PRV30 | DN 25 - 32
PRV30 | DN 25 – 32

MATERIAL

Stainless steel

SIZES

1” and 11/4” – DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

6,5 or 7,2 Kvs

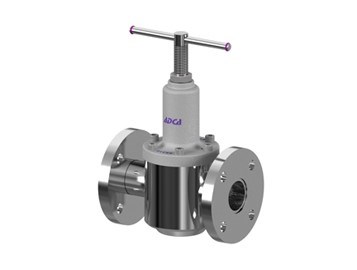

PRV30 | DN 40 - 50
PRV30 | DN 40 – 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,2 to 15 bar

FLOW RATE COEFFICIENTS

12,7 or 13,7 Kvs

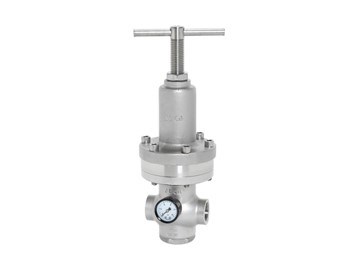

PRV31

The ADCA PRV31 series direct-acting, spring-loaded piston sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the materials of the construction. They are suitable for pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Submodels

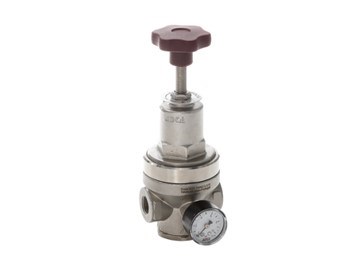

PRV31 | DN 15 - 20
PRV31 | DN 15 – 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

3 or 3,5 Kvs

PRV31 | DN 25 - 32
PRV31 | DN 25 – 32

MATERIAL

Stainless steel

SIZES

1” and 11/4” – DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

7,5 or 8,2 Kvs

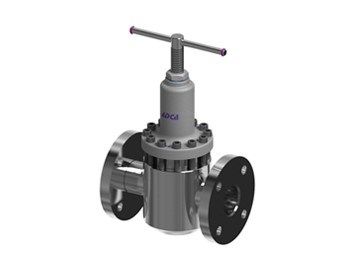

PRV31 | DN 40 - 50
PRV31 | DN 40 – 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300

MAX. UPSTREAM PRESSURE

50 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 50 bar

FLOW RATE COEFFICIENTS

14,4 or 15,4 Kvs

valsteam pressure reducing valves - prv41ss

PRV41SS

The ADCA PRV41 series direct-acting, spring-loaded piston sensing, balanced plug pressure reducing valves, are designed for use on compressed air, water and other gases or liquids compatible with the materials of the construction. They are suitable for pressure reducing stations at the point of use on different industrial applications.

MATERIAL

Stainless steel

SIZES

1/4” to 1/2” – DN 15

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40 to PN 320
Flanged ASME Class 150, 300 or 600

MAX. UPSTREAM PRESSURE

220 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

3 to 200 bar

FLOW RATE COEFFICIENTS

0,7 or 0,9 Kvs

PRV300

The ADCA PRV300 series direct-acting, spring-loaded diaphragm sensing, balanced plug pressure reducing valves, are designed for use with compressed air, water and other gases and liquids compatible with the materials of construction. They are suitable for high accuracy pressure reducing stations at the point of use on laundry machines, dyeing, food industries, sterilizers, etc.

Submodels

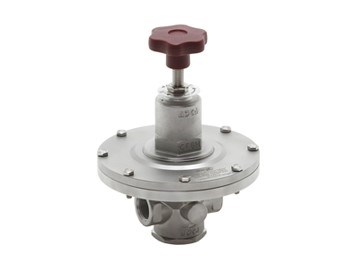

PRV300 | DN 15 - 20
PRV300 | DN 15 – 20

MATERIAL

Stainless steel

SIZES

1/2” and 3/4” – DN 15 and DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 0,07 bar

FLOW RATE COEFFICIENTS

2,1 or 2,4 Kvs (m3/h)

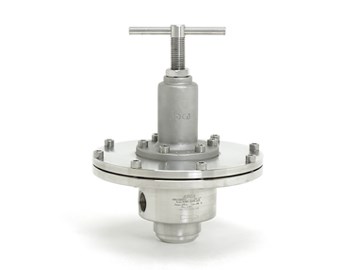

PRV300 | DN 25 - 32
PRV300 | DN 25 – 32

MATERIAL

Stainless steel

SIZES

DN 25 and DN 32

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 1,7 bar

FLOW RATE COEFFICIENTS

6,5 or 7,2 Kvs

PRV300 | DN 40 - 50
PRV300 | DN 40 – 50

MATERIAL

Stainless steel

SIZES

11/2” and 2” – DN 40 and DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. UPSTREAM PRESSURE

16 bar

MAX. DESIGN TEMPERATURE

80 ºC *

REGULATING RANGE

0,05 to 1,7 bar

FLOW RATE COEFFICIENTS

12,7 or 13,7 Kvs
