Safe Area Gas Detectors - Loop Powered
FGD4 Series of 4 To 20mA Transmitters
The FGD4 series of gas detectors are powered from an 8 to 24 volts dc power supply using the industry standard 4 to 20mA two-wire current loop to transmit the gas level to a separate control panel such as the Status Scientific Controls LC Series. The Carbon Dioxide version uses Infrared gas detection technology and requires a third connection to power the infrared sensor.
Typical examples of their use are in water purification processes, food preparation and/or storage, car parks, swimming pools, medical applications.
Versions are available for detection of the following common gas types:-
Gas Type
- Ammonia>>
- Carbon Dioxide >>
- Carbon Monoxide >>
- Chlorine >>
- Ethylene Oxide >>
- Hydrogen Chloride >>
- Hydrogen Sulphide >>
- Nitric Oxide >>
- Nitrogen Dioxide >>
- Oxygen >>
- Sulpur Dioxide >>
Sensor Technology
- Electrochemical
- Infrared
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.

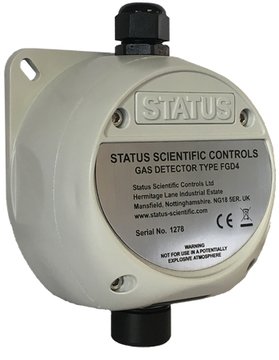

Ammonia Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Standard ranges 0-100ppm or 0-1000ppm NH3.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Ammonia gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Carbon Dioxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Infrared Gas Sensor Technology
Features
Standard range 0-500ppm other ranges available up to 0-1000ppm CO.
Competitively priced for use in non-hazardous areas only.
Two wire connection.
8 to 24 volt dc operation.
Industry standard 4 to 20mA output.
Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses the latest infrared sensor technology to accurately detect Carbon Dioxide. These detectors must only be used in areas without a risk of the presence of explosive gases. The detector requires a three-wire connection consisting a power supply connection to power the infrared sensor and a two-wire industry standard 4-20mA current loop to convey the gas levels to a separate control unit such as the Status Scientific Controls LC Series. Under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Carbon Monoxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Standard range 0-500ppm other ranges available up to 0-1000ppm CO.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Carbon Monoxide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Chlorine Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Standard ranges 0-20ppm Cl2.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Chlorine gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Ehtylene Oxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Range 0-100ppm ETO.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Ethylene Oxide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Hydrogen Chloride Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Standard range 0-30ppm HCl.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Hydrogen Chloride gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Hydrogen Sulphide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Standard range 0-50ppm, other ranges available up to 0-200ppm H2S.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Hydrogen Sulphide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Nitric Oxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Range 0-100ppm NO.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Nitric Oxide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Nitrogen Dioxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Range 0-20ppm NO2.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Nitrogen Dioxide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Oxygen Deficiency Safe Area Fixed Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Range 0-25% O2.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Detector uses electrochemical sensor technology to accurately detect the ambient Oxygen level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Sulphur Dioxide Safe Area Fixed Gas Detector
FGD4 Series, Loop Powered 4 To 20mA Transmitter
Using Electrochemical Gas Sensor Technology
Features
- Range 0-20ppm SO2.
- Competitively priced for use in non-hazardous areas only.
- Two wire connection.
- 8 to 24 volt dc operation.
- Industry standard 4 to 20mA output.
- Plug-in hand held configuration unit.
Description
Configuration Unit
Description
The FGD4 Safe Area Gas Detector uses electrochemical sensor technology to detect the Sulphur Dioxide gas level in the atmosphere. The detector uses the industry standard 4-20mA current loop to both power the detector and to convey the gas levels detected to a separate control unit such as the Status Scientific Controls LC Series. This means that under zero gas conditions 4mA is drawn from the supply, and under full scale gas conditions 20mA is drawn from the supply. The current varies linearly for gas levels between zero and full scale. The detector head uses a two-wire connection.
Calibration of the FGD4 can be carried out simply by using ZERO and SPAN buttons inside the instrument provided that the concentration of the calibration gas is the same as that used for factory calibration of the detector (refer to the instrument calibration certificate for details).
Alternatively, the purpose designed plug-in hand held configuration unit shown below may be used together with any appropriate test gas concentration.
Configuration Unit
Configuration Unit The FGD4 is calibrated using a purpose designed plug-in hand held configuration unit. To carry out a calibration, the operator must open the front cover of the unit, plug in the configuration unit and then present zero and span gases to the sensor during the course of the calibration procedure.
Note – These gas detectors are not certified for use in potentially explosive atmospheres and therefore must only be used in applications where it is known that potentially explosive gases do not exist.
Safe Area Gas Detectors - Mains/DC Powered
FGD14 Series

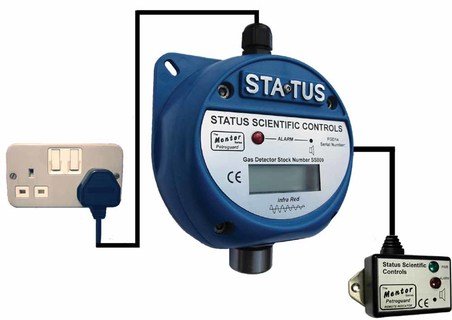

The FGD14 series are stand-alone gas detectors with a front panel display of the gas level. The detectors contain 2 control relays that can be activated via user definable alarm set points; the relay contacts can then be used to control external equipment.
An audible/visual remote unit is also provided with the detector.
Models are available for powering from either:-
- A mains supply of between 85 and 265 volts ac.
- A DC power supply from 9 to 30 volts.
Typical applications for the FGD14 series are in:-
- Water purification processes.
- Food preparation and/or storage.
- Car parks.
- Swimming pools.
- Medical applications.
They are available for detection of the following common gas types:-
Gas Type
- Ammonia>>
- Carbon Dioxide >>
- Carbon Monoxide >>
- Chlorine >>
- Ethylene Oxide >>
- Hydrogen Chloride >>
- Hydrogen Sulphide >>
- Nitric Oxide >>
- Nitrogen Dioxide >>
- Oxygen >>
- Sulpur Dioxide >>
Sensor Technology
- Electrochemical
- Infrared
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
- Electrochemical
Note – These gas detectors must only be used in applications where there is no risk of potentially explosive gases being present or of them being created through industrial processes or other activities within the area concerned.
