ATEX Gas Detector certified II 3G Ex nA II T6 (Atex Zone 2), aluminium alloy or stainless steel housing, protection rate IP65.
Available outputs: 4-20mA or relays, RS485.
TOXIC AND EXPLOSIVE GAS TRANSMITTERS
DUST series with enose® Technology
DESCRIPTION
Gas detectors DUST/AD and DUST/DY are rugged and intelligent
gas transmitter for a variety of Explosive and Toxic gases.
Main Characteristic
– Microprocessor based
– 4-20 mA output
– Three Voltage free relay contacts output
– RS-485 MODBUS RTU serial interface or
protocol for remote control and maintenance operations.
– LCD Display 8×2 characters
– Non Intrusive “One Person” calibration procedure
– Fully programmable
– Small size
– Low Power consumption

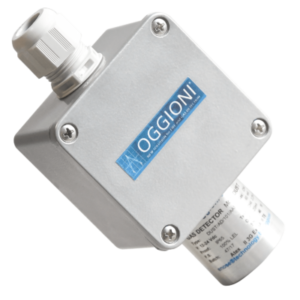

DUST-AD
IP65 Aluminium and Stainless Steel body
Ideal for detection of combustible gases and solvents
Strong poison resistant properties
Thanks to introduction of modbus or Bluetooth protocols it is possible to establish a direct communication between the sensor and your PC, PDA or Mobile Phone.
This features allow you a complete control of all sensor’s functional parameters such as Zero, Span, Sensitivity, Alarm Thresholds TWA, STEL and Download maintenance operations reports or events Log.
MAIN SUBSTANCES LIST (IR Infrared Technology)
SUBSTANCES DESCRIPTION Prod.cod.
Methane (CH4) Infrared sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/201/…
Propane (C3H8) Infrared sensor for fixed detecting systems of explosive substances 0-100% L.E.L. DUST/AD/204/…
Carbon Dioxide (CO2) Infrared sensor for fixed detecting systems of CO2 0-20000ppm (0-2%v/v) up to 0-100%v/v DUST/AD/279/…
MAIN SUBSTANCES LIST (Catalytic Technology)
Methane (CH4) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/101/…
L.P.G. (Mix) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/102/…
Propane (C3H8) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100% L.E.L. DUST/AD/104/…
Hydrogen (H2) General purpose catalytic sensor for the detection of H20-100% L.E.L. DUST/AD/127/…
Ammonia (NH3) General purpose catalytic sensor NH30-100% L.E.L. DUST/AD/140/…
Ammonia (NH3) High Quality catalytic sensor NH30-2% v/v (0-20.000ppm) DUST/AD/141S/…
MAIN SUBSTANCES LIST (Electrochemical Cells Technology)
SUBSTANCES DESCRIPTION Prod.cod.
Ammonia (NH3) Electrochemical Cell for NH30-100 / 0-500 / 0-1000 / 0-5.000 ppm DUST/AD/340/…
Carbon monoxide (CO) Electrochemical Cell for CO 0-300 / 0-500 ppm DUST/AD/320/…
Hydrogen sulphide (H2S) Electrochemical Cell for H2S 0-20 / 0-100 ppm DUST/AD/369/…
Oxygen (O2) Electrochemical Cell for O2 0-25% Vol. DUST/AD/361/…
Sulphur dioxide (SO2) Electrochemical Cell for SO2 0-20 ppm DUST/AD/370/…
MAIN SUBSTANCES LIST (PID Photoionization Detector)
VOCs Photoionization Detector optimised for VOCs 0-400 ppm (Other ranges available) DUST/AD/571/…
Outputs Configurations
Outputs Description Code
4-20 mA + RS485 Analog current loop + Serial RS485 Modbus Protocol AAS (DUST/AD & DY)
3 Relays + RS485 Voltage free contacts 1A 100 Vdc max. + Serial RS485 Modbus Protocol CCS (DUST/AD only)
3 Relays + 4-20mA + RS485 Voltage free contacts 1A 100 Vdc max. + Analog current loop + Serial RS485 Modbus Protocol CAS (DUST/DY only)
GENERAL SPECIFICATIONS
Sensors: Catalitytic pellistor or electrochemical cells or Infrared or chemical absorbtion cell
Location: Industrial sites (Classified Zone 2 areas)
Degree of protection: IP65
Short-term repeatability: ±2% FSD 60 min.
Long-term repeatability: ±5% FSD 3 months.
Accuracy(linearity): ±5% FSD
ENVIRONMENTAL SPECIFICATIONS
EMC: According to EN61000-4
Storage temperature: -40 to85 °C
Operating temperature: -20 to 70 °C
Humidity range: 90% R.H. n.c.
MECHANICAL SPECIFICATIONS
Overall dimensions: 150x80x70 mm
Materials: Aluminium or Stainless Steel
Weight: 0.5 Kg.
Mounting: 4 x 6 mm holes
Termination: PG-16 Terminal block
ELECTRICAL SPECIFICATIONS
Supply Voltage: 12-30 Vdc
Power consumption: 1 watt (AAS Version)
Supply fuse: 500 mA
Signal fuse: 63 mA
Analog output: 4-20 mA
Load: 0-300 ohms at 24Vdc
Cable Type: 3 conductors cable (4-20mA Version)
Relay Contact Rating: Max. 1A – 100Vdc – 150mΩ

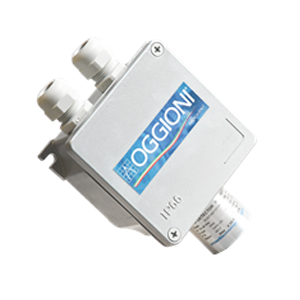

DUST/AD/ID
ATEX Gas Detector certified II 3G Ex nA II T6 (Atex Zone 2), aluminium alloy or stainless steel housing dimensions 100x100mm with double cable gland, protection rate IP65.
Available outputs: 4-20mA or relays, RS485.

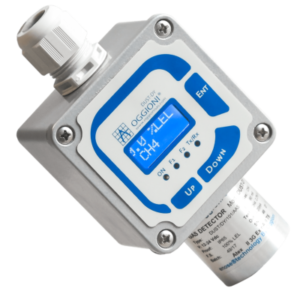

DUST/DY
ATEX Gas Detector certified II 3G Ex nA II T6 (Atex Zone 2), aluminium alloy or stainless steel housing, protection rate IP65.
With display.
Available outputs: 4-20mA or relays, RS485.
TOXIC AND EXPLOSIVE GAS TRANSMITTERS
DUST series with enose® Technology
DESCRIPTION
Gas detectors DUST/AD and DUST/DY are rugged and intelligent
gas transmitter for a variety of Explosive and Toxic gases.
Main Characteristic
– Microprocessor based
– 4-20 mA output
– Three Voltage free relay contacts output
– RS-485 MODBUS RTU serial interface or
protocol for remote control and maintenance operations.
– LCD Display 8×2 characters
– Non Intrusive “One Person” calibration procedure
– Fully programmable
– Small size
– Low Power consumption
DUST-DY
IP65 Aluminium and Stainless Steel body with display
Sturdy construction
Built-in or remote sensor transmitter
Built-in relays enable full stand-alone capability
Comply with: EN-60079-0, EN 60079-29-1, EN-50270.
Type of protection: II 3G Ex nA II T6 IP65
MAIN SUBSTANCES LIST (IR Infrared Technology)
SUBSTANCES DESCRIPTION Prod.cod.
Methane (CH4) Infrared sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/201/…
Propane (C3H8) Infrared sensor for fixed detecting systems of explosive substances 0-100% L.E.L. DUST/AD/204/…
Carbon Dioxide (CO2) Infrared sensor for fixed detecting systems of CO2 0-20000ppm (0-2%v/v) up to 0-100%v/v DUST/AD/279/…
MAIN SUBSTANCES LIST (Catalytic Technology)
Methane (CH4) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/101/…
L.P.G. (Mix) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100%L.E.L. DUST/AD/102/…
Propane (C3H8) General purpose catalytic sensor for fixed detecting systems of explosive substances 0-100% L.E.L. DUST/AD/104/…
Hydrogen (H2) General purpose catalytic sensor for the detection of H20-100% L.E.L. DUST/AD/127/…
Ammonia (NH3) General purpose catalytic sensor NH30-100% L.E.L. DUST/AD/140/…
Ammonia (NH3) High Quality catalytic sensor NH30-2% v/v (0-20.000ppm) DUST/AD/141S/…
MAIN SUBSTANCES LIST (Electrochemical Cells Technology)
SUBSTANCES DESCRIPTION Prod.cod.
Ammonia (NH3) Electrochemical Cell for NH30-100 / 0-500 / 0-1000 / 0-5.000 ppm DUST/AD/340/…
Carbon monoxide (CO) Electrochemical Cell for CO 0-300 / 0-500 ppm DUST/AD/320/…
Hydrogen sulphide (H2S) Electrochemical Cell for H2S 0-20 / 0-100 ppm DUST/AD/369/…
Oxygen (O2) Electrochemical Cell for O2 0-25% Vol. DUST/AD/361/…
Sulphur dioxide (SO2) Electrochemical Cell for SO2 0-20 ppm DUST/AD/370/…
MAIN SUBSTANCES LIST (PID Photoionization Detector)
VOCs Photoionization Detector optimised for VOCs 0-400 ppm (Other ranges available) DUST/AD/571/…
Outputs Configurations
Outputs Description Code
4-20 mA + RS485 Analog current loop + Serial RS485 Modbus Protocol AAS (DUST/AD & DY)
3 Relays + RS485 Voltage free contacts 1A 100 Vdc max. + Serial RS485 Modbus Protocol CCS (DUST/AD only)
3 Relays + 4-20mA + RS485 Voltage free contacts 1A 100 Vdc max. + Analog current loop + Serial RS485 Modbus Protocol CAS (DUST/DY only)
GENERAL SPECIFICATIONS
Sensors: Catalitytic pellistor or electrochemical cells or Infrared or chemical absorbtion cell
Location: Industrial sites (Classified Zone 2 areas)
Degree of protection: IP65
Short-term repeatability: ±2% FSD 60 min.
Long-term repeatability: ±5% FSD 3 months.
Accuracy(linearity): ±5% FSD
ENVIRONMENTAL SPECIFICATIONS
EMC: According to EN61000-4
Storage temperature: -40 to85 °C
Operating temperature: -20 to 70 °C
Humidity range: 90% R.H. n.c.
MECHANICAL SPECIFICATIONS
Overall dimensions: 150x80x70 mm
Materials: Aluminium or Stainless Steel
Weight: 0.5 Kg.
Mounting: 4 x 6 mm holes
Termination: PG-16 Terminal block
ELECTRICAL SPECIFICATIONS
Supply Voltage: 12-30 Vdc
Power consumption: 1 watt (AAS Version)
Supply fuse: 500 mA
Signal fuse: 63 mA
Analog output: 4-20 mA
Load: 0-300 ohms at 24Vdc
Cable Type: 3 conductors cable (4-20mA Version)
Relay Contact Rating: Max. 1A – 100Vdc – 150mΩ
