Thermoplastic Flow Measuring Instruments

Thermoplastic Flow Measuring Instruments -iconprocon 2021-01-27T11:07:44+01:00

IN-LINE PADDLE WHEEL

thermoplastic flow measuring instruments -TKB In-Line Paddle Wheel Flow Meter

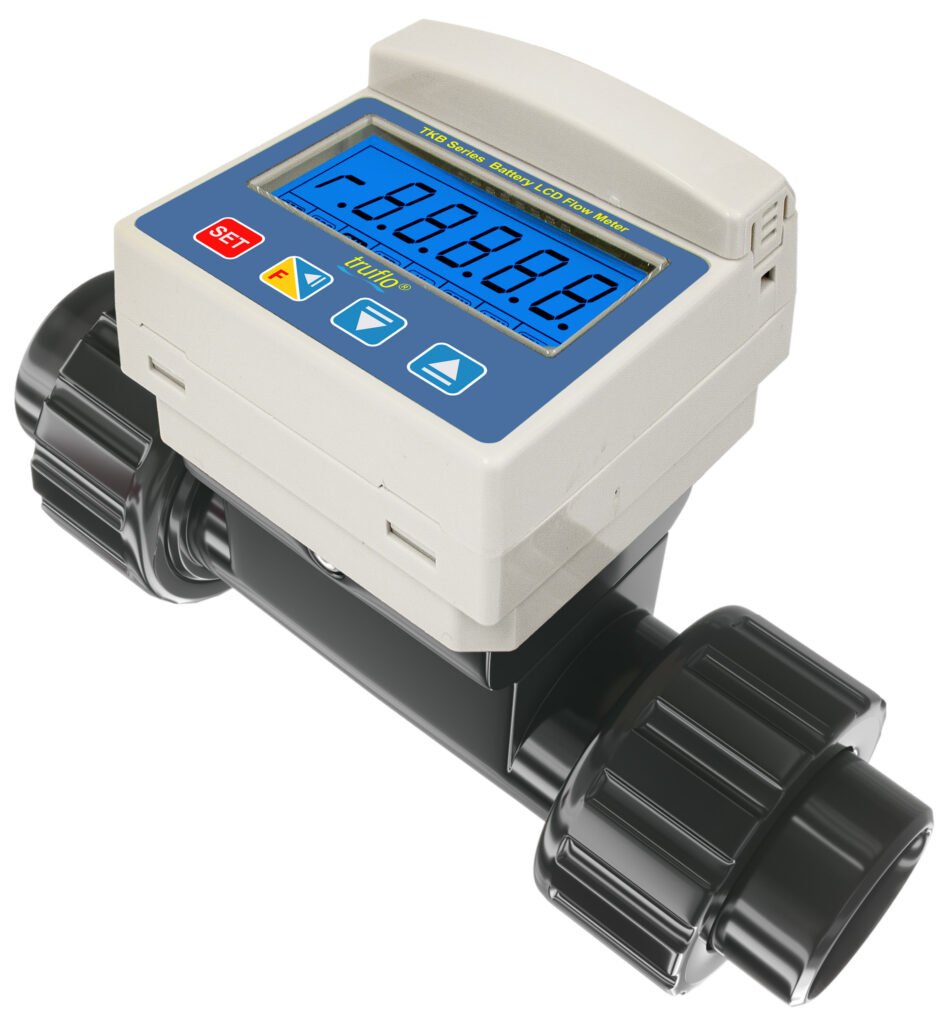

TKB In-Line Paddle Wheel Flow Meter

The TKB Series battery operated paddle wheel flow meter has been designed for tough industrial applications. The TKB series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic in-line flow meter is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TKB series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKB in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3B Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.

  • Battery Operated Back-lit LCD Display
  • Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tks in-line paddle wheel flowmeter

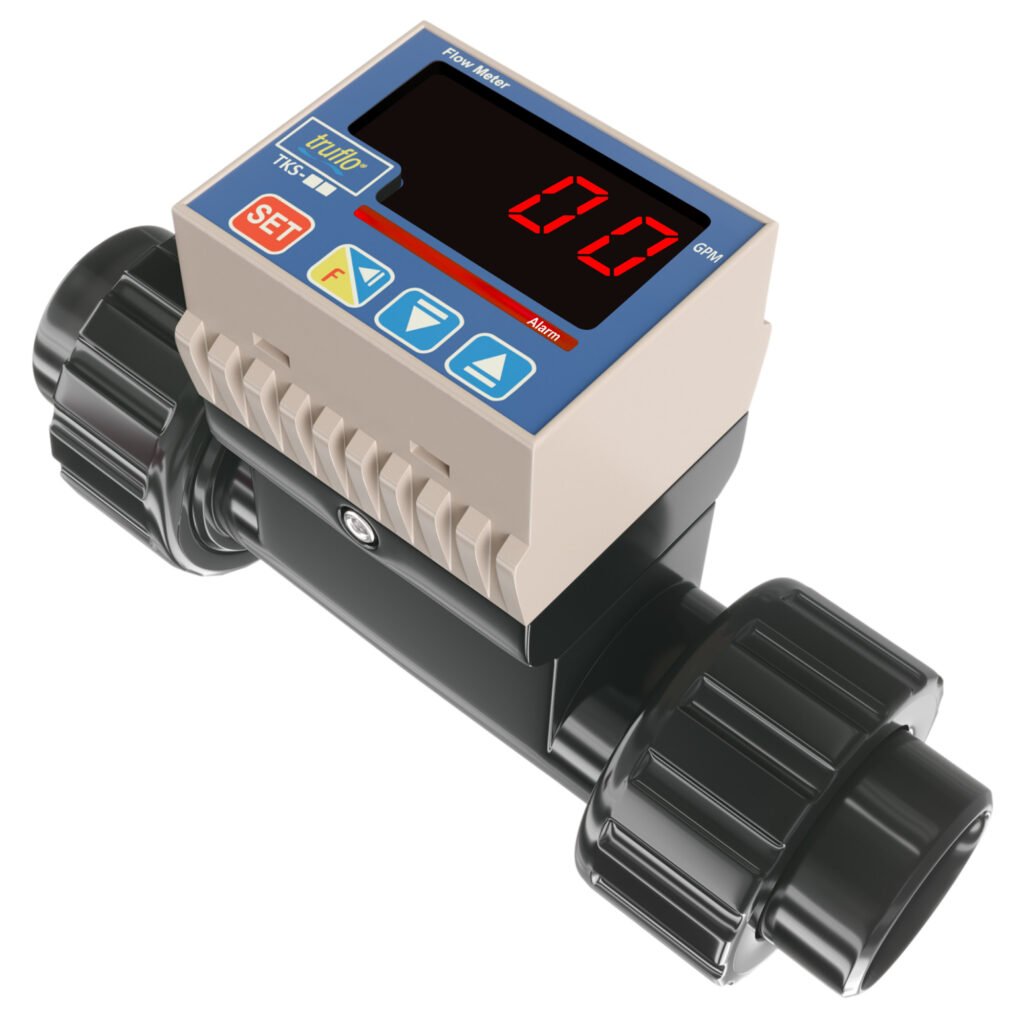

TKS In-Line Paddle Wheel Flow Meter

The TKS Series digital paddle wheel flow meter has been designed for tough industrial applications. The TKS series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic in-line flow meter is equipped with a 360° rotatable vivid LED display showing Flow Rate and provides a pulse output and a 1 Amp relay. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TKS series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKS in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3S Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.

  • Frequency Pulse + 1 Amp Relay
  • Bright LED Display | Flow Rate
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tkp-in-line-paddle-wheel-flow-meter-rotating-display-1

TKP In-Line Paddle Wheel Flow Meter

The TKP Series digital paddle wheel flow meter has been designed for tough industrial applications. The TKP series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic in-line flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a frequency pulse output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TKP series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKP in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3P Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.

  • Frequency Pulse Output | RS485 (opt)
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tkm-in-line-paddle-wheel-flow-meter-details1-100x100

TKM In-Line Paddle Wheel Flow Meter

The TKM Series digital paddle wheel flow meter has been designed for tough industrial applications. The TKM series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic in-line flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TKM series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKM in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3M Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.

  • 4-20mA Output
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tkw-in-line-paddle-wheel-flow-meter

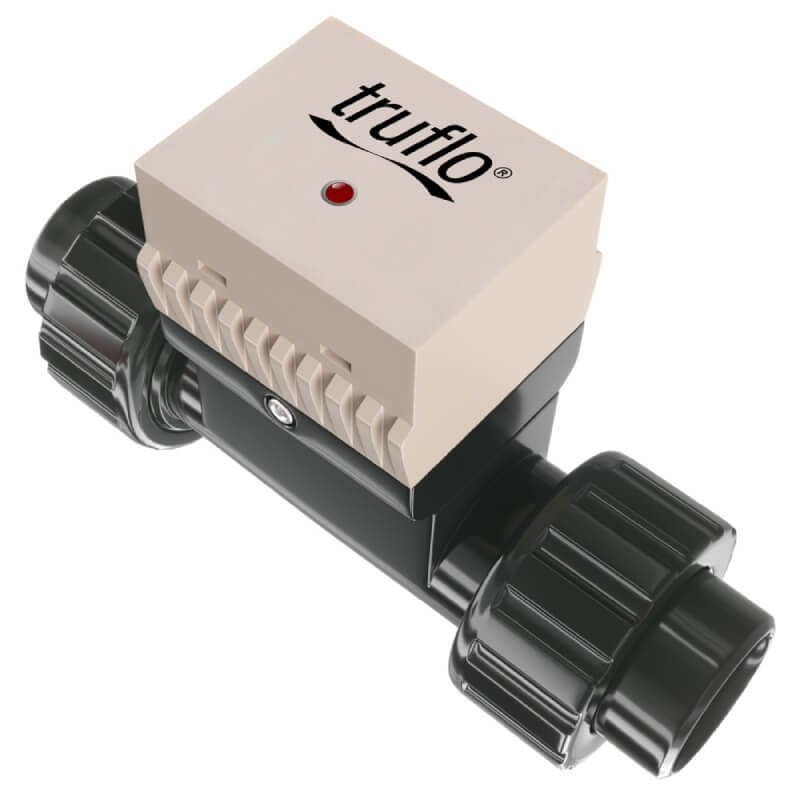

TKW In-Line Paddle Wheel Flow Meter

The TKW Series paddle wheel flow meter has been designed for tough industrial applications. The TKW series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic in-line flow meter is a blind unit equipped with an LED flow indicator and can provide pulse, 4-20mA or voltage outputs. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TKW series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKW in-line paddle wheel flow meter incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3W Series Stainless Steel Flow Meter has a 316SS body and is available with NPT, flanged or sanitary end connections.

  • NPN Pulse | Voltage | 4-20mA Outputs
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • Chemical Resistant Materials: PVC | PP | PVDF
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Chemical Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Chemical Distribution
  • Process Chemical Skids
  • Liquid Consumption
  • Discharge Verification
tk3b-in-line-paddle-wheel-flow-meter-600x600

TK3B In-Line Paddle Wheel Flow Meter

The TK3B Series stainless steel battery-operated paddle wheel flow meter has been designed for tough industrial applications. The TK3B series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement for liquids. The 316SS in-line flow meter is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3B series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3B Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKB plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.

  • Battery Operated Back-lit LCD Display
  • Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • 316 Stainless Steel Body
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • Liquid Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Liquid Distribution
  • Process Skids
  • Liquid Consumption
  • Discharge Verification

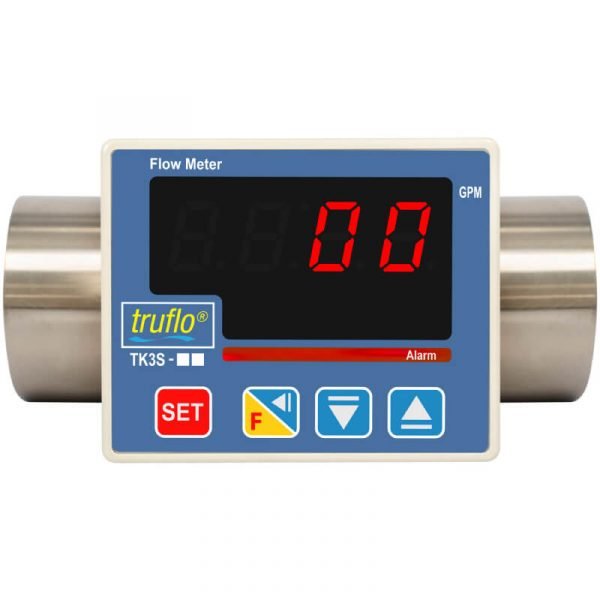

TK3S In-Line Paddle Wheel Flow Meter

The TK3S Series stainless steel digital paddle wheel flow meter has been designed for tough industrial applications. The TK3S series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter is equipped with a 360° rotatable vivid LED display showing Flow Rate and provides a pulse output and a 1 Amp relay. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3S series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3S Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKS plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.

  • Frequency Pulse + 1 Amp Relay
  • Bright LED Display | Flow Rate
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • 316 SS Body
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • NPT or Sanitary Connections
  • Liquid Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Liquid Distribution
  • Process Skids
  • Liquid Consumption
  • Discharge Verification
tk3p-in-line-paddle-wheel-flow-meter-600x600

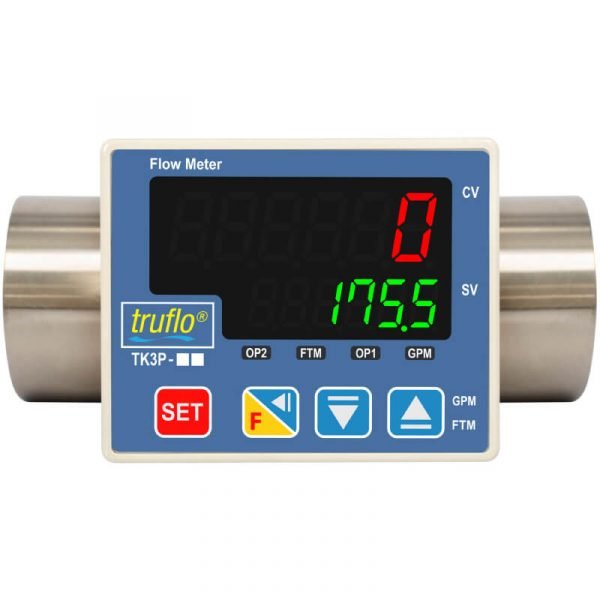

TK3P In-Line Paddle Wheel Flow Meter

The TK3P Series stainless steel digital paddle wheel flow meter has been designed for tough industrial applications. The TK3P series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a frequency pulse output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3P series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3P Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKP plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.

  • Frequency Pulse Output | RS485 (opt)
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • 316 SS Body
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • NPT or Sanitary Connections
  • Liquid Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Liquid Distribution
  • Process Skids
  • Liquid Consumption
  • Discharge Verification
tk3m-in-line-paddle-wheel-flow-meter-600x600

TK3M In-Line Paddle Wheel Flow Meter

The TK3M Series stainless steel digital paddle wheel flow meter has been designed for tough industrial applications. The TK3M series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a 4-20mA output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3M series liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3M Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKM plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.

  • 4-20mA Output
  • Bright LED Display | Flow Rate | Total
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • 316 SS Body
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • NPT or Sanitary Connections
  • Liquid Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Liquid Distribution
  • Process Skids
  • Liquid Consumption
  • Discharge Verification
thermoplastic flow measuring instruments - tk3w-in-line-paddle-wheel-flow-meter-600x600

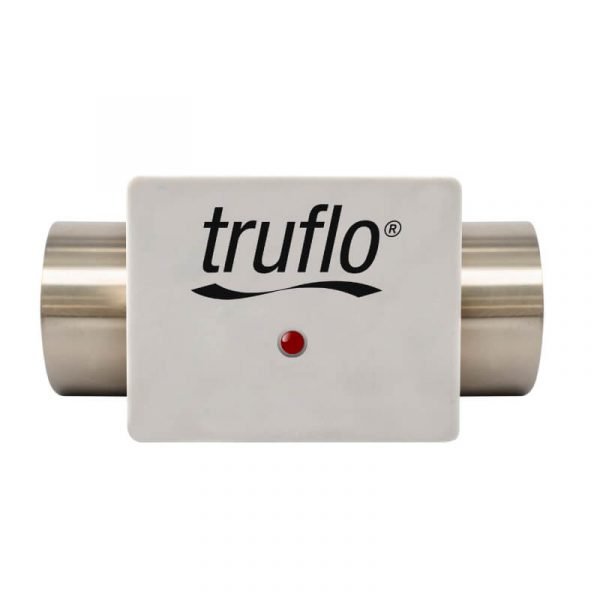

TK3W In-Line Paddle Wheel Flow Meter

The TK3W Series stainless steel paddle wheel flow meter has been designed for tough industrial applications. The TK3W series paddle wheel flow meter has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter is a blind unit equipped with an LED flow indicator and can provide pulse, 4-20mA or voltage outputs. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter.

Icon’s paddle wheel flow sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3W series battery operated liquid flow meter, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3W Series stainless steel flow meter has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKW plastic in-line paddle wheel flow meters incorporate a true-union design with body materials available in PVC, PP and PVDF.

  • NPN Pulse | Voltage | 4-20mA Outputs
  • Life-Time Warranty on Paddle Assembly
  • Industry’s Highest Accuracy: +/- 0.5%
  • 316 SS Body
  • No Programming
  • Tefzel® Paddle Wheel
  • Zirconium Ceramic Rotor | Bushings
  • NPT or Sanitary Connections
  • Liquid Flow Measurement
  • Filtration Systems
  • Water & Wastewater Monitoring
  • Industrial Liquid Distribution
  • Process Skids
  • Liquid Consumption
  • Discharge Verification
