Ultrasonic Thickness Gauge

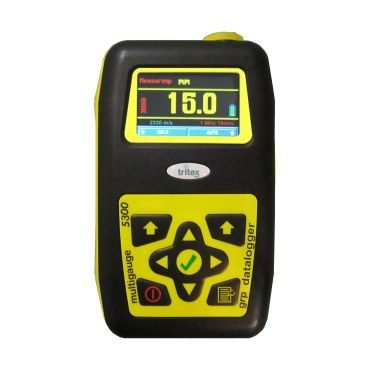

MULTIGAUGE 5300 GRP THICKNESS GAUGE
Designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal.
- Measures GRP or all types of engineering plastic.
- Large colour LCD display giving user information.
- No zeroing required.
- Single crystal hard faced probe.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- Datalogging version with wireless data transmission.
- 3 year warranty.
- Free calibration for the life of the gauge.
The Multigauge 5300 GRP thickness gauge is a simple, robust ultrasonic thickness gauge designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal. The easy to use keypad allows operator interface, whilst the bright colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance.
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal hard faced – 1 MHz
Measurement Range: 2 – 300 mm (0.08” – 11.8”) depending on material being measured
Probe Sizes: 19 mm (0.75”)
Measurement Mode: Single Echo / Echo – Echo
Resolution: 0.1 mm (0.005”)
Accuracy: ± 0.1 mm (0.005”)
Display: Colour LCD
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)
- Measures GRP or all types of engineering plastic.
- Large colour LCD display giving user information.
- No zeroing required.
- Single crystal hard faced probe.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- Datalogging version with wireless data transmission.
- 3 year warranty.
- Free calibration for the life of the gauge.
Multigauge 5300 GRP thickness gauge, hard faced probe, probe lead, ultrasonic gel, 15mm test block, batteries, manual, calibration certificate, carry case.
Options:
Protective leather case.

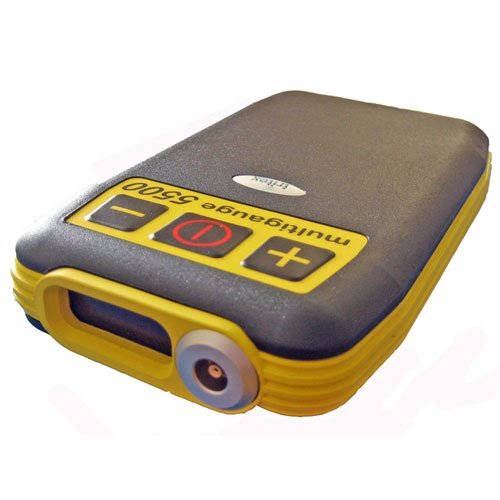

MULTIGAUGE 5500 WAIST
The Multigauge 5500 metal thickness tester has been designed for hands free use when climbing on staging, scaffolding, ladders or when accessing by rope. It uses Multiple Echo to ignore coatings, measuring only the remaining metal thickness.
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)
- Ideal for rope access applications
- Easy to use
- Large LED display for good visibility in low light conditions
- Easy calibration with menu driven buttons
- Rugged, durable and robust
- Designed for hands free use
- No zeroing required
The Multigauge 5500 metal thickness tester has been designed for hands free use when climbing on staging, scaffolding, ladders or when accessing by rope. Whether it’s onboard a ship, on large storage tanks, climbing on top of a road tanker or carrying out inspections underneath a bridge, the 5500 will measure the thickness with ease. The gauge uses multiple echo to ignore coatings up to 6mm thick. It can be mounted onto a waist belt or chest harness when using rope access. The top display ensures the measurements are clearly visible, even in difficult gauging and lighting conditions. A protective leather case is also available.
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz
Measurement Range: 1 – 250 mm (0.04” – 10”) depending on probe used
Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display: Red 4 character 7 segment LED
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 320 g (11.3 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)
- Ideal for rope access applications
- Easy to use
- Large LED display for good visibility in low light conditions
- Easy calibration with menu driven buttons
- Rugged, durable and robust
- Designed for hands free use
- No zeroing required
Multigauge 5500 metal thickness tester, probe, probe lead, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, batteries, manual, calibration certificate, carry case, belt clip.
Options:
Protective leather case.

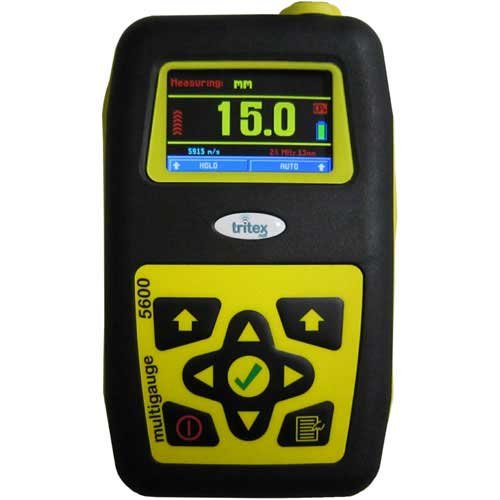

MULTIGAUGE 5600 HAND HELD
The popular Multigauge 5600 ultrasonic thickness meter is a simple, robust thickness meter designed for most common thickness gauging applications. It uses Multiple Echo to ignore coatings, measuring only the metal thickness.
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Echo strength indicator
- Measurement hold feature
- Rugged, durable and robust
- Leather protective case available
- No zeroing required
- Large bright colour LCD display giving user information
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)
- Easy calibration with menu driven buttons
- Easy to use clear graphic menu
The Multigauge 5600 ultrasonic thickness meter is a simple, robust ultrasonic thickness gauge designed for most common thickness gauging applications. The easy to use keypad allows operator interface whilst the bright full colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. The gauge uses multiple echo to ignore coatings up to 6mm thick. . All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals. A protective leather case is also available.
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz
Measurement Range: 1 – 250 mm (0.04” – 10”) depending on probe used
Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display: Colour LCD
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Echo strength indicator
- Measurement hold feature
- Rugged, durable and robust
- Leather protective case available
- No zeroing required
- Large bright colour LCD display giving user information
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)
- Easy calibration with menu driven buttons
- Easy to use clear graphic menu
Multigauge 5600 ultrasonic thickness meter, probe, probe lead, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, batteries, manual, calibration certificate, carry case.
Options:
Protective leather case.

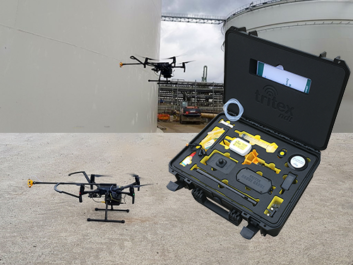

MULTIGAUGE 6000 DRONE THICKNESS GAUGE
The Multigauge 6000 Drone Thickness Gauge has been designed specifically to mount onto a drone or UAV. This new technology has already had many successful installations on various models of drone and this is the first dedicated drone thickness gauge available worldwide.
- Easily mounts onto most drone and UAV types.
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Automatic Measurement Verification System (AMVS).
- Wirelessly transmits measurements up to 500m.
- Used with Tritex Gel Dispenser which is wirelessly controlled from Communicator software
- Lightweight.
- No zeroing required.
- 10Vdc – 32Vdc input supply.
- Lightweight single crystal soft faced probe. Can be used in any orientation.
- Easy calibration.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- 3 year warranty.
The Multigauge 6000 UT Drone Thickness Gauge has been specifically designed to mount onto drones or unmanned aerial vehicles (UAV). The measurements are transmitted wirelessly in real time to a PC or laptop up to 500 metres away. The lightweight drone thickness gauge is also supplied with a plastic probe to further reduce weight.
The Tritex Multigauge 6000 Drone Thickness Gauge is the first commercially available dedicated thickness gauge for mounting onto a drone, developed over many years with lots of successful installations. It has been designed for easy integration, wirelessly transmitting accurate measurements, not including the coatings, up to 500m away. These are displayed on a dedicated software, called Communicator, where readings can be stored in a grid or string format, which is entirely customizable. The gauge is supplied with a lightweight plastic probe and optional probe holder and wet gel dispenser, controlled wirelessly through Communicator software, to accurately apply gel to the face of the probe when required.
Multiple Echo technology ignores coatings up to 6mm thick, therefore just the metal substrate is measured. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals.
- Easily mounts onto most drone and UAV types.
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Automatic Measurement Verification System (AMVS).
- Wirelessly transmits measurements up to 500m.
- Used with Tritex Gel Dispenser which is wirelessly controlled from Communicator software
- Lightweight.
- No zeroing required.
- 10Vdc – 32Vdc input supply.
- Lightweight single crystal soft faced probe. Can be used in any orientation.
- Easy calibration.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- 3 year warranty.
Multigauge 6000 UT Drone gauge, probe, probe lead, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, power supply, power – XT30 connector lead, manual, calibration certificate, carry case.
Options:
Drone Thickness Gauge Probe Holder
Tritex Gel Dispenser

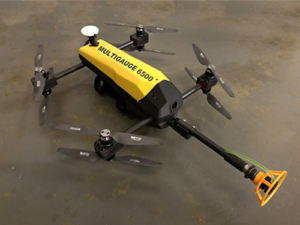

MULTIGAUGE 6500 DRONE (INCLUDING MULTIGAUGE 6000)
The Multigauge 6500 Drone with Ultrasonic Thickness Gauge has been designed as a complete safe solution for checking high level corrosion without scaffolding or rope access. The Multigauge 6500 is a ‘Flying Thickness Gauge’ that incorporates DJI controllers for the best performance and to allow easy upgrades.
The Multigauge 6500 Drone has been specifically designed to offer a complete drone thickness gauging solution to customers who are not previously familiar with drones. The drone has been designed around the popular Multigauge 6000 Drone Thickness Gauge.
The Multigauge 6500 Drone is a coaxial Octocopter which offers multiple motor redundancy and keeps airframe size to a minimum. Operating off 2 x 4s 4 cell batteries provides additional redundancy and flight times up to 18 minutes with an all up weight of just 3kg, including the gauge. It operates using a DJI N3 flight controller and a DJI Lightbridge 2 controller for complete versatility. An integral camera stores video in 1080 and steams in 720. The drone has been designed for reliability and has a small footprint for easy transportation in a Peli 1600 case. It is supplied with folding propellers and ready to fly . The Tritex Multigauge 6000 Drone Gauge and Gel Dispenser are accessible by removing the yellow top canopy.
1 x Drone
8 x Propellers
1 x Set of Batteries (2 batteries)
1 x Charger + Required Leads and Charge Bag
2 x Propeller Guards
1 x Allen Key Set
1 x Instruction Manual
1 x RC Controller + Tablet Mount
1 x Battery Checker
Drone to be used in conjunction with the Multigauge 6000 Drone Thickness Gauge.

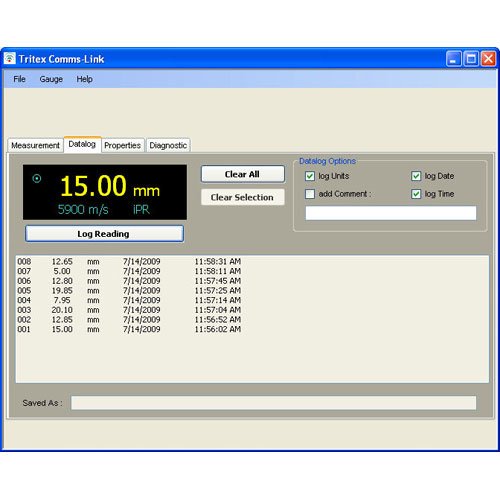

COMMUNICATOR SOFTWARE
Tritex Communicator software is a dedicated datalogging software for use with all gauges in the Tritex range which have datalogging capabilities.
Tritex Communicator software displays live measurement results from either the Multigauge 3000 Underwater ultrasonic thickness testers or the Multigauge 4000 series ROV ultrasonic thickness testers onto either a laptop or PC. It is also used with the Multigauge 5700, Multigauge 5350, and Multigauge 5750 ultrasonic thickness testers.
Templates can be preset based on a grid, string of measurements or a combination of both. This gives maximum versatility for a wide range of applications including measurements on pipelines, pilings or ship hulls.
As well as storing measurement data, Communicator software also has the option to store the time, date and an identifying label for each measurement. In addition, various settings within either gauge can be changed from the software to optimise performance.
The stored data is saved in a standard TXT format allowing importation into standard analysing programs.
It also remotely displays measurements from surface gauges up to 1000m away.
- Displays real time measurements from the Multigauge 3000, Multigauge 4000 and Multigauge 5700 ultrasonic thickness testers
- Remotely displays measurements from surface gauges up to 1000m away
- Easy to install and very user friendly
- Datalogging with grid or string templates, or a combination of both
- Bi-directional to allow settings in the gauge to be changed when used with the Multigauge 3000 or Multigauge 4000 underwater gauges
- Accepts RS232 or RS422 input
- Time, date and a label can be added to each measurement value
- Common output interface (.txt)
- Easy to use wizards for templete programming

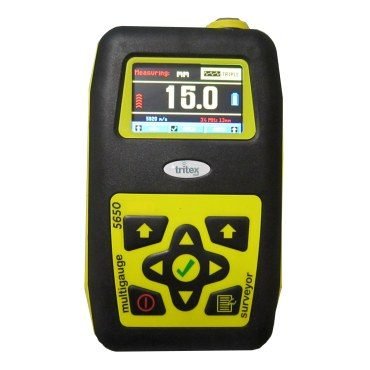

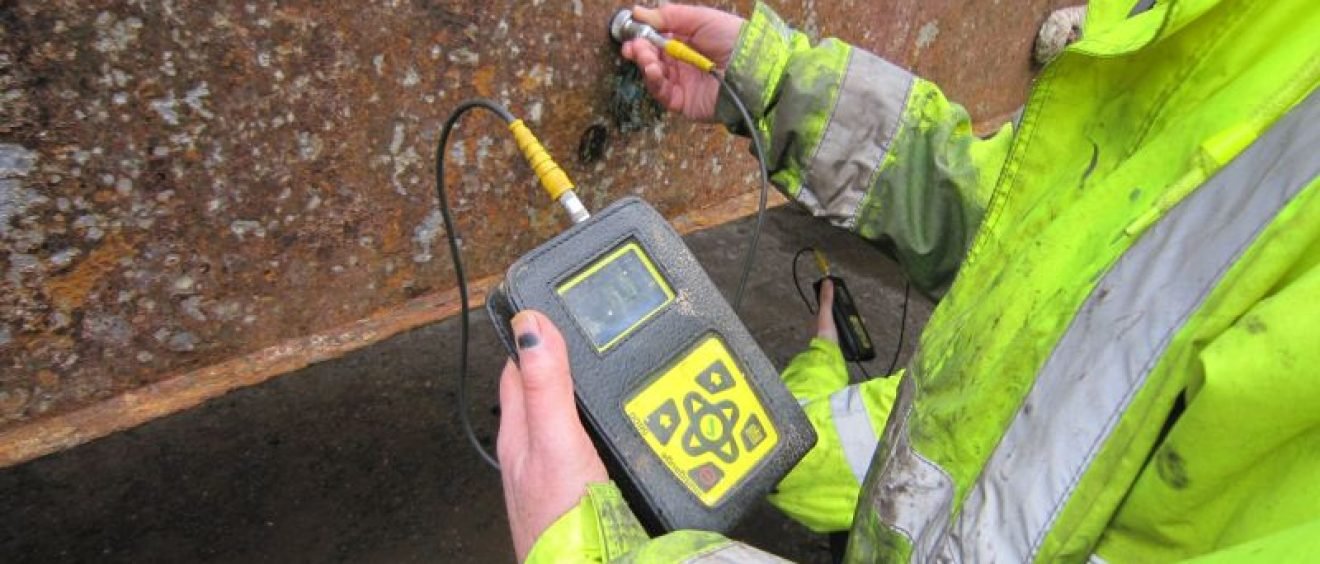

MULTIGAUGE 5650 SURVEYOR THICKNESS GAUGE
For ship and small craft surveyors, but can also be used in applications where different measurement modes are required. The user has a choice of Multiple Echo, Echo to Echo or Single Echo to cover all requirements. The gauge can be used for metal, GRP or plastic measurement.
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Single crystal soft faced probes protected by a membrane and single crystal hard faced probes for linear accuracy.
- Automatic Measurement Verification System (AMVS) in multiple echo mode.
- Echo – Echo mode for enhanced performance.
- Inspect GRP for osmosis.
- Large colour LCD display giving user information.
- No zeroing required.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
The Multigauge 5650 Surveyor Thickness Gauge is a simple, robust ultrasonic thickness gauge designed specifically for ship and small craft surveyors, but can also be used in applications where different measurement modes are required. The user has a choice of Multiple Echo, Echo to Echo or Single Echo to cover all requirements. The gauge can be used for metal, GRP or plastic measurement and it automatically switches modes and settings depending on the type of probe fitted. The easy to use keypad allows operator interface whilst the bright LCD display can be used in all light conditions. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) used with multiple echo ensures only true measurements are displayed, even on the most heavily corroded metals.
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Single Crystal Probe Options: 1 MHz 2.25 MHz 3.5 MHz 5 MHz
Probe Type: Hard Faced – Soft Faced – Soft Faced – Soft Faced
Probe Measurement Range:
2 – 300 mm
(0.080” to 11”)
3 – 250 mm
(0.120” to 9”)
2 – 150 mm
(0.080” to 6”)
1 – 50 mm
(0.040” to 2”)
Probe Sizes: 19 mm (0.75”) 13 mm (0.5”)
19 mm (0.75”) 13 mm (0.5”) 6 mm (0.25”)
13 mm (0.5”
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display: Multi character Colour LCD
Batteries: 3 x disposable AA alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 Hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65. RoHS and WEEE compliant
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Storage Temperature: -10°C to +60°C (14°F to 140°F)
Multigauge 5750 Datalogger Only
Storage capacity: 32 Mb
Data Transmission: Wireless RF
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Single crystal soft faced probes protected by a membrane and single crystal hard faced probes for linear accuracy.
- Automatic Measurement Verification System (AMVS) in multiple echo mode.
- Echo – Echo mode for enhanced performance.
- Inspect GRP for osmosis.
- Large colour LCD display giving user information.
- No zeroing required.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
Multigauge 5650 Surveyor thickness gauge, soft faced probe, hard faced probe, probe lead, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, batteries, manual, calibration certificate, carry case.
Options:
Protective leather case.

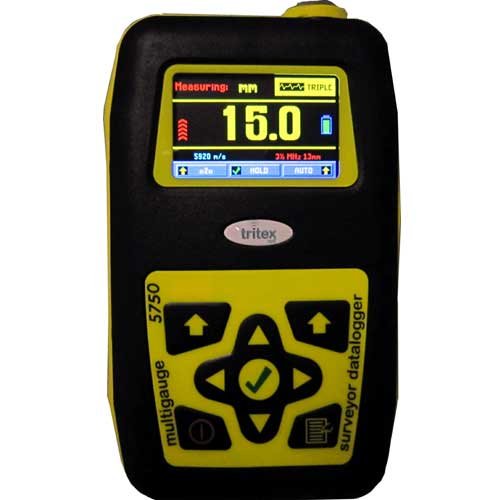

MULTIGAUGE 5750 SURVEYOR DATALOGGER THICKNESS METER
Used for ship and small craft surveyors, but can also be used in applications where different measurment modes are required. The user has a choice of Multiple Echo, Echo to Echo or Single Echo to cover all requirements. The gauge can be used for metal, GRP or plastic measurement. Measurements can be stored on the gauge and wirelessly transferred to the PC.
The Multigauge 5750 Surveyor Thickness Meter is a simple, robust ultrasonic thickness gauge designed specifically for ship and small craft surveyors, but can also be used in applications where different measurment modes are required. The user has a choice of Multiple Echo, Echo to Echo or Single Echo to cover all requirements. The gauge can be used for metal, GRP or plastic measurement and it automatically switches modes and settings depending on the type of probe fitted. It has the added benefit of being able store measurements on the gauge and remotely displaying measurements on a PC. The easy to use keypad allows operator interface whilst the bright LCD display can be used in all light conditions. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) used with multiple echo ensures only true measurements are displayed, even on the most heavily corroded metals.
Measurements can be logged using a grid or string format. The gauge will store up to 895 files, each containing 100 records. Each record can store either a string of 250 or grid of 16 x 16 measurements. The simple, easy to use menu guides the user through intuitive setup procedures.
The Surveyor thickness meter uses wireless technology to transmit the measurements to the PC where dedicated Communicator software allows the analysis of the results or easy production of templates using wizards. Measurements are stored in a .txt format so that they can be opened in other applications.
Measurements can also be displayed remotely on a PC up to 1000 metres away.
Sound Velocity Range: From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz / Single crystal hard faced – 1 MHz
Measurement Range: 1 – 300 mm (0.04” – 11.8”) depending on probe use
Probe Sizes: 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Measurement Mode: Multiple Echo / Echo – Echo / Single Echo
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display: Colour LCD
Storage Capacity: 32 Mb
Data Transmission: Wireless RF
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Batteries: 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life: Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions: 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight: 325 g (11.5 ounces) including batteries
Environmental: Case rated to IP65, RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Single crystal soft faced probes protected by a membrane and single crystal hard faced probes for linear accuracy.
- Automatic Measurement Verification System (AMVS) in multiple echo mode.
- Echo – Echo mode for enhanced performance.
- Inspect GRP for osmosis.
- Wireless data transmission.
- Displays measurements on a PC up to 1000m away.
- Large colour LCD display giving user information.
- No zeroing required.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
Multigauge 5750 Surveyor thickness meter, soft faced probe, hard faced probe, probe lead, RF transceiver, Communicator software, spare membranes, membrane oil, ultrasonic gel, 15mm test block, membrane key, batteries, manual, calibration certificate, carry case.
Options:
Protective leather case.

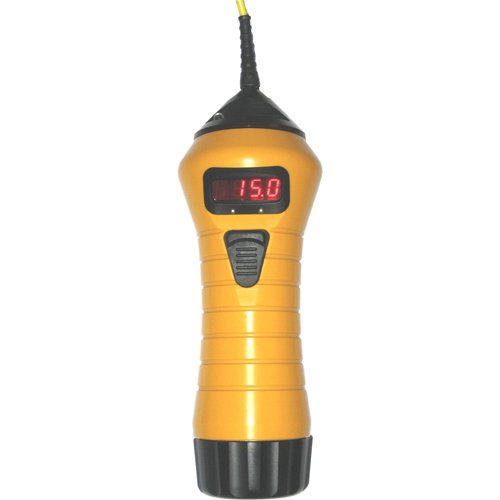

MULTIGAUGE 3000 UNDERWATER THICKNESS METER
The Multigauge 3000 Underwater Thickness Meter is designed to be used by a diver for most common underwater thickness gauging applications. It is a simple, robust, hand held meter which uses Multiple Echo to ignore coatings, measuring only the remaining metal thickness.
- Intelligent Probe Recognition (IPR)
- Automatic Measurement Verification (AMVS)
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Integral battery with 55 hour runtime on one fast charge. No need for a spare battery
- Rugged, durable and robust
- No fuss upgrade option to a topside repeater
- No zeroing required
- Large 10mm display for good visibility in poor visibility applications
- Easy to use
- Pressure tested to 500m
- Hand held gauge for ease of use
- Easy calibration with menu driven buttons
The Multigauge 3000 Underwater Thickness Meter is a simple, robust ultrasonic thickness gauge designed for most common underwater thickness gauging applications. The meter is pressure tested to 500m and has the option to transfer measurements to a Surface Display Unit or Communicator Software with the simple addition of a replacement end cap. It has been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide. The gauge uses multiple echo which means measurements can be easily taken without the need to remove coatings, up to 6mm thick, and the large bright LED display ensures the display can be seen by the diver, even in poor visibility.
The Multigauge 3000 Underwater Thickness Meter is equipped with Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge for enhanced performance and Automatic Measurement Verification System (AMVS) to ensure only true measurements are displayed, even on the most heavily corroded metals. Only one single crystal probe type is required for all gauging applications. The meter is supplied as a complete kit ready to use out of the case, with a 3 year warranty and free annual calibration for the life of the gauge.
Sound Velocity Range: 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes: Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz
Measurement Range: 1 – 250 mm (0.04” – 10”) depending on probe used
Probe Sizes: 13 mm (0.5”) & 19 mm (0.75”)
Resolution: 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy: ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Coatings Range: Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Display: Large red 4 character 7 segment LED
Depth Rating: 500 metres
Batteries: 1 x rechargeable 7.2V 2.3Ah NiMH battery pack
Battery Life: 55 Hours on one fast charge of 2 hours
Gauge Dimensions: 235 mm x 80 mm (9.25” X 3.15”)
Gauge Weight: 1110 g (38.85 ounces) fully assembled
Environmental: RoHS and WEEE compliant
Operating Temp: -10°C to +50°C (14°F to 122°F)
Storage Temp: -10°C to +60°C (14°F to 140°F)
- Intelligent Probe Recognition (IPR)
- Automatic Measurement Verification (AMVS)
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Integral battery with 55 hour runtime on one fast charge. No need for a spare battery
- Rugged, durable and robust
- No fuss upgrade option to a topside repeater
- No zeroing required
- Large 10mm display for good visibility in poor visibility applications
- Easy to use
- Pressure tested to 500m
- Hand held gauge for ease of use
- Easy calibration with menu driven buttons
Multigauge 3000 Underwater Thickness Meter with integral battery, standard 2.25Mhz 13mm probe, spare membranes, membrane oil, 15mm test block, membrane key, spare ‘O’ rings, Molykote grease, nose cone release bar, battery charger with appropriate power lead, manual, calibration certificate and Peli carry case. Gauge supplied ready to use out of the box.

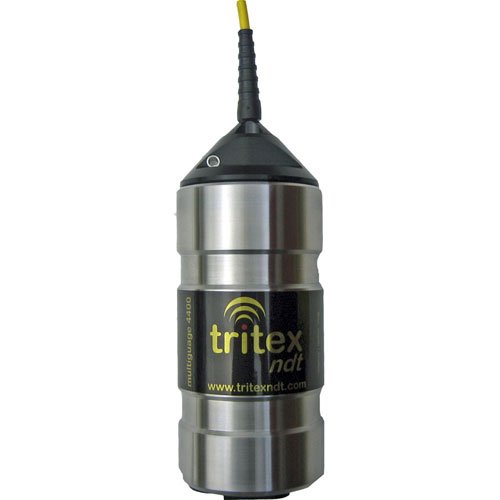

MULTIGAUGE 4000 SERIES ROV UNDERWATER THICKNESS GAUGE
The Multigauge 4100 and 4400 ROV Underwater Thickness Gauges mount onto most types ROV. There are two models in the range, the Multigauge 4100 which has a depth rating of 1000m and the Titanium Multigauge 4400 which has a depth rating of 4000m.
- Compatible with most ROV’s
- Depth rating to 1000 m (3280’) and 4000 m (13,123’)
- User selectable RS422 or RS232 output
- Intelligent Probe Recognition (IPR)
- Automatic Measurement Verification (AMVS)
- Ignores coatings up to 6mm thick using multiple echo and 20 mm with Coating Plus+ selected
- Rugged, durable and robust
- No zeroing required
- Easy to use Datalogging software
- Dedicated probe holder for correct presentation of the probe on flat and curved surfaces
The Multigauge 4100 and 4400 Underwater Thickness Gauges are simple, robust ultrasonic thickness gauges designed to be mounted onto all types of work class ROV’s. There are two models in the range, the Multigauge 4100 which has a depth rating of 1000m and the Titanium Multigauge 4400 which has a depth rating of 4000m. Both gauges have been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide. The gauges use multiple echo which means measurements can be easily taken without the need to remove coatings, up to 6mm thick, and the user selectable RS422 / RS232 output makes connection to most ROV’s simple. Both gauges link to Tritex NDT’s dedicated software called Communicator.
The ROV underwater thickness gauges are equipped with Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge for enhanced performance and Automatic Measurement Verification System (AMVS) to ensure only true measurements are displayed, even on the most heavily corroded metals. Both ROV underwater thickness gauges are supplied as complete kits.
A dedicated probe holder ensures correct presentation of the probe to the surface being measured.
Sound Velocity Range From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Single Crystal
Soft Faced Probe Options : 2.25 MHz 3.5 MHz 5 MHz
Probe Measurement Range: 3 – 250 mm(0.120” to 10”) 2 – 150 mm(0.080” to 6”) 1 – 50 mm(0.040” to 2”)
Probe Sizes: 13 mm (0.5”) &
19 mm (0.75”) 13 mm (0.5”) 13 mm (0.5”)
Resolution 0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Coatings Range Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
Output RS232 or RS422 User Selectable
Pressure Tested 1000 metres (Multigauge 4100) & 4000m (Multigauge 4400)
Power 9Vdc – 30Vdc @ 150mA
Gauge Dimensions 145 mm x 72 mm (5.71” x 2.83”)
Gauge Weight Multigauge 4100 ROV: 465 g (16.40 ounces)
Multigauge 4400 ROV: 2500g (151.68 ounces)
Environmental RoHS and WEEE compliant
Operating Temperature -10°C to +50°C (14°F to 122°F)
Storage Temperature -10°C to +60°C (14°F to 140°F)
- Compatible with most ROV’s
- Depth rating to 1000 m (3280’) and 4000 m (13,123’)
- User selectable RS422 or RS232 output
- Intelligent Probe Recognition (IPR)
- Automatic Measurement Verification (AMVS)
- Ignores coatings up to 6mm thick using multiple echo and 20 mm with Coating Plus+ selected
- Rugged, durable and robust
- No zeroing required
- Easy to use Datalogging software
- Dedicated probe holder for correct presentation of the probe on flat and curved surfaces
Multigauge 4000 underwater thickness gauge, probe, spare membranes, membrane oil, 15mm test block, membrane key, spare ‘O’ rings, Molykote grease, nose cone release bar, manual, calibration certificate, carry case, communicator software, RS422 – RS232 converter, Impulse connector with fly lead, ROV test cable, power supply for use with test cable.
