Ultrasonic Level Sensors

Truflo Ultrasonic Level Sensors 2021-01-28T16:13:07+01:00

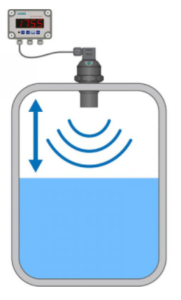

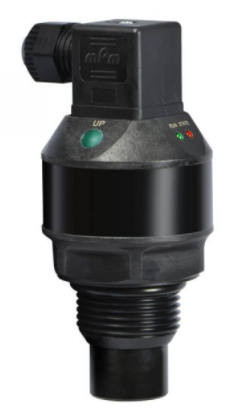

Ultrapro 500 ultrasonic level sensors

UltraPro 500 Ultrasonic Level Sensor

UltraPro 500 SERIES

Ultrasonic Continuous Level Transmitter

Corrosion Resistant PVDF
Narrow Beam Technology
Simple Programming

The UltraPro Ultrasonic level Sensors are 2-Wire loop powered sensors designed provide reliable accurate level measurement, flow monitoring, and volume of liquid in tanks, pits, sumps and open channels. The UltraPro series are very reliable and offer both 4-20mA analog output with HART® protocol or output RS-485 Modbus.

  • Push Button Programming
  • Narrow Beam Technology
  • General Purpose | XP Explosion Proof
  • 2 Wire (4-20mA) + (HART) Output Signal
  • Measuring Range: 4″-66 Ft
  • Accuracy: 0.2%
  • Accurate Non-Contact Continuous Level Measurement of liquids | Tanks | Sumps | Ranges up to 65 Feet
  • NO FOB or Computer Programs Required
  • Completely Corrosion Resistant
  • Industry’s Easiest to Program | 2 Clicks
  • Field Adjustable Set-Points
  • Automatic Temperature Compensation
  • Explosion Proof | Class 1 Div 1 Available
  • Analog Current output (4-20mA) with HART® protocol or RS-485 Modbus
  • On Tank | Sump Programming | Under 2 min

Key Applications: Chemical Storage Tanks, Waste Sumps, Bulk Storage, Tanker Truck, Day Tank, Process Tank, Neutralization Tank, Open Channel, chemical feed and clarifier applications. The UltraPro Series are designed to work with most types of remote instrumentation and provide enhanced functionality such as remote displays and remote monitoring solutions.

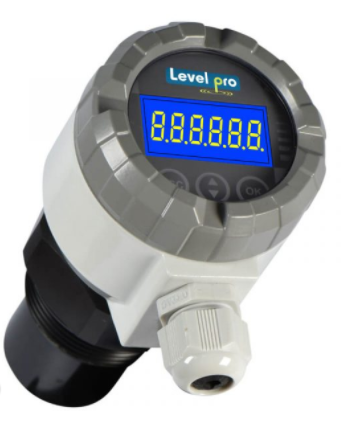

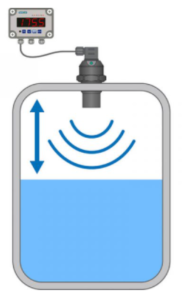

ultrapro 1000 ultrasonic level sensor

UltraPro 1000 Ultrasonic Level Sensor

ULTRAPRO 1000 SERIES

UltraSonic Continuous Level Sensor

Reliable
Non-Contact
Narrow Beam Technology

The UltraPro 1000 Ultrasonic level sensors are 2-Wire loop powered sensors designed to provide reliable, accurate level measurement, and
volume of liquids in tanks, pits, sumps and open channels. The UltraPro level transmitters are very reliable and offer both 4-20mA analog output with HART® protocol or RS-485 Modbus.

  • Local Visual Display Indication
  • PVDF Transducer
  • Narrow Beam Technology
  • General Purpose | XP Explosion Proof
  • 2 Wire (4-20mA) + (HART) Output Signal
  • Measuring Range: 4″-66 Ft
  • Accuracy: 0.2%
  • Accurate Non-Contact Continuous Level Measurement of liquids | Tanks | Sumps |Ranges up to 65 Feet
  • Quick View Display
  • Simple to Program | Easy Adjustment
  • False Echoes Elimination | (Self Teaching)
  • Automatic Temperature Compensation
  • Explosion Proof | Option Available
  • Analog Current output (4-20mA) with HART® protocol or output RS-485 Modbus
  • Bright Yellow LED Display
  • Lock-Out Feature

Key Applications include; Chemical Storage Tanks, Waste Sumps, Bulk Storage, Tanker Trucks, Day or Process Tanks and Chemical Feed. The UltraPro Series is designed to work with most types of remote instrumentation and provide enhanced functionality such as remote displays and remote monitoring solutions.

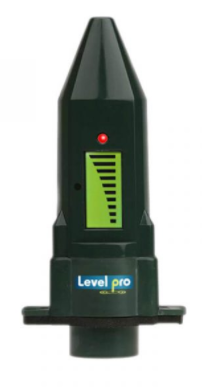

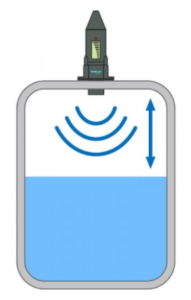

Viewsonic ultrasonic level sensor

ViewSonic Ultrasonic Level Sensor

VIEWSONIC SERIES

Battery Operated Ultrasonic Level Sensor

Battery Operated | 5 years
Digital LCD Display
All Plastic Design
Non-Contact Technology

  • Battery Operated
  • Approx 5 Years Life Expectancy
  • Digital LCD Display
  • All Plastic Design
  • NEMA 4X Plastic PP Enclosure
  • Non-Contact Technology
  • Double Walled Tanks
  • Wireless Communication to remote display over 200ft
  • Remote Applications / No Wiring Required
  • Low / High Level Display Indication
  • Quick Visual of Level | 10 Point Bar Graph
  • Simple to Install | Battery Operated. No Wiring Required
  • ±1% Accuracy
  • Wireless Communication to Remote Display – Range of 200 feet
  • Red LED Alarm Flashes when level falls within 8 Inches of Max Fill or Low Level
  • Remote Display simply plugs into 120VAC | No Wiring Required
  • Leak Detection PP Buoyancy Switch for Double Wall Tanks
  • 3 Versions | Sensor | Sensor + Leak Detection | Sensor + Leak Detection + Display
  • Comes Factory Programmed or Program in under 2 min in the field
  • All Plastic Corrosion Resistant Enclosure
  • Long lasting battery | Std ‘C’ cell Type > 5 Years
  • Chemical Storage
  • Chemical Sumps
  • Double-walled Tanks
  • Double Walled Tanks
  • Chemical Storage | Chemical Sumps
  • Remote Applications | No Wiring Required
  • Chemical Feed Day Tanks
  • Drums | Totes
