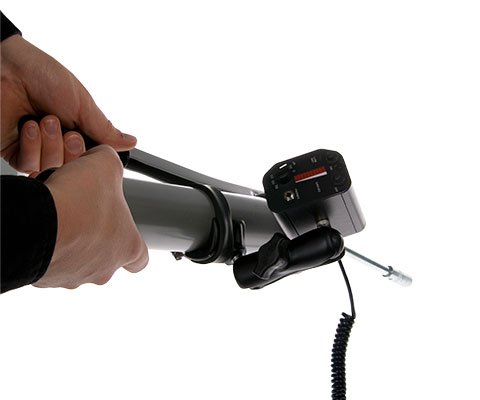

ULTRAPROBE 201 GREASE CADDY

-Avoid lubrication issues -Attaches to grease gun

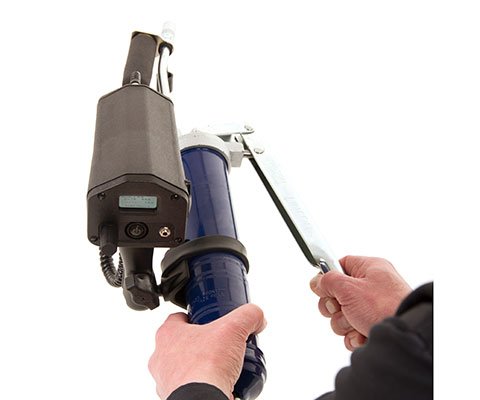

ULTRAPROBE 401 DIGITAL GREASE CADDY PRO

-Build a lubrication program

ULTRAPROBE 100​

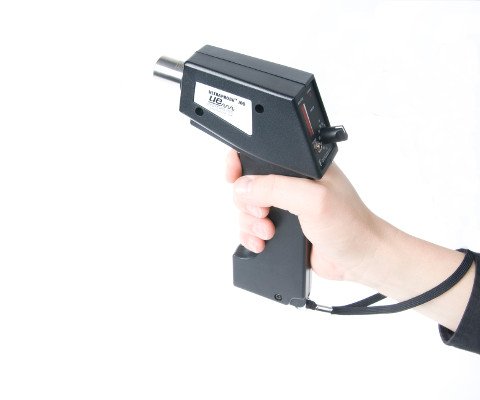

Ultraprobe100

The Ultraprobe 100 is a practical tool for any leak detection, steam trap inspection or troubleshooting program.

  • Easy to use
  • Cost-effective
  • Best Ultrasound instrument in entry level class
  • Ideal for point & shoot trouble shooting
  • 8-position sensitivity dial with decibel indications
  • LED bar graph display

Simple to use & cost effective! Find compressed air and faulty steam traps and prevent machinery failure.

Why Choose this instrument?

  • Easy to use
  • Best in class entry level Ultrasound instrument!
  • Comes with an universal interchangeable 9V battery
  • Ideal for point & shoot troubleshooting

Ultrasound Technology is the smart approach to inspection:

  • Ultrasound is very directional and localized
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Changes in Ultrasound provide early warning of potential problems
  • Ultrasound instruments are easy to use!

The Ultraprobe 100 features an 8-position sensitivity dial with decibel indications.

In addition, it features an LED bar graph display in which each LED equals approximately 3 dB for calculating decibel levels.

This instrument offers a unique listening experience for your troubleshooting needs.

Specifications overview Ultraprobe 100

Construction
Hand-held ABS pistol type ultrasonic processor, stainless steel sensor enclosures
Circuitry
SMD/Solid State hybrid heterodyne receiver
Frequency Response
Peak response: 36-44 kHz
Indicator
10 segment LED Bar Graph (red)
Sensitivity Selection
8 position precision attenuation
Power
9 Volt Alkaline Battery
Low Battery Voltage Indicator
LED
Headset
Weight: 0.07 kg (2.5 oz)
Operating Temperature Range: -30 °C to +75 °C (-22 °F to 167 °F)
Cable: 122cm (48”) shielded
Cable Pull: 9,07 kg (20 lbs.)
Frequency Range: 300 to 3000 Hz
Impedance: 150Ω
Molded Connector
Probes
Scanning Module (SCM-1), Stainless Steel Unisonic (single transducer) piezo electric crystal type;
Stethoscope/Contact Module (STM-1), Stainless Steel plug-in type with 14 cm (5.5”), Stainless Steel Waveguide;
Rubber Focusing Probe Shields stray ultrasonic signals and focuses detected signals
Transmitter
Patented warble tone transmission
Response time
Response time: 300 msec
Ambient Operating Temp. Range
0 – 50 °C (32 °F – 120 °F)
Relative Humidity
10-95% non-condensing at up to 30 °C (86 °F)
Storage Temperature
18 °C – 54 °C (0 °F – 130 °F)
Warranty
5 years (1-year parts/labor standard, – details available on request)
Dimensions
13.3 x 5 x 20.3 cm (5.25” x 2” x 8”)
Weight
0.3 kg (11 oz)
Carrying Case
Nylon Cordura soft carrying case

Standard Available Kits:

UP100KT: Ultraprobe 100 Complete Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, warble tone generator with battery recharger, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100SC: Ultraprobe 100 Stethoscope / Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100S: Ultraprobe 100 Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100C: Ultraprobe 100 Stethoscope Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

Premium Available Kits:

UP100KT-P: Ultraprobe 100 Complete Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, warble tone generator with battery recharger, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100SC-P: Ultraprobe 100 Stethoscope / Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100S-P: Ultraprobe 100 Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100C-P: Ultraprobe 100 Stethoscope Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

ULTRAPROBE 2000​ & 2000 ATEX

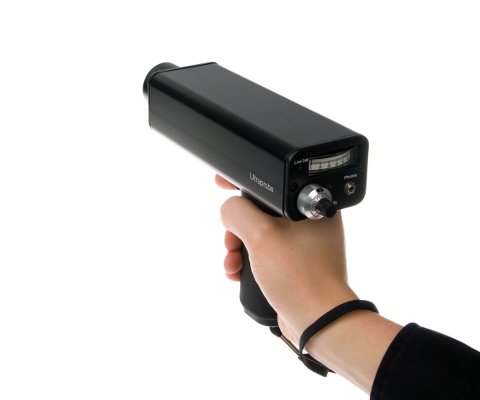

up2000

The industry’s most comprehensive analog ultrasound instrument.

  • Easy to use
  • Fast and accurate
  • Adjustable Frequency from 20 kHz to 100 kHz
  • Analogue meter with meter mode function
  • ATEX version available for hazardous environments
  • Ideal for point & shoot troubleshooting

Fast, accurate, and designed for ease of use, it often takes no more than 15 minutes to become competent in ultrasonic testing using the Ultraprobe 2000.

Find compressed air and faulty steam traps, prevent machinery failure & listen to electrical systems for discharges.

Why Choose this instrument?

  • Easy to use
  • Adjustable Frequency from 20 kHz  to 100 kHz
  • Accurate analogue meter with meter mode function
  • Ideally for point & shoot trouble shooting

Ultrasound Technology is the smart approach to inspection:

  • Ultrasound is very directional and localized
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Changes in Ultrasound provide early warning of potential problems
  • Ultrasound instruments are easy to use!

The Ultraprobe 2000 also enables data reporting through three modes:

  • Through auditory channels (via a headset that has been specifically selected for heavy duty industrial use)
  • Through a uniquely designed bi-modal analog meter
  • Through the ability to interface with vibration analyzers, & sound recording devices via the heterodyned output.

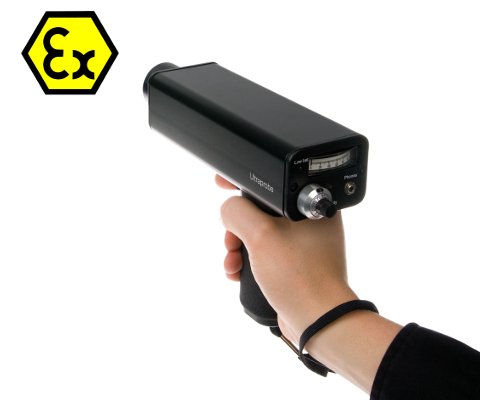

For use in hazardous environments, an ATEX or EX rated model is also available.

The Ultraprobe 2000 can be adapted to test practically any problem in operating equipment with such features as:

  • FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.
  • METER MODE selection adjusts the meter response from a real time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.

The Ultraprobe 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.

Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.

Specifications overview Ultraprobe 2000 & 2000 ATEX

Construction
Hand-held metered pistol type made with aluminum and ABS plastic
Circuitry
Solid State heterodyne receiver with temperature compensation
Frequency Response
Frequency detects ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable Frequencies are converted to 50 kHz to 3 kHz audio
Modules
Scanning Module:
Patented Trisonic plug-in type consisting of a phrased array of multiple transducers for airborne ultrasound. This module is shielded against RF interference.

Rubber Focusing Cone (flexible):
Slips over scanning module to concentrate conical directivity and to shield reception of stray ultrasound. Also fits over Stethoscope Module to shield against high ambient ultrasound while unit is at maximum sensitivity.

Stethoscope Module:
Plug-in type, insulated module with RF shielding; 4 1/2′ (11,4 cm) long stainless steel probe tip, conically shaped for uniform surface contact.

Stethoscope Extension Rod Set:
3-piece, segmented metal rods to increase stethoscope contact range for 20” (50,8 cm) and 31” (76.2 cm).
Transmitter
Patented warble tone transmission
Headset
Noise isolating type: Double headset wired monophonic. Impedance 16 ohms. Over 23 dB os noise attenuation. Meets or exceeds ANSI specifications and OSHA standards. For hard hat use.
Indicators
Ballastic output meter; linear calibration scale of 0-100 for logging relative measurements.
Meter is accurate 1% throughout entire scale. Low Level Battery LED indicator for main housing internal power supply.
Battery
Self contained NiMH rechargeable. RECHARGING SYSTEM: Standard 110V. Also availible in 220V.
Features
Frequency Tuning Adjustment Dial: 20-100 kHz with “fixed band” position for ultra-narrow frequency response.
Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments.
Optional Auxiliary Mode selection for chart recorder output: 0-50 mV.
Sensitivity Control – Precision 10-turn adjustment dial with numerically calibrated sensitivity increments for finite gain adjustment.
Spring loaded trigger switch
Overall Size
Complete kit in Zero Halliburton aluminum carrying case:
18.5 x 14.5 6.5 (47 x 37 x 17 cm)
Pistol unit: 2 lbs. (0.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)
Sensitivity
Detects 0.005 (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50ft. (15.24 m)
Threshold
1 x 10-2 std. cc/sec to 1 x 10-3std. cc/sec
Warranty
1-year parts/labor standard.
5 years with completed warranty registration card
Display Modes
Logarithmic and linear
* depends on leak configuration
** specify Ex rating if needed at time of order

UP2000LRM: Ultraprobe 2000 Long Range Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Long range module (LRM-2) for more accurate & extended range of detection for leak detection or electrical emissions

UP2000CFM: Ultraprobe 2000 Close Focus Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Close focus module (CFM-2) for low level leaks & vacuum leak detection

UP2000KT: Ultraprobe 2000 Complete Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method

UP2000SC: Ultraprobe 2000 Stethoscope / Scanner Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

UP2000S: Ultraprobe 2000 Scanner Kit

  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound

UP2000C: Ultraprobe 2000 Stethoscope Kit

  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

ULTRAPROBE 3000​

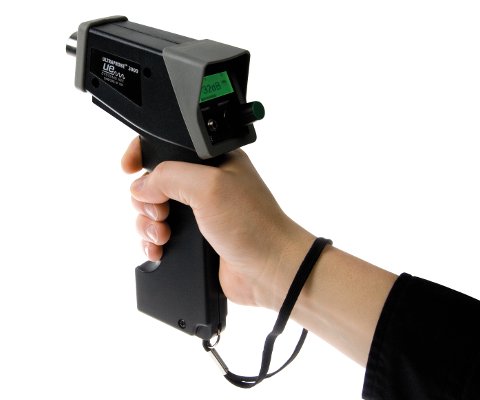

ultraprobe 3000

Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe 3000 is your tool for energy conservation.

  • Digital Instrument
  • Ideal for Energy Conservation Programs
  • Create Compressed Air Leak Surveys
  • Inspect Faulty Steam Traps
  • Digital data with 400 storage points
  • Export data to a Leak Report in Excel

Here is a digital Ultraprobe that’s versatile enough to cut energy waste and improve uptime while saving money, and improving the environment. The Ultraprobe 3000 is a digital ultrasonic inspection, information, storage, and retrieval system that comfortably fits in the palm of your hand.

  • Find your leaks & report cost per leak with DMS reporting
  • Inspect for faulty steam traps
  • Inspect electrical systems for discharge problems
  • Troubleshoot bearing & mechanical problems

Why Choose this instrument?

  • Easy to use
  • Accurate & repeatable digital data with 400 storage points
  • Ideally for point & shoot trouble shooting & energy conservation programs
  • Comes with licence free data management software (DMS) to create yearly cost per leak reports!

On board data logging utilizing Ultratrend DMS™ providing:

  • Download leak data via USB connection
  • Manage your data, add comments & pictures
  • Export leak data to a leak report in Excel

Features include:

  • Wide, dynamic sensitivity range
  • 400 memory locations on-board for your test data
  • “Spin and click” operations to customize inspection modes, store and view data and adjust instrument settings
  • Lightweight pistol unit
  • Easy-to-read display panel with calibrated decibel readout and a 16 segment bar graph. The display panel showcases sensitivity level, storage location number and battery level.
This instrument offers the perfect balance for identifying & reporting energy losses!

Specifications overview Ultraprobe 3000

Construction
Hand-held pistol type made with ABS plastic
Circuitry
Solid state analog and SMD digital circuitry with temperature compensation
Frequency Response
Frequency response: 35-45 kHz
Response Time
<10 ms
Display
128×64 Graphic LED with LED backlight
Memory
400 storage locations
Battery
Li Polymer Rechargeable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Available Probes
Scanning module and stethoscope (contact) module, long range module, RAS MT
Headset
Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
Indicators
dB, battery status and 16 segment bar graph, sensitivitysetting, record number
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton
aluminum carrying case
15” x 22” x 5” (38.1 x 55.9 x 11.43 cm)
Weight
Pistol Unit: 1 lbs. (0.45 kg)
Carrying Case: 11 lbs. (4.99 kg)
Warranty
1 year standard, 5 years with completed registration form

UP3000LRM: ULTRAPROBE 3000 LONG RANGE KIT

  • Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Long range module (LRM-3) for more accurate & extended range of detection for leak detection or electrical emissions

UP3000KT: ULTRAPROBE 3000 KIT

  • Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method

UP3000SL: ULTRAPROBE 3000 LEAK AUDITOR KIT

  • Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Long range module (LRM-3) for more accurate & extended range of detection for leak detection or electrical emissions

UP3000SC: ULTRAPROBE 3000 STETHOSCOPE / SCANNER KIT

  • Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

UP3000S: ULTRAPROBE 3000 SCANNER KIT

  • Scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound

UP3000C: ULTRAPROBE 3000 STETHOSCOPE KIT

  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

All Ultraprobe instruments are CE approved.

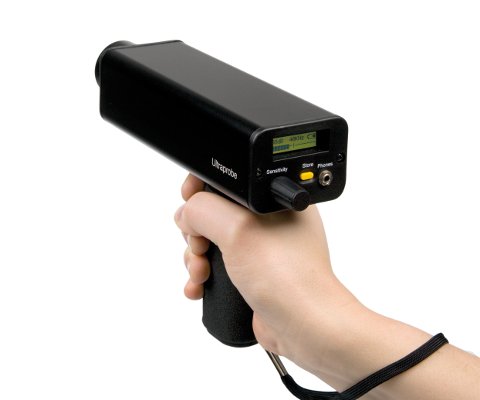

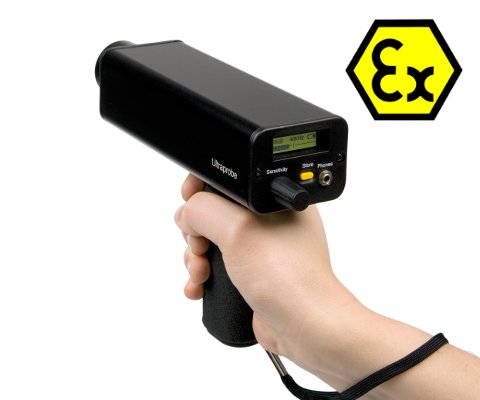

ULTRAPROBE 9000​ & 9000 ATEX

ultraprobe 9000

The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use.

  • Versatile digital instrument
  • Quick learning curve
  • Create bearing routes & collect data
  • Find leaks and inspect steam traps
  • Adjustable Frequency from 20 kHz to 100 kHz
  • Licence free data management software (DMS)

For 9000 ATEX –

  • Intrinsically Safe / ATEX
  • Concerned gasses: methane-propane-ethylene
  • ATEX I (dustproofing for mining industry):

This Ultraprobe will help move you through inspections quickly and easily -most operators learn within 15 minutes.

Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.

  • Establish a bearing route to identify early bearing failure & lubrication problems
  • Find your leaks & report cost per leak with DMS reporting
  • Inspect for faulty steam traps
  • Inspect electrical systems for discharge problems

Why Choose this instrument?

  • Easy to use
  • Adjustable Frequency from 20 kHz  to 100 kHz
  • Accurate & repeatable digital data
  • Ideally for point & shoot trouble shooting & data collection programs
  • Comes with license free data management software (DMS) to efficiently manage & report asset condition

For ATEX only –

  • For use in ATEX or EX zones without the need for exempt work permits
    • Class I, division 1, groups C & D
    • ATEX group IIB
    • CE approved
    • Concerned gasses: methane-propane-ethylene

      Intrinsically Safe / ATEX:

      FM & CSA approved intrinsically safe:

  • ATEX I (dustproofing for mining industry):

    ATEX group I

On board data logging utilizing Ultratrend DMS™ providing:

  • Manage routes
  • Up & download via USB connection
  • Multiple data views
  • History tables/spreadsheets
  • Trend charts
  • Export database & report documents to Excel

UE Systems unique Spin and Click™ technology makes sophisticated inspection simple and quick!

You’ll be amazed at how much you can accomplish with only 2 controls. By just “spinning” and “clicking” you can go through your inspection quick and easy:

  • Store data
  • Change frequency and sensitivity settings
  • Adjust basic operation modes
  • Selecting “Snap Shot”, “Peak Hold” & “Real Time” functions… and more!
The ATEX version offers the best combination of  trouble shooting & basic route based data collection in ATEX required zones.

Specifications overview Ultraprobe 9000 & 9000 ATEX

Construction
Hand-held pistol type made with coated aluminium and ABS plastic
Circuitry
Solid State SMD Digital Circuitry with temperature compensation
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
<10 ms
Display
16 x 2 LCD with LED Backlight
Memory
400 storage locations
Battery
NiMH Rechargable
Operating Temperature
32 °F to 122 °F (0 °C to 50 °C)
Outputs
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes
Trisonic Scanning Module and Stethoscope Module
Headset
Deluxe noise attenuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity
Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m)
Threshold
1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminum carrying case
18.5” x 14.5” x 6.5” (47 x 37 x 17 cm)
Pistol Unit: 2 lbs. (0.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)
Weight
(2 lbs.) 1 kg
Warranty
1-year parts/labor standard, 5 years with completed warranty registration card.
Display Modes
Real Time, Snap Shot, Peak Hold and Storage Display

Complete with everything you need for accurate route inspection, the Ultraprobe 9000 includes standard:

  • ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the “spin & click” controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
  • Deluxe industrial noise reducing headset
  • Data cable I/O to USB
  • Battery recharge kit for main housing and warble tone generator
  • Zero Halliburton aluminum carrying case
  • Comprehensive instruction manual
  • License & update free included DMS software

For further components per kit configuration:

UP9000LRM: ULTRAPROBE 9000 LONG RANGE KIT
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Long range module (LRM-9) for more accurate & extended range of detection for leak detection or electrical emissions
UP9000CFM: ULTRAPROBE 9000 CLOSE FOCUS KIT
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Close focus module (CFM-9) for low level leaks & vacuum leak detection
UP9000KT: ULTRAPROBE 9000 KIT
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
UP9000SC: ULTRAPROBE 9000 STETHOSCOPE / SCANNER KIT
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
UP9000S: ULTRAPROBE 9000 SCANNER KIT
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
UP9000C: ULTRAPROBE 9000 STETHOSCOPE KIT
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

All Ultraprobe instruments are CE approved.

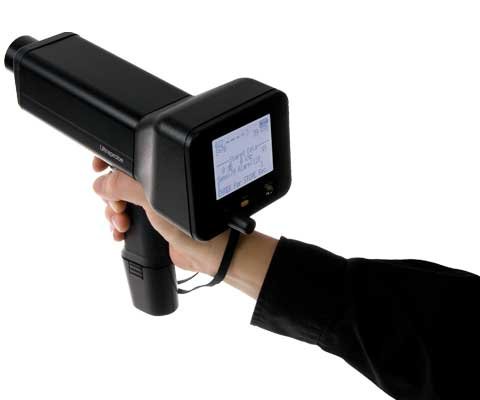

ULTRAPROBE 10,000

ultraprobe 1000

The ultimate digital ultrasonic inspection system for condition monitoring with sound recording for analysis.

  • On-board sound recording
  • Advanced data collection
  • Flexible reporting options
  • Manage routes with free DMS software
  • Diagnose electrical faults
  • Adjustable Frequency from 20 kHz to 100 kHz

The Ultraprobe 10,000 brings ultrasound inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.

Can be used for ALL ultrasound applications & programs

  • Setup bearing data collection routes, analyze & create lubrication routes
  • Inspect electrical systems for faults, analyze on the spot & report
  • Inspect for faulty steam traps
  • Find your leaks & report cost per leak with DMS reporting

Why Choose this instrument?

  • Enables all the possibilities to inspect, report & analyze with ultrasound
  • Accurate & repeatable digital data
  • Adjustable Frequency from 20 kHz  to 100 kHz
  • On-board sound recording
  • Ideally for troubleshooting, analyses & data collection programs
  • Comes with license free data management (DMS) & Spectrum analysis software to manage & report asset condition

On board data logging utilizing Ultratrend DMS™ providing:

  • Ability to manage routes
  • Upload & download via USB connection
  • Multiple data views
  • History tables/spread sheets
  • Trend charts
  • Export database & report documents to Excel

On board sound recording utilizing Spectralyzer™ software providing:

  • Analyze sound files in FFT & Time series
  • Create analysis reports
  • Overlay historical recordings for comparisons
  • Diagnose electrical faults
  • Bearing fault calculator for defect confirmation

The Ultraprobe 10,000 simplifies sound recording with user-friendly Spin and Click™ technology

The Ultraprobe® 10,000 features onboard Sound Recording with a push of a button. You’ll record a sound sample directly into the instrument and link it to one of 400 record files stored in the Ultraprobe!

Test the way you want with:

  • Specialized application screens
  • Adjustable on/off features
  • Connection to external devices
  • Flexible reporting options

Specifications overview Ultraprobe 10,000

Construction
Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Frequency Range
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
< 10 ms
Display
64 x 128 LCD with LED Backlight
Memory
4GB SD card
Battery
Lithium NiMH Rechargeable
Operating Temperature
32 °F to 122 °F (0°C to 50°C)
Outputs
Calibrated heterodyned output, decibel (dB), frequency, SD card output
Modules
Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS/RAM
Headset
Deluxe noise attentuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminium carrying case
21.5″ x 18.5″ x 8″ (55 x 47 x 20 cm)
Weight
Pistol Unit: 2,35 lbs (1.1 kg)
Complete carrying case: 19 lbs (8.6 kg)
Warranty
1 year parts/labor standard
5 years with returned, completed warranty registration
Display Modes
Real Time, Snap Shot, Peak Hold, Storage Display and Application Specific
* depends on leak configuration

The Ultraprobe 10,000 kit comes loaded with all the accessories you need for effective condition monitoring and includes standard:

  • ULTRAPROBE pistol grip housing. It consists of the display panel, “spin & click” controls, the headphone jack, SD card and module receptacle, on-board data logging & battery.
  • SD card reader
  • Deluxe industrial noise reducing headset
  • Battery recharge kit for main housing and warble tone generator
  • Spare battery
  • Zero Halliburton aluminum carrying case
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Remote access module (RAM) to connect remote sensors
  • Magnetic mount remote sensor (RAS-MT) with cable for consistency in testing bearings & oil cooled transformers
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Long range module with laser pointer (LRML-10) for more accurate & extended range of detection for leak detection or electrical emissions
  • Belt holster for easy carrying
  • Comprehensive instruction manual
  • License & update free included DMS software!
  • License & update free included Spectralyzer software!

Only one kit configuration is available.

All Ultraprobe instruments are CE approved.

ULTRAPROBE 15,000

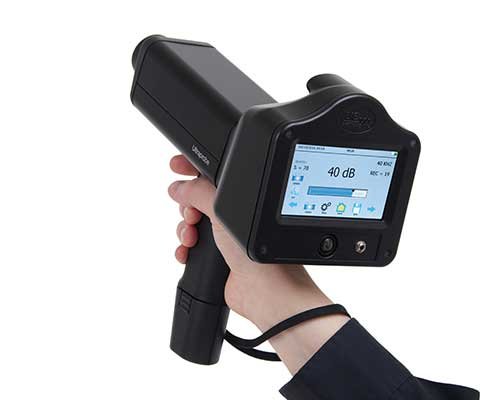

ultraprobe 15000

Use on-board spectrum analysis, record, take pictures, take temperature readings all with one touch!

  • Touch screen technology
  • Photo camera
  • Sound recording
  • Integrated strobe light
  • Laser pointer
  • Infrared thermometer

 Some of the unique Ultraprobe® 15,000 features:

  • Touch screen technology
  • Plan & review routes, images and sounds on-board
  • Multiple data screens: dB / temperature / spectrum analysis
  • Take temperature readings with infrared thermometer & adjust emissivity
  • Determine and store the RPM of a rotating asset with the fully integrated strobe light
  • Analyze conditions with the on-board spectrum analyzer
  • Photograph test points with on-board camera
  • Pinpoint locations with laser pointer
  • Review alarm groups & generate reports
  • Store data, sound recordings and images
  • Review historical record data

Use for ALL ultrasound applications & programs

  • Setup bearing data collection routes, analyze & create lubrication routes
  • Inspect electrical systems for faults, analyze on the spot & report
  • Inspect for faulty steam traps
  • Find your leaks & report cost per leak with DMS reporting

Why Choose this instrument?

  • Utilizes all the possibilities to inspect, report & analyze with ultrasound technology
  • Easy & quick to navigate with touch screen operation
  • On-board date review & spectrum analysis on the spot
  • Ideal for analysis & data collection programs
  • Comes with license free data management (DMS) & Spectrum analysis software to manage & report asset condition

On board data logging utilizing Ultratrend DMS™ providing:

  • Ability to manage routes
  • Upload & download via USB connection
  • Multiple data views
  • History tables/spread sheets
  • Trend charts
  • Export database & report documents to Excel

On board sound recording utilizing Spectralyzer™ software providing:

  • Ability to analyze sound files in FFT & Time series
  • Create analysis reports
  • Overlay historical recordings for comparisons
  • Diagnose electrical faults
  • Bearing fault calculator for defect confirmation

Touch screen operation

The Ultraprobe® 15,000 has a durable, tough & easy to clean touch screen operating system. The digital technology offers us the possibility to always be in 1 to 3 clicks to the point where you need to be, making this the most efficient ultrasound inspection tool in the world!

Specifications overview Ultraprobe® 15,000

Construction
Hand-held pistol type made with coated aluminum and ABS plastic.
Circuitry
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
< 10 ms
Display
QVGA Touch Screen – IR, Laser Pointer, Camera, Spectrum Ana
Sound Recording
WAV File Format
IR Temperature
-4°F to 932°F (-20 °C to 500 °C)
Camera
2.0 Mega Pixel
Memory
400 storage locations
Battery
Lithium NiMH Rechargeable
Operating Temperature
32 °F to 122 °F (0°C to 50°C)
Outputs
Calibrated heterodyned output, decibel (dB), frequency, SD card
Probes
Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS-MT
Headset
Deluxe noise attentuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminium carrying case
21.5″ x 18.5″ x 8″ (55 x 47 x 20 cm)
Weight
Pistol Unit: 2,35 lbs (1.1 kg)
Complete carrying case: 19 lbs (8.6 kg)
Warranty
1 year parts/labor standard.
5 years with completed warranty registration card
Display Modes
dB (main), IR, ABCD, Spectrum and Application Specific, Spectrum Analyzer (modes): Spectrum, Time Series & Dual Specif
Ultraprobe 15000 Kits
Meets and exceeds ASTM E1002-2005 requirements for Leak Detection
*depends on leak configuration

The Ultraprobe® 15,000 kit comes loaded with all the accessories you need for effective condition monitoring and includes standard:

  • ULTRAPROBE® pistol grip housing. It consists of the touch screen display panel, the headphone jack, SD card and module receptacle, integrated IR temperature sensor, digital camera, laserpointer, on-board spectralyzer & on-board data logging.
  • SD card reader
  • Deluxe industrial noise reducing headset
  • 2 batteries to power the Ultraprobe
  • Deskcharger & battery recharge kit for main housing and warble tone generator
  • Zero Halliburton aluminum carrying case
  • Warble tone generator with amplitude selection switch for the tone test method
  • Remote access module (RAM) to connect remote sensors
  • Magnetic mount remote sensor (RAS-MT) with cable for consistency in testing bearings & oil cooled transformers
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 78 cm (31 inch)
  • Long range module (LRM-15) for more accurate & extended range of detection for leak detection or electrical emissions
  • Comprehensive instruction manual
  • License & update free included DMS software!
  • License & update free included Spectralyzer software!

Only one kit configuration is available.

All Ultraprobe instruments are CE approved.

Ultraprobe 15,000 Plus IS Kit

ultraprobe 15000plus

Two Powerful Inspection Tools in One Package:

  • Ultraprobe 15000 and 9000ATEX
  • Test in hazardous areas
  • Improve asset availability
  • Reduce energy waste
  • Comes with licence free DMS software
  • ATEX I and II ratings (9000ATEX)

Two Powerful Inspection Tools in One Package:

  • The Ultraprobe 15,000 Touch for advanced in-field diagnostics.
  • The Ultraprobe 9000ATEX to test in hazardous areas!

Total Plant Reliability

With the Ultraprobe 15,000 Plus IS Package you’ll be able to monitor equipment performance, improve asset availability and reduce energy waste throughout your plant… Including hazardous areas that require intrinsically safe ratings.

EX Access? No Problem! Now you can test anywhere

Divide routes into required and non-required EX rated inspection zones.

Use the Ultraprobe 9000ATEX as a screening tool to test the hazardous areas and the Ultraprobe 15,000 for the rest of the plant. By testing with the 9000ATEX in rated areas, anomalies can be identified early enough so that appropriate decisions can be made as to next steps or corrective actions.

These two Ultrasonic inspection instruments will allow to inspect anywhere, for a total plant reliability.

Specifications overview Ultraprobe 15,000 Plus IS Kit

Ultraprobe® 15,000
Specifications
Construction
Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Frequency
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time
<10 ms
Display
QVGA Touch Screen – IR, Laser Pointer, Camera, Spectrum Ana
Sound Recording
WAV File Format
IR Temperature
-4°F to 932°F (-20 °C to 500 °C)
Camera
2.0 Mega Pixel
Memory
400 storage locations
Battery
Lithium NiMH Rechargeable
Operating Temperature
32 °F to 122 °F (0°C to 50°C)
Output(s)
Calibrated heterodyned output, decibel (dB), frequency, SD card
Probes
Trisonic Scanning Module and Stethoscope Module, Long Range Module and RAS-MT
Headset
Deluxe noise attentuating headphones for hard hat use
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Threshold
1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions
Complete kit in Zero Halliburton aluminium carrying case
21.5″ x 18.5″ x 8″ (55 x 47 x 20 cm).
Weight
Pistol Unit: 2,35 lbs (1.1 kg)
Complete carrying case: 19 lbs. (8.6 kg)
Warranty
1 year parts/labor standard.
5 years with completed warranty registration card
Display Modes
dB (main), IR, ABCD, Spectrum and Application Specific, Spectrum Analyzer (modes): Spectrum, Time Series & Dual Specif
Ultraprobe 15,000 Kits
Meets and exceeds ASTM E1002-2005 requirements for Leak Detection
*depends on leak configuration
Ultraprobe® 9000
Specifications
Construction:
Hand-held pistol type made with coated aluminum and ABS plastic
Circuitry:
Solid State SMD Digital Circuitry with temperature compensation
Frequency:
20 kHz to 100 kHz (tunable in 1 kHz increments)
Response time:
<10 ms
Display:
16 x 2 LCD with LED Backlight
Memory:
400 storage locations
Battery:
NiMH Rechargeable
Operating Temperature:
32 °F to 122 °F (0 °C to 50 °C)
Outputs:
Calibrated heterodyned output, decibel (dB) frequency, USB data output
Probes:
Trisonic Scanning Module and Stethoscope Module
Headset:
Deluxe noise attenuating headphones for hard hat use
Indicators:
dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity:
Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m)
Threshold:
1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions:
Complete kit in Zero Halliburton aluminum carrying case
18.5” x 14.5” x 6.5” (47 x 37 x 17 cm)
Pistol Unit: 2 lbs. (0.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)
Weight:
2 lbs. (1 kg)
Warranty:
1-year parts/labor standard, 5 years with completed warranty registration card.
Display Modes:
Real Time, Snap Shot, Peak Hold and Storage Display*depends on leak configuration
**specify Ex rating if needed at time of order

The Ultraprobe 15,000 IS Package includes:

1 ) Ultraprobe 15,000 Touch Digital Pistol Unit

This advanced ultrasonic instrument can perform on-board spectral analysis, record the sounds of test equipment, measure and record temperature, take photographs with flash, store and manage data. The Ultraprobe 15,000 utilizes touch screen technology. This unique feature uses Icons to easily control and maneuver around any of the Ultraprobe’s display screens. Touching the screen allows you to be able to view decibel level, temperature, control sensitivity, change frequency, view an FFT and record sounds and images.

2)  Ultraprobe 9000ATEX Digital Ultrasonic Inspection System

The Ultraprobe 9000 housing with Digital LCD Display and LED backlight FM Rated Intrinsically Safe: Class I, Division 1, Groups C & D.

3) Additional Modules / Accessories

• Tri-Sonic Scanning Module for locating airborne ultrasound (ATEX Rated)
• Stethoscope Module (contact type) for monitoring internally generated ultrasounds (ATEX Rated)
• Extension rod set to increase stethoscope contact range to 31 inches
• Warble Tone Generator
• Deluxe Noise Isolating Headset for use with hardhat
• LRM Long Range Module to increase detection range
• Spectralyzer Sound Analysis Software / Ultratrend Data Management Software
• Rubber Focusing Cone for narrowing reception field & for shielding ambient ultrasounds
• 2 Battery Rechargers with Spare Battery & External Recharging POD for Ultraprobe 15,000 unit
• RAS-MT Magnetic Sensor with BNC connection readable with the Ram Module
• RAM Adaptor enabling the Ultraprobe 15,000 to read RAS sensors
• SD Card to USB Reader (allows reading of SD to PC via USB port)
• Zero Halliburton Case

Ultraprobe 201 Grease Caddy

ultraprobe 201

Listen to the bearing, start lubricating and determine when to stop!

  • Lubricate based on condition
  • Prevent over lubrication
  • Built-in front-end lamp for dark areas
  • Magnetic transducer for ease of operation
  • Swivel base adjusts to odd angles
  • Attaches directly to grease gun

The Ultraprobe 201 Grease Caddy is uniquely designed to allow an operator to si­multaneously lubricate and monitor ultrasound levels to prevent over-lubrication.

As lubrication levels fall, friction levels rise, producing ultrasonic waves, which are very directional and localized. Easily attached to most standard grease guns, or worn in an optional belt holster, the Ultraprobe 201 Grease Caddy translates high frequency sounds into the audible range, where users will hear and recognize bearing sounds. The Ultraprobe 201 Grease Caddy focuses in on these sounds – even in the noisiest environment – and helps users identify when to stop lubricating.

The Ultraprobe 201 Grease Caddy will support your lubrication program resulting in:

  • Prolong the life of your equipment
  • Identify bearing issues by listening
  • Prevent over lubrication
  • Save on working hours & operational costs
  • Improve maintenance efficiency

Additional useful features of the Ultraprobe 201 Grease Caddy:

  • Easy to read LED’s provide visual indication of ultrasound amplitude
  • Built-in front-end lamp to illuminate dark areas
  • Swivel base adjusts to odd angles
  • Heavy duty headphones for high noise environments
  • Magnetically mounted transducer for ease of operation
  • Optional belt holster makes it even easier to carry

Specifications overview Ultraprobe 201 Grease Caddy

Housing
Attaches directly to the grease gun, gives visual and audible indication for proper lubrication
Construction
Aluminum housing
Dimensions
5.25 x 2.65 x 1.25 (LWH) (13.3 x 6.7 x 4.5 cm)
Operating Temperature
32°F to 140°F (0°C to 60°C)
Relative
10-95% non-condensing at up 86°F (30°C)
Humidity Circuity
SMD/Solid State heterodyne receiver
Transducer
Magnetically mounted piezoelectric transducer
Frequency Response
Peak response: centered aroun 38 kHz
Indicator
10 Segment LED Bar Graph (red) Bright white LED for illumination of test area
Sensitivty Selection
8 position precision attenuation
Power
Rechargeable nickel metal hydride
Power off
Time delay after five (5) minutes
Indicators
dB, Frequency, Battery Status and 16 Segment Bar Graph
Low Battery indicator
LED
Headset
Deluxe noise isolating headset for hard hat use Over 23 dB of noise attenuation Meets or exceeds ANSI Specifications and OSHA standards
Attachment
Universal: fits most commercially used cartridge grease guns
Weight
16 oz (0.45 kg)
Warranty
1-year parts/labor standard. 5 years with completed warranty registration card

Complete with everything you need to perform condition-based lubrication, the Ultraprobe 201 Grease Caddy includes standard:

  • Grease Caddy housing with LED display, headphone & battery charger receptacle, sensitivity dial, built in front end light & battery indicator.
  • Swivel base mounting kit to connect the Ultraprobe 201 to your grease gun
  • Battery charger
  • Deluxe industrial noise reducing headset
  • Belt holster for easy carrying
  • Comprehensive instruction manual

All Ultraprobe instruments are CE approved.

Ultraprobe 401 Digital Grease Caddy Pro

ultraprobe 401

Manage your lubrication program with the Ultraprobe 401 Digital Grease Caddy Pro and reduce bearing failure.

  • Optimize your lubrication program
  • Record all lubrication data
  • Create lubrication routes
  • Trend bearing condition
  • SD card compatible
  • Free DMS software for trending & routes

The Ultraprobe 401 Digital Grease Caddy provides all the data you’ll need to optimize your lubrication program. Whichever lubrication method you may use; time-based/preventive lubrication or condition based lubrication, you’ll find the Ultraprobe 401 system is essential to your program.

The perfect blending of advanced digital technology and data management software provides the ability to review your total lubrication practice, trend successes, note warning signs and have the ability to continually improve your program.

Here’s a small sampling of some of the important data you’ll be able to review:

  • Bearing housing lubrication capacity
  • Type of grease used
  • Baseline dB levels
  • dB levels before applying grease
  • dB levels after applying grease
  • amount of strokes the grease gun used to apply grease
  • cost of grease
  • cost analysis
  • trend bearing condition

Additional useful features of the Ultraprobe 401 Digital Grease Caddy:

  • Two Display Panels (dB & dB with intensity bar graph indicator)
  • Customized settings (with 18 setup menus)
  • Upload/download route data
  • Built-in front-end lamp to illuminate dark areas
  • Swivel base adjusts to odd angles
  • Heavy duty headphones for high noise environments
  • Magnetically mounted transducer with docking station (allows lubricating and testing in most environments)
  • The belt holster makes it even easier to carry

Specifications overview Ultraprobe 401 Digital Grease Caddy Pro

Housing
Attaches directly to the grease gun, gives visual and audible indication for proper lubrication
Construction
PC + ABS Plastic
Dimensions
7″ x 3.2″ x 3.0″ (17.8 x 8.1 x 7.6 cm)
Operating Temperature
32°F to 122°F (0°C to 50°C)
Humidity Circuity
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Transducer
Magnetically mounted piezoelectric transducer
Frequency Response
Peak response: centered around 30 kHz
Frequency range 20 kHz – 100 kHz
Indicator
dB, battery status and 16 segment bar graph
Memory
400 Storage locations
Output(s)
Calibrated heterodyned output, decibel (dB)
Response Time
<10 ms
Display
128 x 64 LCD with LED backlight
Power
Lithium Polymer rechargable
Headset
Deluxe noise isolating headset for hard hat use
Over 23 dB of noise attenuation
Meets or exceeds ANSI Specifications and OSHA standards
Attachment
Universal: fits most commercially used cartridge grease guns
Weight
1.25 lbs. (0.57 kg)
Warranty
5-year parts/labor standard

Complete with everything you need to perform condition-based lubrication, the Ultraprobe 401 Digital Grease Caddy Pro includes standard:

  • Grease Caddy housing with digital display, headphone & battery charger receptacle, sensitivity dial, built in front end light & battery indicator.
  • Swivel base mounting kit to connect the Ultraprobe 401 to your grease gun
  • Battery charger
  • Deluxe industrial noise reducing headset
  • Belt holster for easy carrying
  • Comprehensive instruction manual

As in the picture: Carry bag UP-401-CC & the grease gun are optional accessories

All Ultraprobe instruments are CE approved.
