UE Systems 4Cast – a 24/7 Ultrasonic Monitoring System

Save time, save your bearings and improve plant reliability: review bearing information from the convenience of your office. Monitor bearing condition 24/7 and tell 4Cast when to send a report.

The UE Systems Ultraprobe series has been linked to Predictive Maintenance and Energy Conservation for over thirty years. Each Ultraprobe is engineered to meet the unique demands of the many applications and programs in which it is used.



Analyse recorded sounds from your assets and accurately diagnose electrical & mechanical faults


ULTRAPROBES

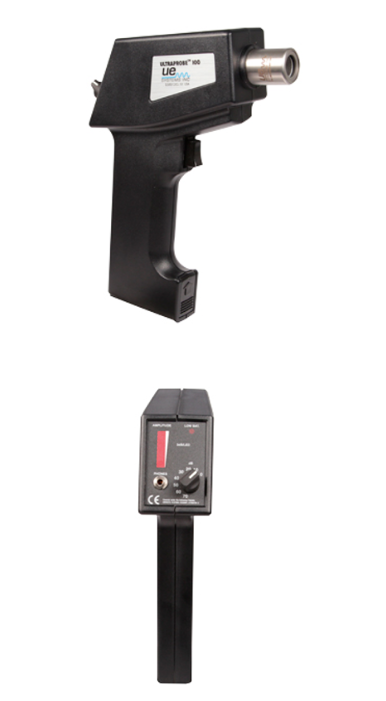

Ultraprobe 100

The Ultraprobe 100 is a practical tool for any leak detection, steam trap inspection or troubleshooting program.

Simple to use & cost effective! Find compressed air and faulty steam traps and prevent machinery failure.

Why Choose this instrument?

  • Easy to use
  • Best in class entry level Ultrasound instrument!
  • Comes with an universal interchangeable 9V battery
  • Ideal for point & shoot troubleshooting

Ultrasound Technology is the smart approach to inspection:

  • Ultrasound is very directional and localized
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Changes in Ultrasound provide early warning of potential problems
  • Ultrasound instruments are easy to use!

The Ultraprobe 100 features an 8-position sensitivity dial with decibel indications.

In addition, it features an LED bar graph display in which each LED equals approximately 3 dB for calculating decibel levels.

This instrument offers a unique listening experience for your troubleshooting needs.

Standard Available Kits:

UP100KT: Ultraprobe 100 Complete Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, warble tone generator with battery recharger, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100SC: Ultraprobe 100 Stethoscope / Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100S: Ultraprobe 100 Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

UP100C: Ultraprobe 100 Stethoscope Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, Lightweight Walkman Type Headphones, 9 volt alkaline battery (replaceable), cordura/nylon soft pack.

Premium Available Kits:

UP100KT-P: Ultraprobe 100 Complete Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, warble tone generator with battery recharger, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100SC-P: Ultraprobe 100 Stethoscope / Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, stethoscope module, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100S-P: Ultraprobe 100 Scanner Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing cone, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

UP100C-P: Ultraprobe 100 Stethoscope Kit

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, Deluxe noise attenuating headphones, 9 volt alkaline battery (replaceable), Zero Haliburton Aluminum Carrying Case.

Specifications overview Ultraprobe 100

Construction :                        Hand-held pistol type made with coated aluminium and ABS plastic
Circuitry:                                  Solid State SMD Digital Circuitry with temperature compensation
Frequency:                              20 kHz to 100 kHz (tunable in 1 kHz increments)
Response Time:                     <10 ms
Display:                                     16 x 2 LCD with LED Backlight
Memory:                                   400 storage locations
Battery:                                      NiMH Rechargable
Operating Temperature:          32 °F to 122 °F (0 °C to 50 °C)
Outputs:                                     Calibrated heterodyned output, decibel (dB) frequency, USB data output
Modules:                                    Trisonic Scanning Module and Stethoscope Module
Headset:                                     Deluxe noise attenuating headphones for hard hat use
Indicators:                                  dB, Frequency, Battery Status and 16 Segment Bar Graph
Sensitivity:                                  Detects 0.005” (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50 ft. (15.24 m)
Threshold:                                   1 x 10–2 std. cc/sec to 1 x 10–3 std. cc/sec
Dimensions:                                Complete kit in Zero Halliburton aluminum carrying case
                                                      18.5” x 14.5” x 6.5” (47 x 37 x 17 cm)
                                                       Pistol Unit: 2 lbs. (0.9 kg)
                                                       Complete carrying case: 14 lbs. (6.4 kg)
Weight:                                          2 lbs. (1 kg)
Warranty:                                       1-year parts/labor standard, 5 years with completed warranty registration card.
Display Modes:                             Real Time, Snap Shot, Peak Hold and Storage Display*depends on leak configuration
                                                       **specify Ex rating if needed at time of order

Tab Content

Optional Accessories

DHC-2HH: Deluxe headset for use with hardhat

For use in high noise environments. Acts as hearing protection device. Convenient for use with hard hats. Velcro loop head band adjusts for all sizes.

DHC-2BT-TM: Deluxe bluetooth headset with transmitter for use with hardhat

Wireless Bluetooth headset with transmitter for use in high noise environments. Acts as hearing protection device. Convenient for use with hard hats. Velcro loop head band adjusts for all sizes.

HTS-1: Holster set

One for the Ultraprobe pistol, module and headphones, the other for accessories. Keeps hands free for walking routes and climbing up and down ladders.

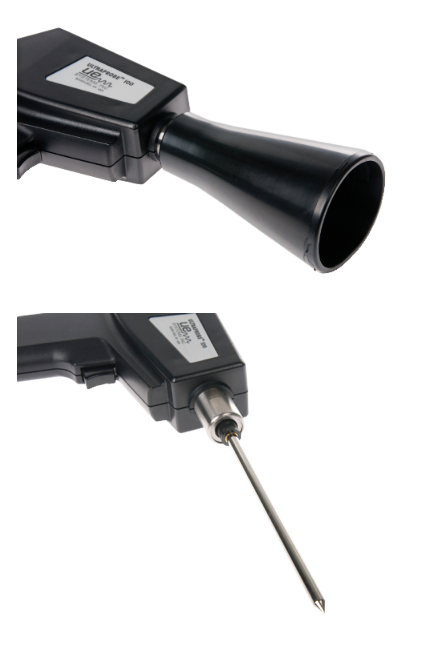

FSM-1: Flexible Scanning Module

Bend this probe to odd angles to locate sound sources in hard to reach areas.



LEAK DETECTION

READ MORE

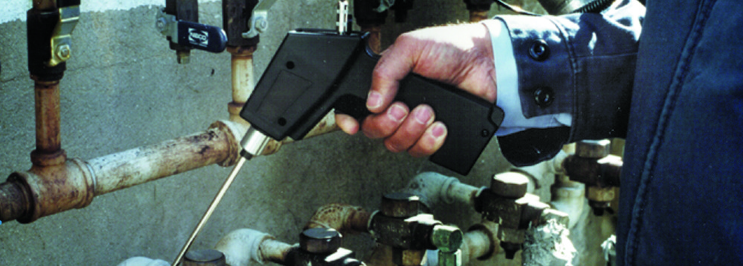

STEAM TRAP & VALVE INSPECTION

READ MORE

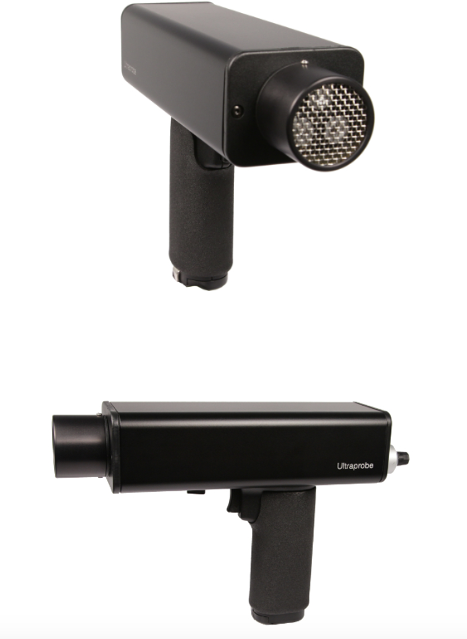

Ultraprobe 2000

Ultraprobe 2000

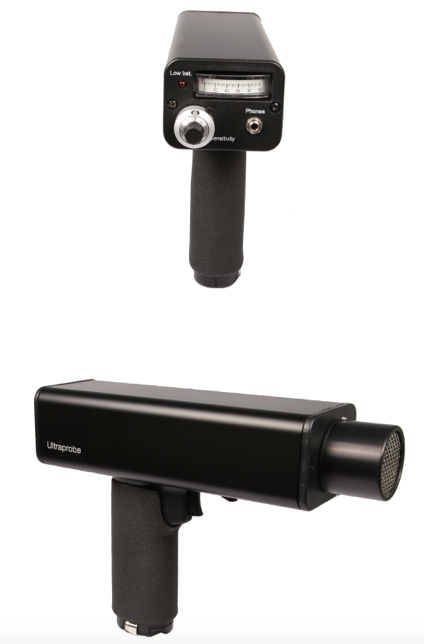

Durable analog Ultrasound detector with adjustable frequency for quick and accurate inspection

  • Easy to use
  • Fast and accurate
  • Adjustable Frequency from 20 kHz to 100 kHz
  • Analogue meter with meter mode function
  • ATEX version available for hazardous environments
  • Ideal for point & shoot troubleshooting

The industry’s most comprehensive analog ultrasound instrument.

Fast, accurate, and designed for ease of use, it often takes no more than 15 minutes to become competent in ultrasonic testing using the Ultraprobe 2000.

Find compressed air and faulty steam traps, prevent machinery failure & listen to electrical systems for discharges.

Why Choose this instrument?

  • Easy to use
  • Adjustable Frequency from 20 kHz  to 100 kHz
  • Accurate analogue meter with meter mode function
  • Ideally for point & shoot trouble shooting

Ultrasound Technology is the smart approach to inspection:

  • Ultrasound is very directional and localized
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Changes in Ultrasound provide early warning of potential problems
  • Ultrasound instruments are easy to use!

The Ultraprobe 2000 also enables data reporting through three modes:

  • Through auditory channels (via a headset that has been specifically selected for heavy duty industrial use)
  • Through a uniquely designed bi-modal analog meter
  • Through the ability to interface with vibration analyzers, & sound recording devices via the heterodyned output.

For use in hazardous environments, an ATEX or EX rated model is also available.

The Ultraprobe 2000 can be adapted to test practically any problem in operating equipment with such features as:

  • FREQUENCY TUNING enables a user to tune into problem “sounds” while minimizing background interference.
  • METER MODE selection adjusts the meter response from a real time response to an averaging response. This feature allows accurate adjustments for leak detection and for mechanical analysis.

The Ultraprobe 2000 can heterodyne ultrasound into audible range providing accurate sound reproduction.

Sensitive only to ultrasonic frequencies, the Ultraprobe 2000 will not respond to the low frequency noises often associated with most plant equipment. Therefore, the instrument can be effectively utilized in very loud factory environments.

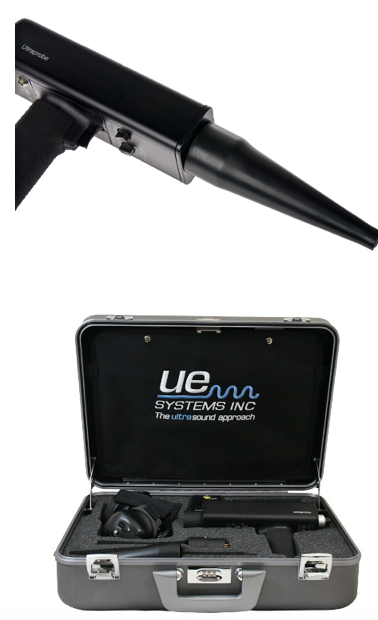

Complete with everything you need for accurate route inspection, the Ultraprobe® 2000 includes standard:

  • Ultraprobe housing with metered pistol grip, ballistic meter, frequency tuning dial, 10 turn potentiometer, numerically calibrated sensitivity dial with selection lock, bi-modal meter selector switch, battery, battery indicator light, battery recharger receptacle and head set receptacle.
  • Deluxe industrial noise reducing headset
  • Battery recharge kit for main housing and warble tone generator
  • Zero Halliburton aluminum carrying case

For further components per kit configuration:

UP2000LRM: Ultraprobe 2000 Long Range Kit
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Long range module (LRM-2) for more accurate & extended range of detection for leak detection or electrical emissions
UP2000CFM: Ultraprobe 2000 Close Focus Kit
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
  • Close focus module (CFM-2) for low level leaks & vacuum leak detection
UP2000KT: Ultraprobe 2000 Complete Kit
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
  • Warble tone generator with amplitude selection switch for use in tone test method
UP2000SC: Ultraprobe 2000 Stethoscope / Scanner Kit
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
UP2000S: Ultraprobe 2000 Scanner Kit
  • Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
  • Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
UP2000C: Ultraprobe 2000 Stethoscope Kit
  • Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
  • Extension rod set to increase stethoscope contact range to 31 inch (78 cm)



Specifications overview Ultraprobe 2000

Construction
Hand-held metered pistol type made with aluminum and ABS plastic

Circuitry
Solid State heterodyne receiver with temperature compensation

Frequency Response
Frequency detects ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable Frequencies are converted to 50 kHz to 3 kHz audio
Modules



Scanning Module:
Patented Trisonic plug-in type consisting of a phrased array of multiple transducers for airborne ultrasound. This module is shielded against RF interference.

Rubber Focusing Cone (flexible):
Slips over scanning module to concentrate conical directivity and to shield reception of stray ultrasound. Also fits over Stethoscope Module to shield against high ambient ultrasound while unit is at maximum sensitivity.

Stethoscope Module:
Plug-in type, insulated module with RF shielding; 4 1/2′ (11,4 cm) long stainless steel probe tip, conically shaped for uniform surface contact.

Stethoscope Extension Rod Set:
3-piece, segmented metal rods to increase stethoscope contact range for 20” (50,8 cm) and 31” (76.2 cm).


Transmitter
Patented warble tone transmission

Headset
Noise isolating type: Double headset wired monophonic. Impedance 16 ohms. Over 23 dB os noise attenuation. Meets or exceeds ANSI specifications and OSHA standards. For hard hat use.

Indicators
Ballastic output meter; linear calibration scale of 0-100 for logging relative measurements.
Meter is accurate 1% throughout entire scale. Low Level Battery LED indicator for main housing internal power supply.

Battery
Self contained NiMH rechargeable. RECHARGING SYSTEM: Standard 110V. Also availible in 220V.

Features
Frequency Tuning Adjustment Dial: 20-100 kHz with “fixed band” position for ultra-narrow frequency response.
Bi-Modal Meter Switch for logarithmic and linear meter scale adjustments.
Optional Auxiliary Mode selection for chart recorder output: 0-50 mV.
Sensitivity Control – Precision 10-turn adjustment dial with numerically calibrated sensitivity increments for finite gain adjustment.
Spring loaded trigger switch

Overall Size
Complete kit in Zero Halliburton aluminum carrying case:
18.5 x 14.5 6.5 (47 x 37 x 17 cm)
Pistol unit: 2 lbs. (0.9 kg)
Complete carrying case: 14 lbs. (6.4 kg)

Sensitivity
Detects 0.005 (0.127 mm) diameter leak @ 5 psi (0.34 bar) at a distance of 50ft. (15.24 m)

Threshold
1 x 10-2 std. cc/sec to 1 x 10-3std. cc/sec

Warranty
1-year parts/labor standard.
5 years with completed warranty registration card

Display Modes
Logarithmic and linear
* depends on leak configuration
** specify Ex rating if needed at time of order


Optional Accessories

DHC-2BT-TM: Deluxe bluetooth headset with transmitter for use with hardhat

Wireless Bluetooth headset with transmitter for use in high noise environments. Acts as hearing protection device. Convenient for use with hard hats. Velcro loop head band adjusts for all sizes.

RAS-MT: Remote Access Sensor

Magnetically mounted contact probe with cable for testing consistency and for hard to reach test points. Must be used in combination with a Remote Access Module (RAM).

UTP: Ultrasonic Test Point

Ultrasonic test point complete with epoxy kit. Magnetic RAS or Stethoscope targets for permanent installation insuring consistent test point target.

RAS: Remote Access Sensor

Permanent mounted sensor with a 25 ft. (7,5m) cable, readable by the Ultraprobe.

HTS-2: Holster set

One for the Ultraprobe pistol, module and headphones, the other for accessories. Keeps hands free for walking routes and climbing up and down ladders.

LRM-2: Long Range Module

Detect Ultrasound at a greater distance with higher pinpoint accuracy. This parabolic shaped receiver helps to bring distant leaks or electrical emissions close-up.

CFM-2: Close Focus Module

A specialized module to help locate LOW LEVEL pressure and vacuum leaks.

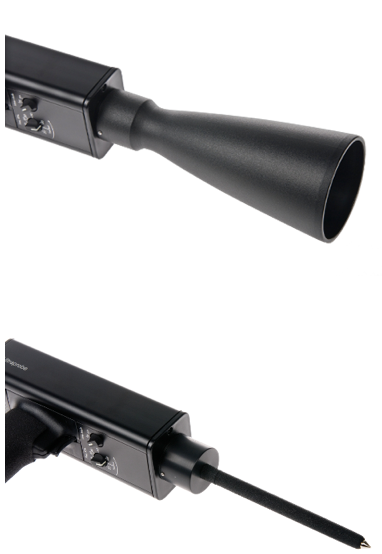

TFSM-2: Telescoping & Flexible Scanning Module with RAM (Remote Access Module)

Extend and Bend this probe to odd angles to locate sound sources in hard to reach areas. (up to 80 inch / 2 m.)

FSM-2: Flexible Scanning Module

Bend this probe to odd angles to locate sound sources in hard to reach areas.

EXC-2: Module Interconnection Cable

Shielded cable, works with either module for hard to reach areas. Standard length: 7.8 foot (2.4 m). Lengths up to 50 feet (15 m.) are available.

RAM-2: Remote Access Module

Adaptor enabling Ultraprobe 2000 to read RAS Sensors.





LEAK DETECTION

READ MORE

STEAM TRAP & VALVE INSPECTION

READ MORE

BEARING INSPECTION

READ MORE

Find leaks quickly & easily and report the energy savings.

Monitor bearing conditions, avoid over lubrication and detect early failures.

Detect arcing and corona discharge from electrical apparatus and cables.

Avoid high costs due to steam traps leakage and failure.
