Float and Thermostatic Steam Traps

FLOAT AND THERMOSTATIC Steam traps

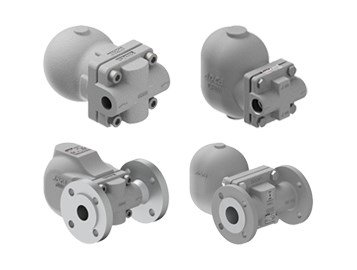

FLT14I

The FLT14I float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

Sub Models

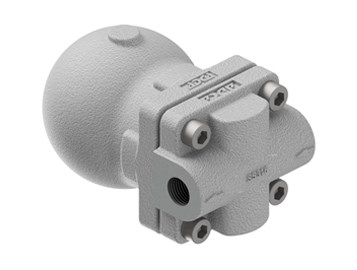

FLT14I | DN 15 - 20
FLT14I | DN 15 – 20

MATERIAL

Stainless steel

SIZES

1/2” to 3/4” – DN 15 to DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 495 kg/h

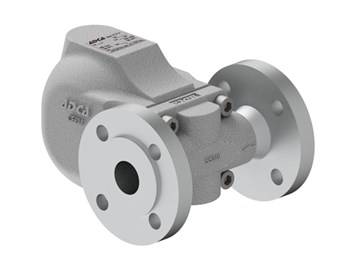

FLT14I | DN25
FLT14I | DN25

MATERIAL

Stainless steel

SIZES

1” – DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 630 kg/h

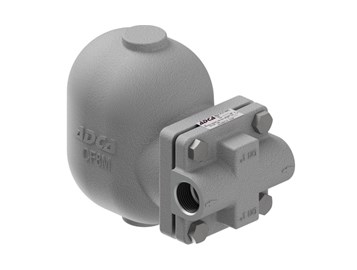

FLT14I | DN 25 HC
FLT14I | DN 25 HC

MATERIAL

Stainless steel

SIZES

1”HC – DN 25HC

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 2400 kg/h

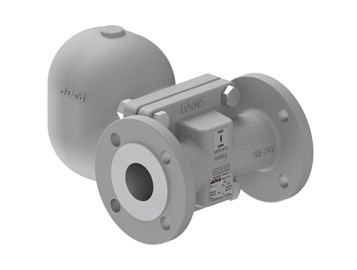

FLT14I | DN 40 - 50
FLT14I | DN 40 – 50

MATERIAL

Stainless steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h

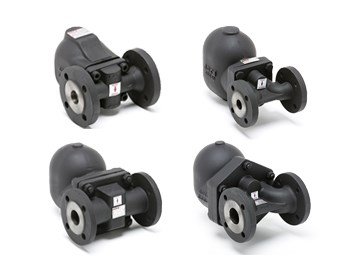

Valsteam - flt17-flt32.series

FLT17

FLT17 float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

Sub Models

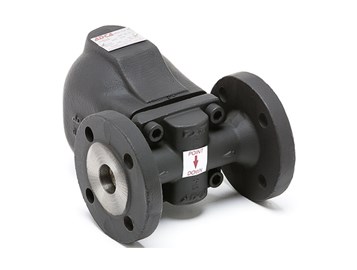

FLT17 | DN 15 -25
FLT17 | DN 15 -25

MATERIAL

SG iron

SIZES

1/2” to 1” – DN 15 to DN 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 630 kg/h

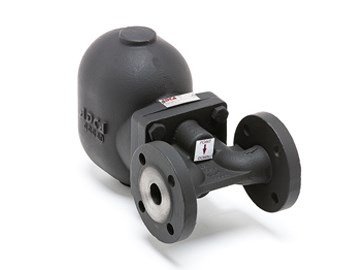

FLT17 | DN 25HC
FLT17 | DN 25HC

MATERIAL

SG iron

SIZES

1”HC – DN 25HC

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 2400 kg/h

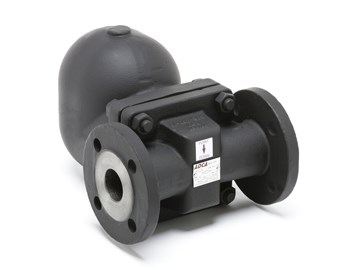

FLT17 | DN 40 - 50
FLT17 | DN 40 – 50

MATERIAL

SG iron

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h

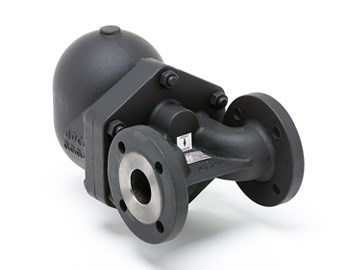

FLT17 | DN 50HC
FLT17 | DN 50HC

MATERIAL

SG iron

SIZES

2”HC – DN 50HC

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 22500 kg/h

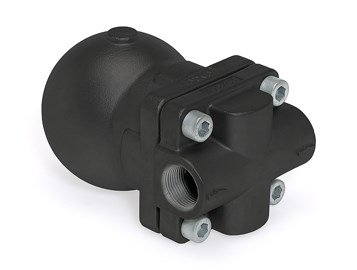

valsteam flt17lc

FLT17LC

The FLT17LC float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential

MATERIAL

SG iron

SIZES

1/2” to 3/4” – DN 15 to DN 20

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 495 kg/h

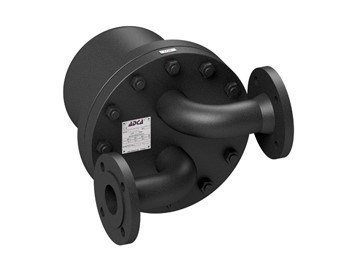

Valsteam - flt22ss

FLT22

The FLT22 float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

MATERIAL

Carbon steel or stainless steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 16 or PN 40
Flanged ASME Class 150 or 300

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 12050 kg/h

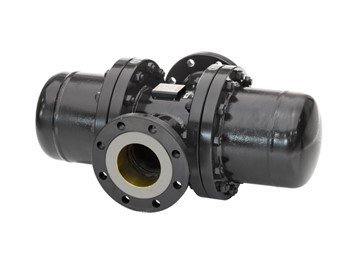

Valsteam flt22stw

FLT22/TW

The FLT22/TW float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

MATERIAL

Carbon steel or stainless steel

SIZES

3” to 4” – DN 80 to DN 100

CONNECTIONS

Flanged EN PN 16 or PN 25
Flanged ASME Class 150 or 300

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 45000 kg/h

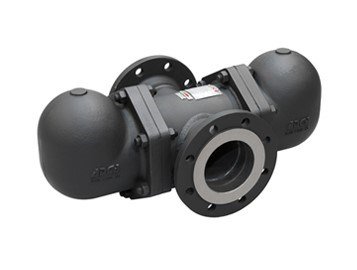

valsteam flt22gtw

FLT22G/TW

FLT22G/TW float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

MATERIAL

Carbon steel body and covers
Carbon steel body with SG iron covers

SIZES

3” to 4” – DN 80 to DN 100

CONNECTIONS

Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

198 ºC

FLOW RATE CAPACITY

Up to 45000 kg/h

Valsteam - flt17-flt32.series

FLT32

The FLT32 float and thermostatic (integral air vent) steam trap series are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

Sub Models

FLT32 | DN 15 - 25
FLT32 | DN 15 – 25

MATERIAL

Carbon steel

SIZES

1/2” to 1” – DN 15 to 25

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 630 kg/h

FLT32 | DN 25HC
FLT32 | DN 25HC

MATERIAL

Carbon steel

SIZES

1”HC – DN 25HC

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 2400 kg/h

FLT32 | DN 40 - 50
FLT32 | DN 40 – 50

MATERIAL

Carbon steel

SIZES

11/2” to 2” – DN 40 to DN 50

CONNECTIONS

Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 7300 kg/h

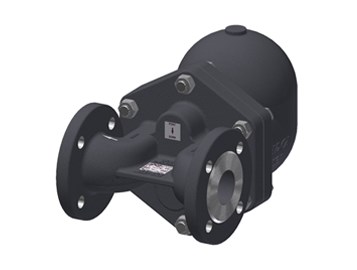

FLT32 | DN 50HC
FLT32 | DN 50HC

MATERIAL

Carbon steel

SIZES

2”HC – DN 50HC

CONNECTIONS

Flanged EN PN 40
Flanged ASME Class 150 or 300

MAX. OPERATING PRESSURE

32 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 22500 kg/h

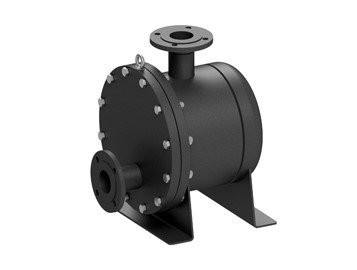

valsteam flt65

FLT50S-FLT65S

The FLT50S / 65S float and thermostatic steam traps series (with integral air vent) are designed for all types of low and high-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential.

MATERIAL

Carbon steel

SIZES

FLT50S – DN 50 to DN 65
FLT65S – DN 65 to DN 100

CONNECTIONS

Flanged EN PN 16
Flanged ASME Class 150

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 50000 kg/h

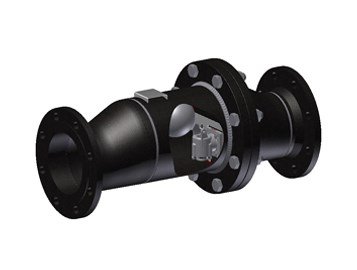

valsteam.flt120

FLT120S

The FLT120S float and orifice steam trap series is designed for all types of low-pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential. Specially designed for the sugar industry where extremely high flow rates are involved.

MATERIAL

Carbon steel

SIZES

DN 150

CONNECTIONS

Flanged EN PN 16 or ASME Class 150

MAX. OPERATING PRESSURE

4 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 130000 kg/h

valsteam flt150

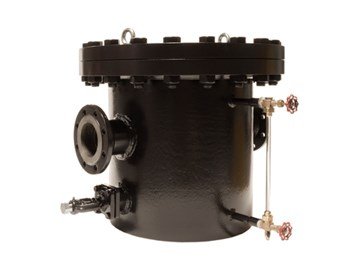

FLT150S

The FLT150S float and thermostatic (integral air vent) steam trap series are designed for all types of low and medium pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential. Specially designed for sugar and alcohol refineries and where extremely high flow rates are involved.

MATERIAL

Carbon steel

SIZES

4” to 6” – DN 100 to DN 150

CONNECTIONS

Flanged EN PN 6, PN 10 or PN 16
Flanged ASME Class 150 or 300

MAX. OPERATING PRESSURE

12 bar

MAX. OPERATING TEMPERATURE

250 ºC

FLOW RATE CAPACITY

Up to 172900 kg/h
