AUTOMATIC AIR AND GAS VENTS FOR LIQUID SYSTEMS

pipeline ancillaries - automatic air and gas vents for liquid systems

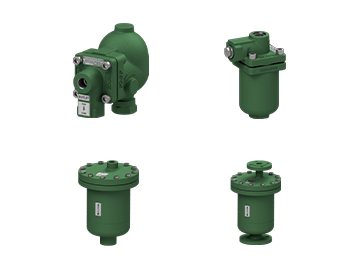

CARBON STEEL

AE line of air and gas vents for liquid systems, manufactured in carbon steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Sub Models

AE35.2
AE35.2

The AE35.2 range of automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

1” x 1/2” and 1” x 1”
DN 25 x 15 and DN 25 x 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

AE37.2
AE37.2

The AE37.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy.
They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

11/2” x 1” and 2” x 1”
DN 40 x DN 25 and DN 50 x DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

AE39.2
AE39.2

The AE39.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy.
They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Carbon steel

SIZES

21/2” x 11/2” and 3” x 11/2”
DN 65 x DN 40 and DN 80 x DN 40

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

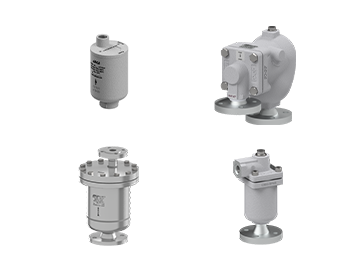

ae-series-ss
STAINLESS STEEL

AE line of air and gas vents for liquid systems, manufactured in stainless steel and designed for all types of low and high-pressure applications. The available models cover a wide range of flow rates, in various sizes, with different connections and multiple options to choose from.

Sub Models

AE16SS
AE16SS

The AE16SS all stainless steel air eliminator removes air from HVAC systems and is also suitable for non-corrosive and/or dangerous liquids compatible with the construction, providing that their specific weight is no less than 0,75 kg/dm³. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

14 bar

MAX. OPERATING TEMPERATURE

150 ºC

AE30SS
AE30SS

The AE30SS all stainless steel sealed body air eliminator remove air from hot and superheated water systems and is also suitable for all liquids compatible with the construction, providing that their specific weight is not less than 0,75 kg/L. This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.

MATERIAL

Stainless steel

SIZES

1/2” and 3/4”

CONNECTIONS

Inlet 1/2” or 3/4” vertical
Outlet 1/2” vertical
Female threaded ISO 7 Rp or NPT

MAX. OPERATING PRESSURE

30 bar

MAX. OPERATING TEMPERATURE

300 ºC

AE45.2
AE45.2

The AE45.2 range of automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy. They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

1” x 1/2” and 1” x 1”
DN 25 x 15 and DN 25 x 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

AE47.2
AE47.2

The AE47.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy.
They are capable of handling significant loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

11/2” x 1” and 2” x 1”
DN 40 x DN 25 and DN 50 x DN 25

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar

AE49.2
AE49.2

The AE49.2 range of high capacity automatic vents are designed to remove air or gases from water and or other liquid systems, without requiring any external source of energy.
They are capable of handling high loads during start-up while still being able to discharge smaller loads in continuous modulating operation with one single orifice.

MATERIAL

Stainless steel

SIZES

21/2” x 11/2” and 3” x 11/2”
DN 65 x DN 40 and DN 80 x DN 40

CONNECTIONS

Female threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
Socket weld (SW) ASME 16.11

MAX. OPERATING PRESSURE

32 bar
