CHECK VALVES

rt25-jpg

RT25

The RT25 all stainless steel disc check valves have a compact design and were specially designed for use with steam and hot condensate.

MATERIAL

Stainless steel

SIZES

1/4” to 2”

CONNECTIONS

Threaded ISO 7 Rp

MAX. OPERATING PRESSURE

21 bar

MAX. OPERATING TEMPERATURE

220 ºC

rd40-series-202102221402415800

RD40

The RD40 all stainless steel disc check valve has a compact design and was specially designed for use with steam and hot condensate.

Sub Models

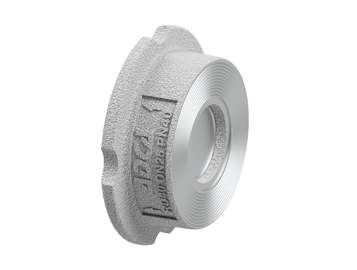

RD40 | DN15 - 100
RD40 | DN15 – 100

SIZES

DN 125 to DN 200

CONNECTIONS

Sandwiched between flanges as per EN or ASME

MAX. ALLOWABLE PRESSURE

40 bar

MAX. RELATED TEMPERATURE

300 ºC

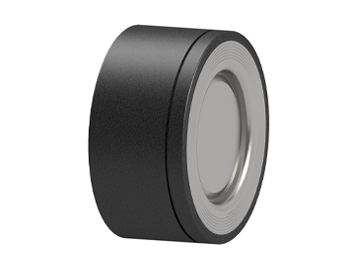

RD40 | DN 125 - 200
RD40 | DN 125 – 200

MATERIAL

Stainless steel

SIZES

DN 15 to DN 100

CONNECTIONS

Sandwiched between flanges as per EN or ASME

MAX. ALLOWABLE PRESSURE

40 bar

MAX. RELATED TEMPERATURE

300 ºC
