BALL VALVES

m3hp-series

M3HP

M3HP three piece body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.

Sub Models

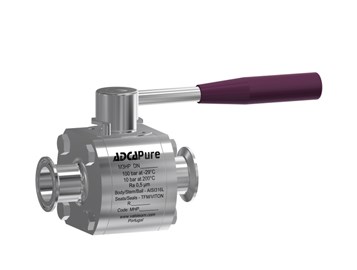

M3HP | DN10 - 50 DIN
M3HP | DN10 – 50 DIN

MATERIAL

Stainless steel

SIZES

DN 10 to DN 50

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100

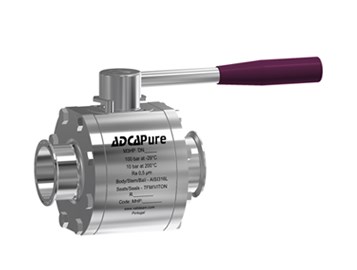

M3HP | DN 65 - 100 DIN
M3HP | DN 65 – 100 DIN

MATERIAL

Stainless steel

SIZES

DN 65 to DN 100

MAX. OPERATING TEMPERATURE

220 ºC

M3HP | DN15 - 50 BPE
M3HP | DN15 – 50 BPE

MATERIAL

Stainless steel

SIZES

DN 15 to DN 50

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100

m3h-series

M3H

M3H three pieces body ball valves are isolating valves designed for use with clean steam, condensate and other gases and liquids used in high purity and aseptic processes. The valve is not designed as a control valve and should only be used as an isolating valve, fully open or fully closed. The product is mainly designed for the pharmaceutical, biotech, semiconductor, cosmetics, fine chemical, food and beverage industries.

Sub Models

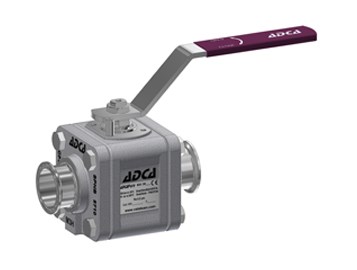

M3H | DN 10 – 50 DIN
M3H | DN 10 – 50 DIN

MATERIAL

Stainless steel

SIZES

DN 10 to DN 50

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100

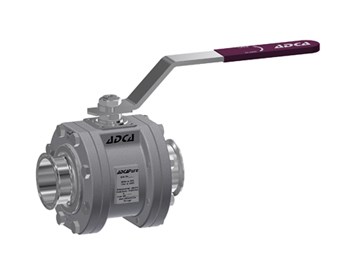

M3H | DN 65 – 100 DIN
M3H | DN 65 – 100 DIN

MATERIAL

Stainless steel

SIZES

DN 65 to DN 100

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 40

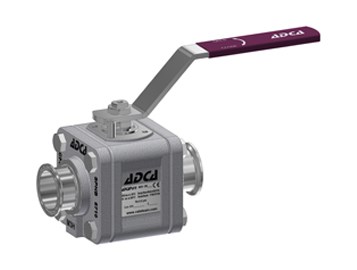

M3H | 1/2” – 2” ASME BPE
M3H | 1/2” – 2” ASME BPE

MATERIAL

Stainless steel

SIZES

1/2” to 2”

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 100

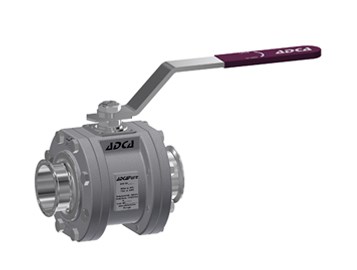

M3H | 21/2” – 4” ASME BPE
M3H | 21/2” – 4” ASME BPE

MATERIAL

Stainless steel

SIZES

21/2” to 4”

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 40

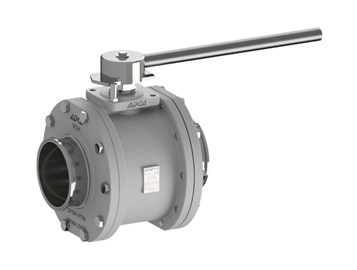

M3H | 6” ASME BPE
M3H | 6” ASME BPE

MATERIAL

Stainless steel

SIZES

6”

MAX. OPERATING TEMPERATURE

220 ºC

RATING

PN 16
